Eaton Tripp Lite PDUMV20HV-36 3.7kW Single-Phase Local Metered PDU 16 C13/4 C19 Outlets | 10 ft Cord | Vertical 0U RackSKU: PDUMV20HV-36
Key Features- Capacity: 3.7kW Single-Phase, 16A, 208/230V
- Outlets: 16 x C13 and 4 x C19 208/230V outlets
- Metering: Digital ammeter for real-time local load monitoring
-

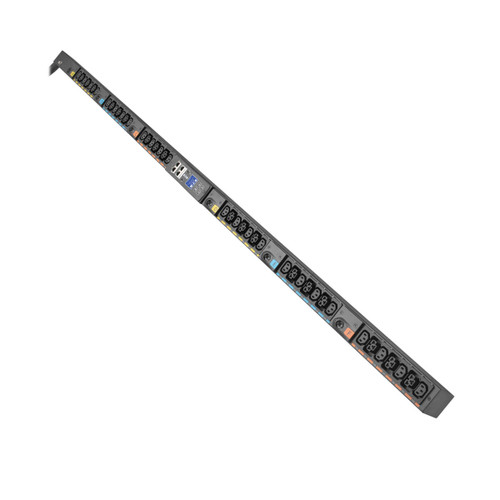

Eaton Tripp Lite EVMA4609X-06 17.3kW 42-Outlet Managed PDU 0U VerticalSKU: EVMA4609X-06
Key Features- Capacity: 17.3 kW / 48A, 3-Phase 208V with 460P9W input
- Outlets: 42 total - (24) C13 and (18) C39 universal combo outlets
- Management: Embedded Gigabit Network Module with zero-trust cybersecurity and outlet-level switching
-
Eaton Tripp Lite PDUMVR30HVNETLX 5.5kW Switched PDU | (20) C13 & (4) C19 Outlets | 0U Vertical RackmountSKU: PDUMVR30HVNETLX
Key Features- Capacity: 5.5kW Single-Phase Switched PDU with 24A continuous input
- Outlets: 24 switched outlets - (20) C13 & (4) C19 across 2 load banks
- Management: LX Platform HTML5 interface with SNMP, SSH, and outlet-level monitoring
-

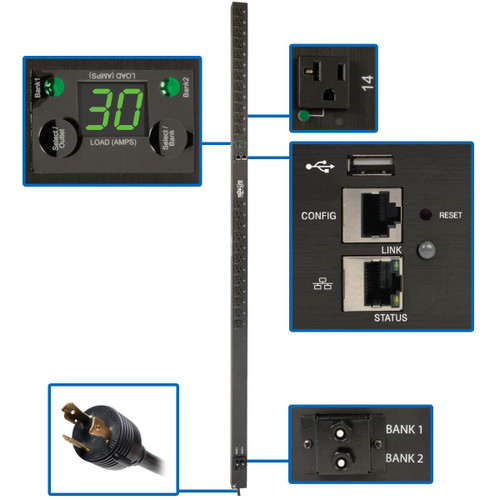

Eaton Tripp Lite PDUMVR30NETLX 2.9kW Switched PDU | 24 NEMA 5-15/20R Outlets, L5-30P Plug, 0U VerticalSKU: PDUMVR30NETLX
Key Features- Capacity: 2.9kW / 24A single-phase with NEMA L5-30P input
- Outlets: 24 switched NEMA 5-15/20R outlets with individual outlet monitoring
- Remote Management: LX Platform WEBCARDLX with SNMP, SSH, and HTML5 web interface
-
Eaton Tripp Lite PDUMNH30HVAT2 5.8kW ATS | Monitored Single-Phase PDU | 16 C13, 2 C19, 1 L6-30R Outlets | 10 ft L6-30P Cords | 2U Rack-MountSKU: PDUMNH30HVAT2
Key Features- Capacity: 5.8 kW / 30A Single-Phase ATS Monitored PDU
- Outlets: (16) C13, (2) C19, (1) L6-30R with dual L6-30P inputs
- Monitoring: Built-in HTML5 LX Platform with SNMP, remote access, and digital load metering
-
Key Features- Capacity: 8.6 kW, 3-Phase 208V with NEMA L15-30P input and 10 ft. cord
- Outlets: 42 total - (24) C13 and (18) C39 universal outlets with 6 color-coded load banks
- Management: Hot-swappable Gigabit Network Module with zero-trust security, cascade up to 40 PDUs
-
Key Features- Outlets: 8 individually switched C13 outlets with plug-lock retention sleeves
- Management: Pre-installed WEBCARDLX with PADM20, IP Auto Probe, SNMP, SSH, HTML5
- Input: 16A 208/230V C20 inlet, 2.44m cord with L6-20P adapter, 1U rackmount
-
Eaton Tripp Lite PDUMH15HVATNET 2.4kW Switched Automatic Transfer Switch PDU | 10 C13 Outputs, 1U Rack-MountSKU: PDUMH15HVATNET
Key Features- Capacity: 2.4kW Switched ATS PDU with dual C14 inlets for A/B power redundancy
- Outlets: 10 C13 outputs (8 individually switched, 2 unswitched), 200-240V
- Management: Pre-installed WEBCARDLX with PADM20 for remote monitoring & auto reboot
-
Key Features- Capacity: 2.4kW / 20A Single-Phase Power Distribution
- Outlets: 13 NEMA 5-15/20R Outlets (12 Rear, 1 Front)
- Mounting: 1U Rack, 0U Vertical, Wall-Mount, and Undercounter Options
-
Eaton Tripp Lite PDUMNH20HVAT1 3.8kW ATS Monitored PDU | 8 C13, 2 C19 Outlets | Dual C20 Inlets | 12 ft Cords | 1U Rack-MountSKU: PDUMNH20HVAT1
Key Features- ATS Redundancy: Switches from primary to secondary power source in <7 ms
- Outlets: 8 x C13 + 2 x C19, 200-240V | Dual C20 Inlets, 12 ft cords
- Remote Monitoring: Built-in WEBCARDLX with SNMP, SSH, HTML5 web interface
-
Eaton Tripp Lite PDUMH20-ISO 2.03kW 16A Local Metered PDU | 14 Outlets | 3840 Joules | 1U Rack-MountSKU: PDUMH20-ISO
Key Features- Protection: ISOBAR 3840-joule surge suppression with EMI/RFI filtering up to 80 dB
- Outlets: 12 NEMA 5-20R (rear) + 2 NEMA 5-15R (front), 16A total capacity
- Monitoring: Built-in 2-digit digital current meter with 3 diagnostic LEDs
-
Key Features- Protection: 3840-joule ISOBAR surge protection per load bank with 60,000A surge current rating
- Outlets: 12 NEMA 5-15/20R outlets in two separately breakered load banks
- Input: NEMA L5-30P, 2.88 kW / 24A max, 15 ft. cord, TAA compliant
-
Key Features- Capacity: 1.9kW / 120V / 16A single-phase monitored rack PDU
- Outlets: 24 NEMA 5-15/20R outlets with cord retention brackets
- Connectivity: Built-in LX Platform interface with SNMP, SSH, HTTP/S, Telnet support
-
Eaton Tripp Lite PDUMH15ATS 1.44kW 8-Outlet ATS PDU | 1U Rack-Mount Local Metered TAASKU: PDUMH15ATS
Key Features- Outlets: 8 NEMA 5-15R 120V outlets with dual 5-15P inputs for redundant power sources
- ATS: Automatic transfer switching in 2-7 ms with real-time digital load metering
- Mounting: 1U rack-mount, TAA compliant, 1.44kW capacity at 120V
-
Key Features- Capacity: 5.8 kW at 240V with NEMA L6-30P input and 15 ft. cord
- Outlets: 16 C13 and 4 C19 outlets with built-in circuit breaker protection
- Mounting: 1U rack-mount with optional 0U vertical, wall, and undercounter support
-
Eaton Tripp Lite PDUMH20AT 1.9kW Automatic Transfer Switch PDU | 16 5-15/20R Outlets | 1U Rack-MountSKU: PDUMH20AT
Key Features- Transfer: Auto-Transfer Switch with 2-7 ms switchover between primary and secondary power sources
- Outlets: 16 NEMA 5-15/20R outlets (8 front / 8 rear) with 1.92kW / 16A total capacity
- Monitoring: Digital display reports total output current in amps; optional SNMP card slot for remote management
-
Eaton Tripp Lite PDU15NETLX 1.4kW 2-Outlet Switched Mini PDU 0USKU: PDU15NETLX
Key Features- Capacity: 1.44kW / 12A single-phase power with 2 individually switched NEMA 5-15R outlets
- Remote Management: Pre-installed WEBCARDLX with PADM20 firmware, SNMP V1/V2c/V3 support
- Mounting: 0U vertical rack, wall-mount, or under-counter with included brackets
-
Eaton Tripp Lite PDU3MV6L2130 8.6kW 3-Phase Local Metered PDU 48-Outlet 0U VerticalSKU: PDU3MV6L2130
Key Features- Capacity: 8.6kW 3-Phase 208/120V with NEMA L21-30P 30A input and 6 ft. cord
- Outlets: 48 total - 36 C13 (208V), 6 C19 (208V), 6 NEMA 5-15/20R (120V)
- Metering: 3 built-in digital current meters report per-phase input current (L1, L2, L3)
-

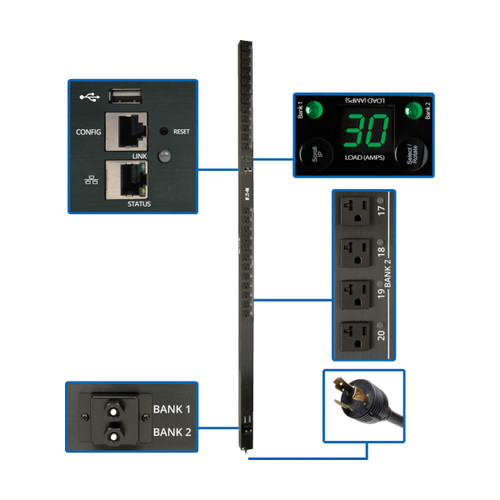

Eaton Tripp Lite PDUMV30NETLX 2.9kW 24-Outlet Switched 0U Vertical PDUSKU: PDUMV30NETLX
Key Features- Capacity: 2.9kW / 24A Single-Phase Switched PDU with NEMA L5-30P input
- Outlets: 24 individually controllable NEMA 5-15/20R outlets in 2 breakered banks
- Remote Management: Pre-installed WEBCARDLX with SNMP, SSH, HTML5 web interface
-
Key Features- Outlets: 36 NEMA 5-15R 100-127V outlets with 12A total capacity
- Metering: Built-in digital ammeter for real-time local load monitoring
- Form Factor: 72 in. 0U vertical rack PDU with 15 ft. input cord
-
Key Features- Capacity: 1.8kW / 15A Single-Phase 120V Power Distribution
- Outlets: 13 NEMA 5-15R Outlets (12 Rear, 1 Front) with 15A Breaker
- Mounting: 1U Rack-Mount with 0U, Wall-Mount & Undercounter Options
-
Eaton Tripp Lite PDUMNV20HVLX 3.7kW Monitored PDU | 20 C13, 4 C19 Outlets | C20 Input | 0U VerticalSKU: PDUMNV20HVLX
Key Features- Output: 3.7kW (230V) / 3.3kW (208V) with 24 outlets - 20 C13 and 4 C19
- Monitoring: Built-in LX Platform interface with SNMP, SSH, Telnet, and HTML5 web access
- Form Factor: 0U vertical rackmount, 1778 mm height, TAA-compliant
-
Eaton Tripp Lite PDUMNH20 1.9kW Monitored PDU | 8 NEMA 5-15/20R Outlets | 1U Rack-MountSKU: PDUMNH20
Key Features- Capacity: 1.92kW / 16A Monitored Single-Phase PDU
- Outlets: 8 NEMA 5-15/20R with Cord Retention Brackets
- Management: Pre-Installed WEBCARDLX with PADM20 Remote Monitoring via SNMP, SSH & HTML5
-
Eaton Tripp Lite PDUMH15NET2LX 1.4kW Switched PDU 1U Rack-Mount | 8x 5-15R OutletsSKU: PDUMH15NET2LX
Key Features- Capacity: 1.4kW / 12A single-phase switched 1U rack PDU
- Outlets: 8 individually switched NEMA 5-15R outlets with per-outlet LED indicators
- Remote Management: Built-in WEBCARDLX with SNMP, SSH, Telnet, and HTML5 web interface
-

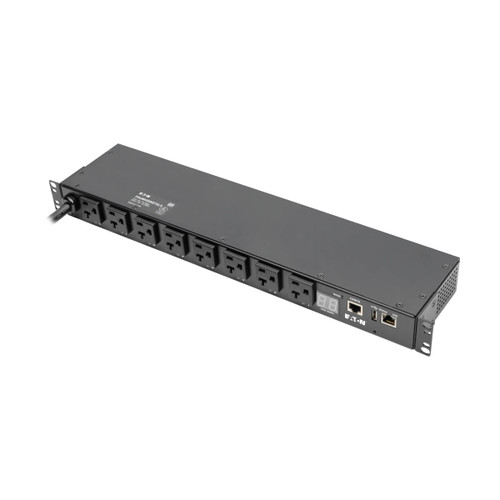

Eaton Tripp Lite PDUMH20NET2LX 1.9kW Switched PDU | 8 NEMA 5-15/20R Outlets | L5-20P/5-20P Input | 1U Rack-Mount | TAASKU: PDUMH20NET2LX
Key Features- Capacity: 1.9kW / 16A single-phase switched 1U rack PDU
- Outlets: 8 individually switched NEMA 5-15/20R outlets with cord retention bracket
- Remote Management: Built-in LX Platform (WEBCARDLX) with SNMP, SSH, HTTPS, IPv4/IPv6
-
Key Features- Capacity: 1.44kW / 12A single-phase with 16 individually switched NEMA 5-15R outlets
- Remote Management: Built-in LX Platform SNMP/HTML5 interface, no Java required
- Mounting: 0U vertical rackmount with toolless installation in 19-in. EIA racks
-
Key Features- Capacity: 2kW / 16A Single-Phase Local Metered PDU
- Outlets: 14 NEMA 5-15/20R with 20A circuit breaker protection
- Form Factor: 0U Vertical 36 in. rackmount with digital current meter
-

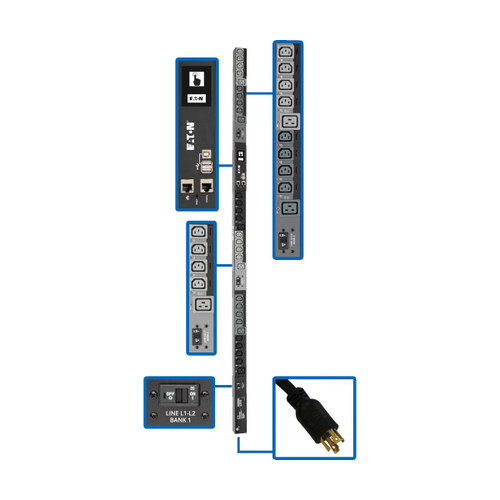

Eaton Tripp Lite PDU3EVSR10L2130 10kW 30-Outlet Switched 0U Vertical PDUSKU: PDU3EVSR10L2130
Key Features- Capacity: 10kW 200-240V 3-Phase with NEMA L21-30P input and 3.05 m (10 ft) cord
- Outlets: 30 individually switched outlets - 24 C13, 6 C19 across 3 breakered load banks
- Connectivity: Pre-installed GbE WEBCARDLX with SNMP, SSH, IPv4/IPv6, and touchscreen LCD
-

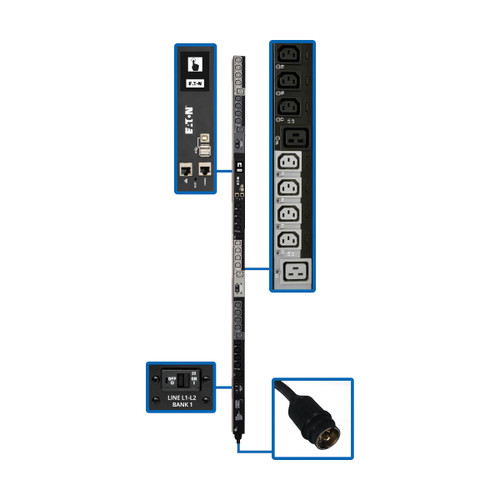

Eaton Tripp Lite PDU3EVS6L2130 10kW Switched 30-Outlet 0U PDUSKU: PDU3EVS6L2130
Key Features- Capacity: 10kW Switched 3-Phase PDU, 24A max input (NEMA L21-30P)
- Outlets: 24 x C13 and 6 x C19 individually controllable 200-240V outlets
- Management: Built-in GbE WEBCARDLX with PADM20, touchscreen LCD, SNMP V1/V2c/V3
-
Eaton Tripp Lite PDUMNV30HV2LX 5.5kW Monitored PDU | 42 Outlets (36 C13/6 C19) 0U Rack-MountSKU: PDUMNV30HV2LX
Key Features- Capacity: 5.5kW Single-Phase Monitored PDU, 208/230V, NEMA L6-30P input
- Outlets: 42 total (36 C13 / 6 C19) with plug-lock insert sleeves, two 20A breakered banks
- Remote Management: Built-in LX Platform WEBCARDLX, SNMP/SSH/HTTPS, 10/100 Mbps
More about Power Distribution Units (PDUs)
Power Distribution Units (PDUs) are rack-mounted electrical devices designed to distribute power efficiently and safely to multiple IT components within data centers, server rooms, and network racks. They come in various types, from basic models that simply extend power to advanced intelligent PDUs that provide real-time monitoring, remote switching, load balancing, and energy usage analytics. PDUs help ensure stable uptime, prevent circuit overloads, and improve overall power management efficiency in critical IT infrastructure.
