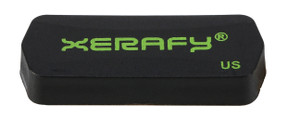

Xerafy Nano-iN RFID Tag (866-868 MHz) [Clearance]

The Nano-iN offers an outstanding performance-to-size ratio of up to eight feet while flush mounted in a metal object. The Nano-iN can be a potential substitute to RFID-on-metal tags even in applications where read distance cannot be compromised such as IT assets and metallic equipment. The flush mounting of RFID tags makes them visible to RFID-based inventory systems immediately upon installation, and the RFID tags are protected from the possibility of damage. RFID tags are normally applied externally post-manufacture, where they are susceptible to damage from normal wear and tear and can be targets for deliberate tampering. Embed-in-metal technology is the most reliable solution to prevent tampering as there is no way to remove the RFID tag without destroying the product. Xerafy’s iN Series tags enable embedding RFID during the production process, reducing application costs and allowing manufacturers and end-users the opportunity to differentiate and deliver greater value.

Data Sheet  Xerafy Nano-iN RFID Tag (866-868 MHz) [Clearance]


Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

The Nano-iN RFID tag is embeddable as a part of the Xerafy iN line. However, it offers a 13 foot read range which places it in the middle of the iN range in terms of read performance and form factor.

Features

  • Can be embedded in metallic assets.
  • High performance-to-size ratio.
  • Superior identification when embedded.
  • Reliable in the harshest environments.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
ETSI (866-868 MHz)
IC Type:
Alien Higgs 3
Memory:
EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content:
Unique, randomized number
Max Read Distance:
Up to 4 m (13 ft)
Applicable Surface Materials:
Metallic and non-metallic surfaces
MECHANICAL:

Tag Form Factor:
Hard tag
Tag Materials:
Ceramic
Attachment Method:
Epoxy, embedded
Dimensions:
25 x 9 x 3 mm (0.98 x 0.35 x 0.12 in)
Weight:
3.6 g
ENVIRONMENT:

Operating Temperature:
-30° to +85°C (-22° to +185°F)
