Xerafy Slim Trak RFID Tag

SKU:
X0320-GL001-H3

Xerafy

UPC:
683615998995
ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
Global (860-930 MHz)
IC Type:
Alien Higgs-3
Memory:
EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content:
Not guaranteed unique
Max Read Distance - On Metal:
Up to 2 m (6.5 ft)
Max Read Distance - Off Metal:
Up to 1.5 m (4.9 ft)
Applicable Surface Materials:
Metal and non-metallic substrates
MECHANICAL:

Tag Form Factor:
Hard tag
Tag Materials:
RF4
Attachment Method:
Adhesive, epoxy
Dimensions:
56.5 x 5.95 x 1.3 mm (2.22 x 0.234 x 0.05 in)
Weight:
1 g
ENVIRONMENT:

Operating Temperature:
-40° to +85°C (-40° to +185°F)
fbt-product:
2432
fbt-product:
3475
fbt-product:
1665
atc-product:
1313
atc-product:
1609
atc-product:
2958
atc-product:
1596
View Full Description

Contact Us for Availability

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

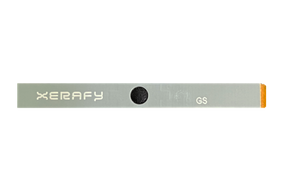

Xerafy Slim Trak RFID Tag

Xerafy Slim Trak is a versatile, low cost, global frequency RFID metal tag that is ideal for asset management requiring a slim profile tag and high performance reads for indoor and outdoor use. Designed with source tagging in mind, the Slim Trak can be integrated into the recess of metal assets without compromising on performance.

Data Sheet  Xerafy Slim Trak RFID Tag


Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

The Slim Trak is a low profile and low cost option for applications such as IT tracking, military asset and weapon tracking, and tool tracking.


Features

  • Global frequency.
  • Performs reliably on-off metal and embedded.
  • Low profile and cost effective.
  • Withstands high temperatures, impacts, and vibration.
ELECTRICAL:
Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency: Global (860-930 MHz)
IC Type: Alien Higgs-3
Memory: EPC 96 bits, User 512 bits, TID 64 bits
EPC Memory Content: Not guaranteed unique
Max Read Distance - On Metal: Up to 2 m (6.5 ft)
Max Read Distance - Off Metal: Up to 1.5 m (4.9 ft)
Applicable Surface Materials: Metal and non-metallic substrates
MECHANICAL:
Tag Form Factor: Hard tag
Tag Materials: RF4
Attachment Method: Adhesive, epoxy
Dimensions: 56.5 x 5.95 x 1.3 mm (2.22 x 0.234 x 0.05 in)
Weight: 1 g
ENVIRONMENT:
Operating Temperature: -40° to +85°C (-40° to +185°F)
