Description

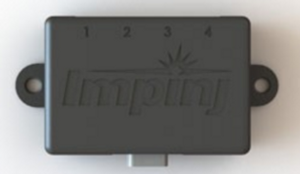

Impinj Speedway Revolution GPIO Adapter
Impinj Speedway Revolution GPIO Adapter
The Impinj Speedway Revolution GPIO Adapter allows for the simultaneous control of up to four Impinj Speedway Antenna Hubs per one Impinj Speedway Revolution R420 Reader. Each hub supports up to 8 antennas for a maximum of 32 antennas per Speedway R420 (4 hubs/R420 x 8 antennas/hub). This GPIO Adapter is also compatible with the Impinj Speedway R120 Reader and the Impinj Speedway R220 Reader (reader must be updated for Firmware version 7.6). One single Impinj R120 reader can be upgraded to eight antenna ports and one single R220 reader can be upgraded to sixteen antenna ports when used in combination with the a Speedway Antenna Hub and GPIO adapter.
Data Sheet — Impinj Speedway Revolution GPIO Adapter
Need help selecting the right adapter or connector? Check out our cables, connectors & adapters guide.
What's included?
- Impinj GPIO Adapter
- One HD-15 cable: 1 ft cable for the Speedway Revolution GPIO port
Compatibility
- Impinj Speedway Revolution R120 UHF RFID Reader - 1 Port
- Impinj Speedway Revolution R220 UHF RFID Reader - 2 Port (Reader must be updated to Firmware Version 7.6)
- Impinj Speedway Revolution R420 UHF RFID Reader - 4 Port
Note: The Impinj Speedway Antenna Hub is NOT compatible with the Impinj R700 RAIN RFID Reader.
| ELECTRICAL: | |
|---|---|
| Power Supply: | 5V provided by the Speedway Revolution R120 or R420 Reader |
| Power Consumption: | 5mA (20mW) max, nominal voltage is 3.3V I/O with 5V max |
| MECHANICAL: | |
| Dimensions: | 92 x 61 x 24 mm (3.5 x 2.4 x 1 in) |
| Weight: | 1.28 kg (2.82 lbs) |
| Connectors: | 1 GPIO Input: HD-15 , 4 Digital I/O: RJ45 |
| Mounting Options: | Two 1/4 in mounting holes |
| ENVIRONMENT: | |
| Operating Temperature: | -40 °C to +80 °C (-40 °C to +176 °F) |
| IP Rating: | IP 52 |
