Key Features- Compatibility: Extends runtime of SMART1500PSGLCD Pure Sine Wave Gaming UPS
- Runtime Boost: Adds up to 41 minutes of extended backup runtime
- Form Factor: Tower installation with included 24V DC high-current cabling
-
Key Features- Voltage: 96V DC external battery module for extended UPS runtime
- Compatibility: SU2200XLCD and SU3000XLCD SmartOnline UPS (2023 redesign)
- Expandability: Daisy-chainable up to 4 matching battery packs
-
Eaton BPGC2500L 2560Wh Battery Pack Expansion Tower BlackSKU: BPGC2500L
Key Features- Capacity: 2560 Wh (50 Ah) LiFePO4 battery with pure sine wave output
- Expandable: Daisy-chain up to 6 units for 17.5 kWh total with GC3000L
- Lifespan: 4000 charge cycles with LED indicators for SOC, voltage & temperature
-
Eaton 5PXEBM72RT3UAG2 72V External Battery Pack | 3U Rack/TowerSKU: 5PXEBM72RT3UAG2
Key Features- Compatibility: Extends runtime for Eaton 5PX2000RT3UNG2 and 5PX3000RT3UNG2 UPS systems
- Scalability: Daisy-chain up to 4 battery packs for extended runtime
- Mounting: 3U Rack/Tower form factor with included rail kit and tower stands
-
Key Features- Voltage: 192 VDC external battery pack for compatible Eaton Tripp Lite UPS systems
- Form Factor: 4U rack/tower with front-panel access and daisy-chain capability
- Batteries: (4) hot-swap 40 lb. sealed modules with 4-6 year typical lifespan
-
Key Features- Voltage: 240VDC external battery pack for select 400V 3-phase SmartOnline UPS systems
- Compatibility: Connects to SVT10KX, SVT20KX, SVT30KX via high-current DC connector
- Dimensions: 580 x 250 x 826 mm (22.84 x 9.85 x 32.50 in) | Weight: 155.13 kg (342 lbs)
-
Eaton 9SXEBM36 36V Extended Battery Module | TowerSKU: 9SXEBM36
Key Features- Compatibility: Extends runtime for Eaton 9SX1000 and 9SX1000G UPS systems
- Daisy-Chain: Supports up to 4 battery packs for maximum extended runtime
- Voltage: 36V DC with heavy-gauge cabling and high-current DC connectors
-
Eaton 9SXEBM96 96V Extended Battery Module | TowerSKU: 9SXEBM96
Key Features- Compatibility: Extends runtime for Eaton 9SX2000, 9SX3000, 9SX3000G, 9SX3000GL, and 9SX3000HW UPS systems
- Voltage: 96V DC with heavy-gauge cabling and high-current DC connectors included
- Expandable: Daisy-chain up to four matching battery packs for extended runtime
-
Eaton Tripp Lite BP480V65-NIB +/-240VDC External UPS Battery Pack | No Batteries IncludedSKU: BP480V65-NIB
Key Features- Voltage: +/-240VDC external battery pack for compatible 3-phase S3MX-Series UPS systems
- Batteries: Requires 40 user-supplied 65Ah sealed lead acid batteries (not included)
- Expandable: Daisy-chain up to 7 cabinets in parallel for extended runtime
-
Key Features- Battery: 48V VRLA Extended Battery Module for SU1500XLCD UPS
- Expandability: Daisy-chain up to 4 battery packs for longer runtime
- Weight: 24.50 kg (54.02 lbs), Tower Form Factor
-
Key Features- Battery: 36V VRLA Extended Battery Module for SU1000XLCD SmartOnline UPS Systems
- Expandable: Daisy-chain up to 4 matching battery packs for maximum extended runtime
- Form Factor: Tower, 19.00 kg (41.89 lbs) with included heavy-gauge 36V DC battery cabling
-
Eaton Tripp Lite BP240V100L ±120VDC External Battery Pack TowerSKU: BP240V100L
Key Features- Voltage: ±120VDC external battery pack for select 50–100K S3M-Series 3-phase UPS systems
- Battery: 40x 100Ah VRLA (AGM) batteries with daisy-chain support for extended runtime
- Build: Heavy-gauge steel cabinet with locking door, fuses, and output breaker protection
-
Key Features- Voltage: +/- 120VDC external battery pack for SV-Series 3-phase UPS systems
- Expandable: Connect up to 3 battery packs in parallel for extended runtime
- Dimensions: Tower form factor, 200.5 x 64.7 x 110.0 cm (78.94 x 25.47 x 43.30 in)
-
Key Features- Compatibility: For use with 12V and 24V PowerVerter APS inverter/charger systems
- Capacity: Holds two 12V, 75Ah batteries (sold separately)
- Construction: Rugged all-metal enclosure with heavy-gauge cabling and terminal isolators
-
Eaton Tripp Lite BP480V100-NIB 40x 100Ah External UPS Battery Pack | No Batteries Included TowerSKU: BP480V100-NIB
Key Features- Battery Config: Accommodates 40 x User-Supplied 100Ah Sealed Lead Acid Batteries (+/- 240VDC)
- Scalable Runtime: Daisy-chain up to 7 packs in parallel for extended 3-phase UPS runtime
- Form Factor: Tower steel enclosure with hardwire installation and built-in circuit breakers
-
Eaton Tripp Lite BP480V40-NIB +/-240VDC External UPS Battery Pack | No Batteries Included TowerSKU: BP480V40-NIB
Key Features- Voltage: +/-240VDC External Battery Pack for Compatible 3-Phase S3MX-Series UPS Systems
- Batteries: Requires 40 User-Supplied 40Ah Sealed Lead Acid Batteries (Not Included)
- Expandability: Up to 7 Packs Daisy-Chained in Parallel for Extended Runtime
-
Eaton Tripp Lite BP240V370NB +/- 120VDC UPS External Battery Pack | No Batteries TowerSKU: BP240V370NB
Key Features- Voltage: +/- 120VDC configuration for SV-Series 3-phase UPS systems
- Batteries: Requires 40 user-supplied 12V 100Ah sealed lead acid batteries (no batteries included)
- Scalability: Up to 3 packs connectable in parallel for extended runtime
-
Key Features- Battery: 20x 65Ah VRLA (AGM) batteries at ±120VDC
- Compatibility: Supports Tripp Lite 10-50K S3M-Series 3-phase UPS systems
- Runtime: Expandable via daisy-chaining additional BP240V65 battery cabinets
-
Key Features- Voltage: +/-144VDC external battery pack for 208V SUT-Series UPS systems
- Protection: 250A DC circuit breaker with 63A fuses per battery string
- Weight: 350 kg (771.62 lbs) tower form factor with rolling casters
-
Key Features- Voltage: +/- 240VDC external battery pack for compatible S3MX-Series 3-phase UPS systems
- Battery: 80 sealed 10Ah lead acid batteries with 5-year design lifespan
- Expandable: Daisy-chain up to 7 battery packs for extended runtime
-

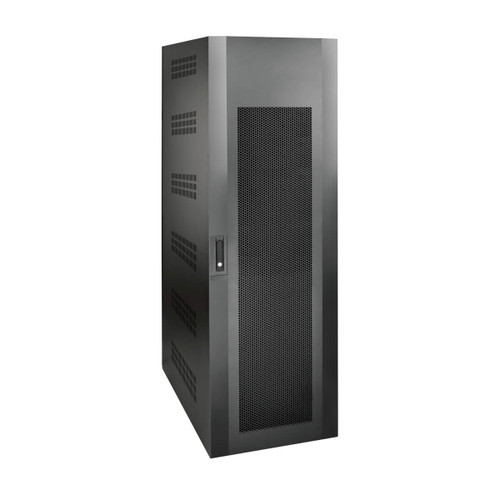

Eaton Tripp Lite BP480V370NB +/- 240VDC External Battery Pack | Batteries Not Included TowerSKU: BP480V370NB
Key Features- Voltage: +/- 240VDC external battery pack for SVX series 3-phase UPS systems
- Batteries: Requires 40 user-supplied 12V 100Ah sealed lead acid batteries (not included)
- Expandable: Up to 3 cabinets connectable in parallel for increased runtime
-
Eaton Tripp Lite EBP240V2501 +/-120VDC UPS Battery Pack Tower TAASKU: EBP240V2501
Key Features- Voltage: +/-120VDC battery pack for SV-Series 3-phase UPS systems
- Expandable: Multiple cabinets connectable in parallel for extended runtime
- Compliance: TAA-compliant for GSA Schedule and federal procurement
-
Key Features- Voltage: +/- 240VDC external battery pack for select 3-phase UPS systems
- Scalable: Multiple packs daisy-chainable for extended runtime
- Dimensions: 1999 x 1016 x 749 mm (78.7 x 40.0 x 29.5 in), 2062.94 kg (4548 lbs)
-

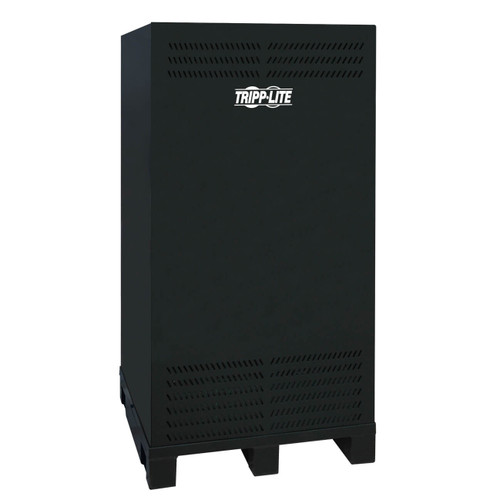

Eaton Tripp Lite BP240V787C-1PH 240V External Tower Battery Pack | 7A ChargerSKU: BP240V787C-1PH
Key Features- Voltage: 240 VDC external battery pack for compatible UPS systems
- Charger: Built-in 7A charger via 120V AC 30A hardwire input
- Runtime: Daisy-chainable packs for extended runtime; 10-year design life
More about UPS Tower Battery Packs
UPS tower battery packs are standalone backup power solutions designed in a vertical “tower” form factor to support uninterruptible power supply (UPS) systems in office, commercial, and light industrial environments. These battery packs provide reliable energy storage to keep critical devices such as computers, servers, networking equipment, and point-of-sale systems running during power outages, voltage drops, or electrical disturbances. Built with sealed lead-acid or lithium-ion battery technology, UPS tower battery packs are engineered for dependable performance, easy installation, and maintenance-free operation. Their compact vertical design allows them to be placed conveniently beside or under workstations and server setups, making them a flexible and space-efficient choice for protecting essential electronics.
