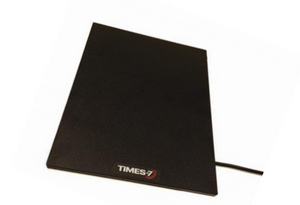

Times-7 B6031 (CP) Indoor RFID Antenna (FCC/ETSI)

SKU:: 71827
UPC:: 692193900931
ELECTRICAL:
Operating Frequency:: FCC (902-928 MHz), ETSI (865-867 MHz)
Polarization:: Circular
Gain:: 5.0 dBic
Max Read Distance:: Up to 4 m (13 ft)
Elevation Beamwidth:: 80°
Azimuth Beamwidth:: 80°
MECHANICAL:
Connector Type:: SMA female side fly lead, 300 mm/1 ft (connects to SMA male)
Cable:: Not Included
Mounting:: Integrated mounting holes
Dimensions:: 275 x 214 x 8 mm (10.8 in. x 8.5 in. x 0.3 in )
Weight:: 0.59 kg (1.3 lbs)
ENVIRONMENT:
IP Rating:: IP 65
Operating Temperature:: -20° to +55°C (-4° to +131°F)
fbt-product:: 1889
fbt-product:: 2161
fbt-product:: 2856
atc-product:: 1665
atc-product:: 1238
atc-product:: 2958
atc-product:: 1466

IN STOCK. Order Now.

Select part numbers & limited quantities are available. Contact Us for details.

View Full Description

$155.00

Current Stock:

Quantity

Adding to cart… The item has been added

Save to List

Need a Quote?

Frequently Bought Together

Total Price:
Add to Cart

Please choose options for all selected products

This Item: Times-7 B6031 (CP) Indoor RFID Antenna (FCC/ETSI)
MSRP:

Was:

Now: $155.00

(You save )

Choose Options

Operating Region: *

Antenna Cable Extension: Recommended None 12 ft Antenna Cable (195 Series, RP-TNC Male to SMA Male) [$58] 25 ft Antenna Cable (240 Series, RP-TNC Male to SMA Male) [$94] 35 ft Antenna Cable (400 Series, RP-TNC Male to SMA Male) [$133]

Specs

Description

Times-7 B6031 (CP) Indoor RFID Antenna (FCC/ETSI)

Part of the SlimLine range of multi-purpose antennas, the B6031 is an ultra-low profile circular polarised flat panel antenna for UHF RFID applications in customer facing or space conscious environments. With a 4 m / 13 ft. read range, the B6031 is similar in size and weight to a Tablet PC and can easily blend into any office or retail environment.

Data Sheet — Times-7 B6031 (CP) Indoor RFID Antenna (FCC/ETSI)

Need help selecting the right antenna? Check out our antenna guide.

What's included?

Times-7 B6031 CP Indoor RFID Antenna Unit
SMA female side fly lead, (300 mm/1 ft)
One Year Standard Equipment Warranty

Why buy this antenna?

With up to a 4 m (13 ft) read range, the Times-7 B6031 RFID antenna is ideal solution for industrial applications that require an ultra-low profile, small footprint antenna.

Features

Up to 4m (13 ft) read range.
Only 8mm thick, enabling a wirder range of space constrained applications.
Sleek, reliable, and rugged design with customer friendly aesthetics.
Flat surface for POS or ground mat applications.
Ideal for retail inventory management, office asset tracking, industry or any customer facing environment applications.

Mounting Requirements

The Vulcan RFID™ HDMNT-100MM Mounting Bracket MUST be used in conjunction with the Vulcan RFID™ Mounting Plate for Zebra AN610, Times-7 A6031, & Times-7 B6031 Antennas.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

ELECTRICAL:
Operating Frequency:	FCC (902-928 MHz), ETSI (865-867 MHz)
Polarization:	Circular
Gain:	5.0 dBic
Max Read Distance:	Up to 4 m (13 ft)
Elevation Beamwidth:	80°
Azimuth Beamwidth:	80°
MECHANICAL:
Connector Type:	SMA female side fly lead, 300 mm/1 ft (connects to SMA male)
Cable:	Not Included
Mounting:	Integrated mounting holes
Dimensions:	275 x 214 x 8 mm (10.8 in. x 8.5 in. x 0.3 in )
Weight:	0.59 kg (1.3 lbs)
ENVIRONMENT:
IP Rating:	IP 65
Operating Temperature:	-20° to +55°C (-4° to +131°F)
