Description

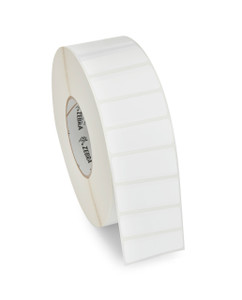

Zebra 3.82" x 1.06" Z-Perform 1500T M830 Advanced RFID Label | For Industrial Printers & Desktop Printers | Case of 2 Rolls - 700 Labels per Roll
Offering an economical choice for 3.82" wide labeling applications, these 3.82" x 1.06" blank paper labels come standard with the Smartrac Dogbone inlay and Impinj M830 integrated circuit. This advanced RFID label provides a higher level of read performance than Zebra's general purpose RFID labels in similar applications.
Data Sheet — Zebra 3.82" x 1.06" Z-Perform 1500T M830 Advanced RFID Label | For Industrial Printers & Desktop Printers | Case of 2 Rolls - 700 Labels per Roll
Get expert help selecting the right tag. Check out our tag guide or chat with a specialist.
Why buy this tag?
Designed specifically for customers in need of blank labels for "at home" printing, these 3.82" x 1.06" labels are equipped with the Impinj M830 IC and perform well when placed on or near challenging materials such as pallets and freights.
Features
- 3.82" x 1.06" Advanced RFID label with permanent adhesive.
- Z-Perform 1500T thermal transfer material.
- Case of 2 rolls, 700 labels per roll.
- Designed for use with select Zebra industrial and desktop printers.
- Optimized to be read from nearly any angle.
- Performs well when placed on or near challenging materials (i.e, pallets, freight).
- 76.2 mm (3 in) core, 127 mm (5 in) outer diameter.
- Pairs well Zebra's 6000 wax or 3200 wax/resin ribbon.
- Ideally suited for densely packed items and overhead reader usage.
- Typical applications include labeling of cases, pallets, transportation & logistics, and warehouse labeling.
Compatibility
- Zebra RXi4 Series Printers
- Zebra ZD500R Series Printers
- Zebra ZT400R Series Printers
- Zebra ZT410 RFID Printers
- Zebra ZT411 RFID Printers
- Zebra ZT420 RFID Printers
- Zebra ZT421 RFID Printers
- Zebra ZT610 RFID Printers
- Zebra ZT620 RFID Printers
- Zebra ZD621R Thermal Transfer RFID Desktop Printer
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj M830 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Wood, Plastic, Glass, Cardboard |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Z-Perform 1500T |
| Recommended Ribbon: | Zebra's 6000 Wax or Zebra's 3200 Wax/Resin |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 97.0 x 26.9 mm (3.82 x 1.06 in) |
| Weight: | 0.6 g |
| ENVIRONMENT: | |
| Operating Temperature: | Not Published |
