Description
*Subject to availability. Visit Smartrac DogBone RFID Wet Inlay (M750) for an alternative product.
What is a Catalog Product?
Catalog Only Products are high-quality RFID tags that have either yet to be released, are not commonly stocked, or are legacy offerings that are reaching end-of-life (EOL). Pricing, lead time, and minimum order quantity (MOQ) on all catalog-only pages is representative only and subject to change. Please contact us to confirm availability and receive a quote.
NOTE: Due to only being purchased to order, all Catalog Only products are final sale and may not be returned or exchanged.

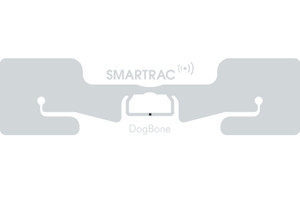

SMARTRAC DogBone RFID Wet Inlay (Monza R6) - Adhesive+
Equipped with RA-2 UV acrylic hot melt adhesive, the SMARTRAC Dogbone RFID Inlay - Adhesive + is specifically designed for customers who desire increased adherence in their application with fewer elemental effects. With a service temperature of -40° to +150°C, this stronger adhesive provides greater adherence for rugged applications without compromising performance.
SMARTRAC Dogbone RFID Adhesive + Inlays are compliant with Wal-Mart, Department of Defense (DoD), and METRO Group standards and protocols. Likewise, the inlays are compliant with international standards ISO 18000-63 and EPCglobal Gen2v2, so the SMARTRAC Dogbone RFID Wet Inlay will work with all equipment and systems adhering to the proper standards. All UHF transponders from SMARTRAC undergo three different testing methods to ensure the reliability of all their RFID tags. They test RFID inlay performance across various temperatures, humidities, and combinations of the former and latter. The SMARTRAC Dogbone Wet Inlay uses the Impinj Monza R6 IC (integrated circuit) providing an extra layer of reliability from another respected industry leader. Featuring two “dogbone” shaped antennas, the SMARTRAC DogBone RFID Wet Inlay transmits in an omni-directional pattern eliminating blind spots. The high-performance feature means the orientation of the tag and reader will be less of a factor in the success of your systems.
Data Sheet — SMARTRAC DogBone RFID Wet Inlay (Monza R6) - Adhesive+
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Featuring a stronger adhesive than its counterparts, the SMARTRAC Dogbone Adhesive+ is designed for customers who require high performing wet inlays with increased adherence and fewer elemental effects. Equipped with the Impinj's Monza R6 chip, the SMARTRAC Dogbone Adhesive+ provides higher sensitivity, durability, and environmental auto-tune abilities. Unlike other tags, the R6 Dogbone does not have user memory, which provides higher sensitivities and allows the potential for longer read ranges and faster read rates.
Features
- Equipped with RA-2 UV arcylic hot melt adhesive.
- Provides stronger adherence with less elemental effects.
- High end product for retail, global supply chain management, industrial and logistic applications, and RTIs.
- Excellent performance even on difficult-to-tag materials.
- Optimum size product for 4 inch wide converted labels.
- ISO 9001:2008 Quality Management System and ISO 14001:2004 Environment Management System support.
- Serialized TID.
- AutoTune Technology: Automatically adjust tag performance for best readability.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPC Class 1 Gen 2, ISO 18 000-6C |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj Monza R6 |
| Memory: | EPC 96 bits |
| EPC Memory Content: | Unique, auto-serialized |
| Max Read Distance: | > 6.1 m (20 ft) |
| Applicable Surface Materials: | Plastic, cardboard, glass |
| MECHANICAL: | |
| Tag Form Factor: | Wet inlay |
| Tag Materials: | Printable PET 12 (Face) (Thermal Transfer), Aluminum (Antenna) |
| Recommended Ribbon: | Full Resin |
| Attachment Method: | RA-2, Permanent UV acrylic hot melt adhesive |
| Dimensions: | 97 x 27 mm (3.82 x 1.06 in) |
| Weight: | 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
