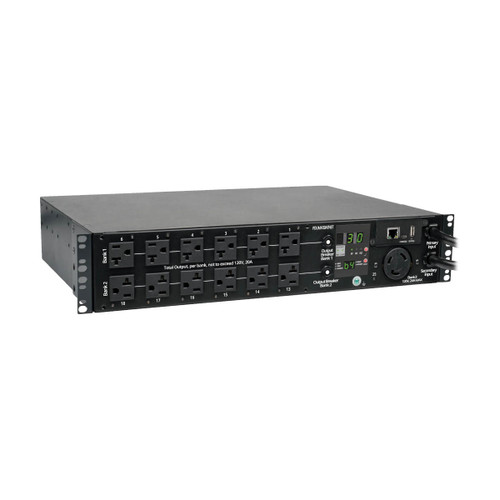

Eaton Tripp Lite PDUMH30ATNET 2.9kW Switched ATS PDU 2U 2 L5-30P Inputs | 24 5-15/20R & 1 L5-30R Outlets | TAASKU: PDUMH30ATNET
Key Features- ATS Redundancy: Dual L5-30P inputs with 1-5ms solid-state transfer switching for fault-tolerant A/B power protection
- Outlets: 25 switched outlets (24 x 5-15/20R & 1 x L5-30R) with individual remote on/off control
- Management: Pre-installed WEBCARDLX with PADM20 for SNMP, SSH, and HTML5 remote monitoring
-
Eaton Tripp Lite PDUMH15HVAT 2.4kW 10-Outlet Local Metered Automatic Transfer Switch PDU 1U Rack-MountSKU: PDUMH15HVAT
Key Features- Redundancy: Automatic Transfer Switching in 2-5 ms from primary to secondary power source
- Outlets: 10 x C13 outputs; dual IEC-320 C14 inputs; 200-240V single-phase
- Monitoring: Digital ammeter display; LED indicators; optional SNMP/web network management card
-
Eaton Tripp Lite PDUMH15-ISO 1.5kW 3840 Joules 14-Outlet Local Metered PDU | 1U Rack-MountSKU: PDUMH15-ISO
Key Features- Protection: 3840-Joule ISOBAR network-grade surge suppression with EMI/RFI filtering up to 80 dB
- Outlets: 14 NEMA 5-15R outlets (2 front / 12 rear), 12A max capacity
- Monitoring: Built-in digital current meter with 3 diagnostic LEDs, 1U rack-mount
-
Key Features- Outlets: 36 NEMA 5-15/20R outlets with 16A total capacity
- Metering: Two-digit lighted display reports total output current in amps
- Form Factor: 0U vertical rackmount, 72 in. / 183 cm with 15 ft. input cord
-
Eaton Tripp Lite PDUMV20NETLX 1.9kW 24-Outlet Switched PDU | L5-20P Input | 0U VerticalSKU: PDUMV20NETLX
Key Features- Capacity: 1.9kW / 16A single-phase with 24 switched NEMA 5-15/20R outlets
- Remote Management: WEBCARDLX with HTML5, SNMP, SSH, Telnet; per-outlet on/off/reboot
- Mounting: 0U vertical rackmount with toolless install; NEMA L5-20P input, 10 ft. cord
-
Key Features- Capacity: 2.9kW / 24A Single-Phase 120V Local Metered PDU
- Outlets: 12 NEMA 5-15/20R with two independent 20A breakered load banks
- Metering: Two-digit lighted display reports total PDU input current in amps
-

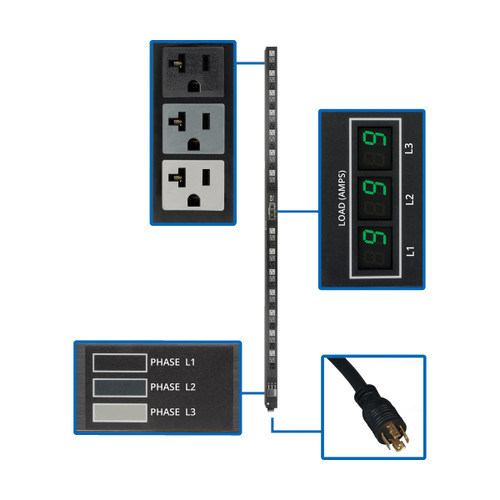

Eaton Tripp Lite PDU3MV6L2120LV 5.7kW 42-Outlet 3-Phase Local Metered PDU 0U VerticalSKU: PDU3MV6L2120LV
Key Features- Capacity: 5.7kW 3-Phase output, 16A max per phase, 42 NEMA 5-15/20R outlets
- Monitoring: 3 built-in digital current meters reporting load per phase (L1, L2, L3)
- Form Factor: 0U Vertical, 70 in. (178 cm), TAA compliant, toolless button-mount
-

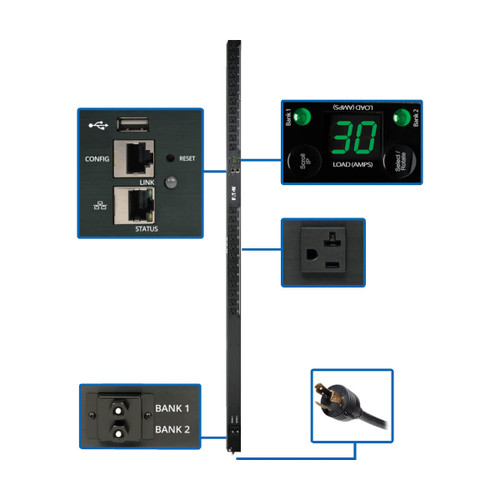

Eaton Tripp Lite PDUMNV30LX 2.9kW Monitored PDU 0U VerticalSKU: PDUMNV30LX
Key Features- Capacity: 2.9kW / 24A Single-Phase Monitored 0U Vertical PDU
- Outlets: 24 NEMA 5-15/20R with cord retention brackets and two 20A breakers
- Monitoring: Built-in LX Platform interface with SNMP, SSH, telnet, and HTML5 web access
-
Eaton Tripp Lite PDUMNH15 1.4kW 8-Outlet Monitored PDU | 1U Rack-Mount with LX Platform InterfaceSKU: PDUMNH15
Key Features- Capacity: 1.44kW / 12A monitored single-phase 120V PDU
- Outlets: 8 NEMA 5-15R with cord retention brackets, 1U rack-mount
- Management: Pre-installed WEBCARDLX with PADM20 for remote monitoring via SNMP, SSH, HTML5
-
Key Features- Capacity: 5.8kW Single-Phase, 30A (24A continuous), NEMA L6-30P input
- Outlets: 48 total - (40) C13 + (8) C19 across dual 20A breakered load banks
- Monitoring: Dual digital ammeters for real-time per-bank current monitoring
-
Key Features- Outlets: 14 NEMA 5-15R outlets with 1.44 kW / 12A capacity
- Input: NEMA 5-15P plug with 15 ft. (4.57 m) cord
- Mounting: Toolless 0U vertical rack mount, 36 in. all-metal housing
-
Key Features- Outlets: 16 Individually Switched NEMA 5-15R Outlets (8 Front / 8 Rear)
- Capacity: 1.44kW / 12A, 120V Single-Phase with NEMA 5-15P Input
- Management: Pre-installed WEBCARDLX with PADM20, SNMP, SSH, HTML5 Web Interface
-
Eaton Tripp Lite PDUMH20ATNET 1.9kW 16-Outlet Switched Auto-Transfer Switch PDU | 1U Rack-MountSKU: PDUMH20ATNET
Key Features- ATS Switching: Automatic failover between primary and secondary inputs in 2-7 ms
- Outlets: 16 individually switched NEMA 5-15/20R outlets; 1.92kW / 16A capacity
- Remote Management: Pre-installed WEBCARDLX with SNMP, SSH, HTML5 web interface
-
Key Features- Capacity: 2.4kW / 20A Single-Phase 120V Power Distribution
- Outlets: 13 NEMA 5-15/20R (12 Rear, 1 Front) with 20A Circuit Breaker
- Mounting: 1U Rack-Mount with 15 ft. (4.57 m) Input Cord
-
Key Features- Capacity: 5.5kW, 24A continuous single-phase 208/230V
- Outlets: 30 total (24 C13, 6 C19) in two separately breakered 15A load banks
- Form Factor: 0U vertical rackmount, 63.75 in. with dual LED current meters
-
Key Features- Capacity: 1.8 kW / 15A single-phase power distribution
- Outlets: 13 NEMA 5-15R outlets (12 rear, 1 front) with 15A breaker protection
- Mounting: 1U rack-mount with reversible all-metal housing; wall and vertical mount supported
-
Eaton Tripp Lite PDUMH15ATNET 1.44kW 120V 8-Outlet Switched Auto-Transfer Switch PDU 1U Rack-MountSKU: PDUMH15ATNET
Key Features- Redundancy: Dual 120V NEMA 5-15P inputs with 2-7 ms auto-transfer switching
- Outlets: 8 individually switched NEMA 5-15R outlets, 1.44kW / 12A capacity
- Management: Pre-installed WEBCARDLX with SNMP, SSH, HTML5 web interface
-
Eaton Tripp Lite PDUMV40 3.8kW Local Metered PDU | 32 5-15/20R Outlets | 10 ft Cord | 0U VerticalSKU: PDUMV40
Key Features- Capacity: 3.8 kW total output across 32 NEMA 5-15/20R outlets
- Circuits: Dual independent 16A circuits, color-coded for easy cable management
- Form Factor: 0U vertical, 71 in. - mounts in rack, wall, or raceway
-
Eaton Tripp Lite PDUMV20 1.9kW Local Metered PDU | 28x 5-15/20R Outlets | L5-20P Input | 0U VerticalSKU: PDUMV20
Key Features- Capacity: 1.92kW / 16A single-phase 120V metered PDU
- Outlets: 28 NEMA 5-15/20R with 20A circuit breaker protection
- Install: 0U 60 in. vertical rackmount with toolless button-mount support
-
Key Features- Capacity: 1.92kW / 16A single-phase 120V power distribution
- Outlets: 14 NEMA 5-15/20R with 20A circuit breaker overload protection
- Mounting: Toolless 0U vertical rack mount, 36 in. all-metal housing
More about Power Distribution Units (PDUs)
Power Distribution Units (PDUs) are rack-mounted electrical devices designed to distribute power efficiently and safely to multiple IT components within data centers, server rooms, and network racks. They come in various types, from basic models that simply extend power to advanced intelligent PDUs that provide real-time monitoring, remote switching, load balancing, and energy usage analytics. PDUs help ensure stable uptime, prevent circuit overloads, and improve overall power management efficiency in critical IT infrastructure.
