Product Details
*Subject to availability. Visit Avery Dennison Smartrac DogBone RFID Paper Tag | M730 for an alternative product.*
What is a Catalog Product?
Catalog Only Products are high-quality RFID tags that have either yet to be released, are not commonly stocked, or are legacy offerings that are reaching end-of-life (EOL). Pricing, lead time, and minimum order quantity (MOQ) on all catalog-only pages is representative only and subject to change. Please contact us to confirm availability and receive a quote.
Note: Due to only being purchased to order, all Catalog Only products are final sale and may not be returned or exchanged.

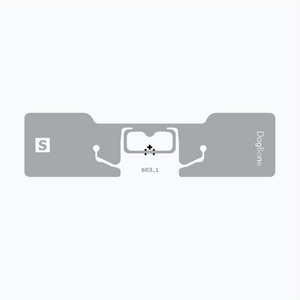

Avery Dennison Smartrac DogBone RFID Paper Tag | M730
Avery Dennison Smartrac DogBone RFID Paper Tags excel through superior performance in demanding environments and on difficult-to-tag materials, due to their high tolerance against the detuning effect of high dielectric materials. Equipped with the M730 IC from Impinj, these tags feature 128 bit-EPC memory and offer an enhanced “autotune” adaptive RF tuning feature. In addition, the M730 IC has an improved read and write sensitivity, enabling faster and more accurate bulk reading compared to Impinj R6/R6-P.
| Tag Variations | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IC Type & Memory | Form Factor | Product Code | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Monza MR6-P EPC 128/96 Bits, User 32/64 Bits |
Wet Inlay | 3005072 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Monza MR6-P EPC 128/96 Bits, User 32/64 Bits |
Wet Inlay - Adhesive+ | 3006616 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Monza MR6-P EPC 128/96 Bits, User 32/64 Bits |
Paper Tag | 3005073 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Monza MR6-P EPC 128/96 Bits, User 32/64 Bits |
White Wet Inlay - Adhesive+ | 3007297 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M730 EPC 128 Bits, TID 96 Bits |
Wet Inlay | 3007995 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M730 EPC 128 Bits, TID 96 Bits |
White Wet Inlay | 3008356 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M730 EPC 128 Bits, TID 96 Bits |
Paper Tag | 3008054 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M750 EPC 96 Bits, User 32 Bits, TID 96/48 Bits |
Wet Inlay | 3007958 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M750 EPC 96 Bits, User 32 Bits, TID 96/48 Bits |
Paper Tag | 3007482 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M830 EPC 128 Bits, TID 96/48 Bits |
Wet Inlay+ | IL-611309 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M830 EPC 128 Bits, TID 96/48 Bits |
Paper Tag | IL-611310 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
Compatible with global GS1 UHF Gen2v2 standards, Avery Dennison Smartrac DogBone RFID Paper Tags are designed for global supply chain, logistics, and sport timing applications. These tags come standard with the Impinj M730 IC and offer a privacy mode that enables loss prevention and protects consumer privacy.
Features
- Excellent global performance on difficult-to-tag materials.
- Good tolerance to the detuning effect of highly dielectric materials.
- Optimized for 100 mm (4 inch) wide converted labels.
- Impinj M730 IC tag chip.
- Manufactured to the highest quality standards as confirmed by the RFID Lab at Auburn University.
- Common applications: inventory and logistics, sports timing, and supply chain management.
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal Gen2v2 (ISO 18000-63) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | Impinj M730 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance: | Testing recommended |
| Applicable Surface Materials: | Plastic, cardboard, glass, paper |
| Tag Form Factor: | Paper tag |
| Tag Materials: | Mid-gloss paper |
| Recommended Ribbon: | Not published |
| Attachment Method: | Not published |
| Dimensions: | 97 x 27 mm (3.82 x 1.06 in) |
| Weight: | 1 g |
| Operating Temperature: | -45° to +85°C (-49° to +185°F) |
