Description
*Supplies limited to inventory on hand. Visit Beontag Pollux RFID White Wet Inlay | M750 for an alternative product.*

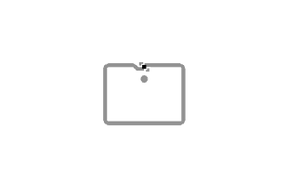

Alien SIT RFID White Wet Inlay (ALN-9613, Higgs-3)
Powered by Alien®’s break-through Higgs™3 UHF RFID IC, the “SIT” is a near-fi eld (aka magnetic or inductive) coupled antenna design, the ALN-9613 delivers industry leading EPC Gen 2 performance and reliability in an ultra compact form factor. The “SIT” is especially well-suited for very small item-level applications where geometries are critical. The near-fi eld coupling properties make this tag ideal where read range requirements are short or for applications on aqueous materials. With its Higgs-3 core, the SIT delivers excellent performance and a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data. ALN-9613 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.
Data Sheet — Alien SIT RFID White Wet Inlay (ALN-9613, Higgs-3)
![Data Sheet — Alien SIT RFID White Wet Inlay (ALN-9613, Higgs-3)](https://cdn11.bigcommerce.com/s-ka7ofex/product_images/uploaded_images/button-viewdatasheet2.png" "Data Sheet — Alien SIT RFID White Wet Inlay (ALN-9613, Higgs-3)"){kind=small}
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Alien Technology® ALN-9613 SIT (Small Item Tag) is a small near-field inlay, perfect for ultra-compact, item-level tagging applications where size is of out-most concern or where range must be limited.
Features
- EPC Gen 2 (v1.2.0) compliant
- ISO/IEC 18000-6C compliant
- Worldwide RFID UHF operation (840-960MHz)
- Higgs™-3 IC with 800-bits of Nonvolatile Memory
- Pre-programmed with a unique, unalterable 64-bit serial number (ideal for authentication)
- User Memory can be Block Perma-Locked
- User Memory can be Read Password protected in 64-bit blocks, prohibiting unintended Reads without an access password
- Supports all Mandatory and Optional Gen 2 commands including item level
- Custom commands for high speed programming
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (840-960 MHz) |
| IC Type: | Alien Higgs-3 |
| Memory: | EPC 96-480 bit, User 512 bit, TID 32 bit |
| EPC Memory Content: | Unique EPC number encoded |
| Max Read Distance: | 15.24 cm (< 6 in) |
| Applicable Surface Materials: | Wood, Plastic, Glass, Cardboard |
| MECHANICAL: | |
| Tag Form Factor: | White Wet Inlay |
| Tag Materials: | Printable white film (Thermal Transfer) Overlay |
| Recommended Ribbon: | Full Resin |
| Attachment Method: | General Purpose Adhesive |
| Dimensions: | 19 x 12.7 mm (0.75 x 0.5 in) |
| Weight: | < 1 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +70°C (-40° to +158°F) |
| Short Description: | Supplies limited to inventory on hand. Visit Beontag Pollux RFID White Wet Inlay|M750 for an alternative product. |
