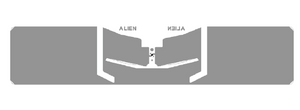

Alien G RFID White Wet Inlay (ALN-9954, Higgs-9)

SKU:
ALN-9954-WRW

Contact Us for Pricing

Description

Alien G RFID White Wet Inlay (ALN-9954, Higgs-9)

The ALN-9954 is designed for increasingly complex automotive windshield glass, traditionally difficult-to-tag RF materials, and general purpose asset management applications. Equipped with the 93 x 19 mm Higgs™-9 UHF RFID IC based "G" antenna design, the ALN-9954 offers class leading performance and reliability. ALN-9954 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa.  The “G” inlay comprises a rich feature set including a 32-bit TID, a 48-bit Unique TID for authentication and serialization applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag’s data.

Data Sheet  Alien G RFID White Wet Inlay (ALN-9954, Higgs-9)


Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

Compatible with all standard far-field RFID reader antennas, Alien G RFID White Wet Inlays are fine tuned general-purpose RFID inlays especially well-suited for high-dielectric materials such as windshields and reusable plastic pallets or containers.

Features

  • Performance tuned for automotive windshields and high-dielectric materials.
  • Worldwide operation in all RFID UHF bands (840-960 MHz).
  • Global GS1 Class 1 Gen 2 (V1.2.0) and ISO/IEC 18000-6C compliance.
  • Exceptional performance for traditionally challenging RF materials.
  • Class leading read and write performance.
  • 1024 bits of NVRAM Memory.
  • User Memory may be Block Perma-Locked as well as read password protected in 32 bit blocks.
  • Low power operation for both read and write.
  • BlastWrite™ and QuickWrite™ mass-encoding.
  • Dynamic Authentication™ - anti-cloning/anti-counterfeit technology.
  • Common applications: windshield glass, plastic pallets, totes, containers, asset management, and high-dielectric materials.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO/IEC 18000-6C)
Operating Frequency:
Global (840-960 MHz)
IC Type:
Alien Higgs-9
Memory:
EPC 96/496 Bits, User Up to 688 Bits, TID 32 Bits
EPC Memory Content:
Not published
Max Read Distance:
Testing recommended
Applicable Surface Materials:
Wood, plastic, glass, or other challenging insulator materials
MECHANICAL:

Tag Form Factor:
White wet inlay
Tag Materials:
Printable white film (Thermal Transfer)
Recommended Ribbon:
Not published
Attachment Method:
General purpose permanent adhesive
Dimensions:
96.5 x 23.2 mm (3.799 x 0.913 in)
Weight:
< 1 g
ENVIRONMENT:

Operating Temperature:
-40° to +70°C (-40° to +158°F)
