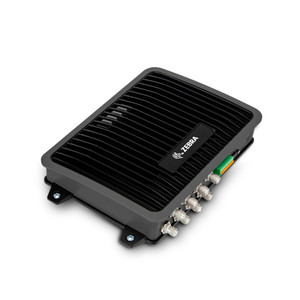

Zebra FX9600 RFID Reader - 8 Port

Hover over image to zoom

  • Zebra FX9600 RFID Reader - 8 Port | FX9600-82320A50-US
$1,745
SKU:
FX9600-82320A50-US
Availability:
Contact Us for Lead Time
Expected release date is 23rd Jan 2018

 Product Description

Zebra FX9600 RFID Reader - 8 Port

The Zebra FX9600 RFID Reader - 8 Port Industrial Fixed UHF RFID Reader delivers the performance and features you need to handle it all. With support for PoE and PoE+, an IP53 sealed housing rating, and eight RF antenna ports, the FX9600 brings a new level of capability to passive UHF applications, such as asset tracking and inventory management, without compromising on performance. Industry-leading read rates, exceptional read accuracy, and superior RF sensitivity ensure you can automate inventory management workflows.

Data Sheet — Zebra FX9600 RFID Reader - 8 Port


What's included?

  • Zebra FX9600 RFID Reader - 8 Port unit
  • Power Adapter if selected above

Why buy this reader?

Zebra FX9600 RFID Reader - 8 Port can host embedded applications, simplifying and reducing deployment time, cost and complexity while increasing network bandwidth. With PoE and PoE+ support, there’s no need to run power drops to each reader. With industry-best full output power through PoE+ or a 24V power supply, you no longer need to compromise on power for longer cable runs.

Features

  • High RF sensitivity for superior performance and efficiency.
  • Most power in its class.
  • Parse data at the edge with embedded applications.
  • Easy, low-cost deployment with suport for PoE and PoE+.
  • Directly connects to Wi-Fi networks and Bluetooth-enabled devices.

Specifications

ELECTRICAL:

Air Interface Protocol:
ISO 18000-63 (EPC Class 1 Gen 2 V2)
Operating Frequency:
FCC (902 MHz - 928 MHZ)
Transmit Power:
33 dBm
Max Receive Sensitivity:
-86 dBm
Max Read Distance:
Not Published
Max Read Rate:
Not Published
Data Interface:
Ethernet with USB Host & Client
GPIO:
4 inputs, 4 outputs, optically isolated
Power Source:
Power supply if selected or POE
MECHANICAL:

Antenna Ports:
8 monostatic ports; (RP-TNC Female) (connects to RP-TNC Male)
Dimensions:
273.05 x 184.15 x 50.8 mm (10.75 x 7.25 x 2 in)
Weight:
2.13 kg (4.4 lbs)
ENVIRONMENT:

IP Rating:
IP 53
Operating Temperature:
-20° to +55° C (-4° to +131° F)
APPLICATION INTERFACE:

Host API:
.NET, C and Java EMDK
Demo Software:
Not Published
