Description

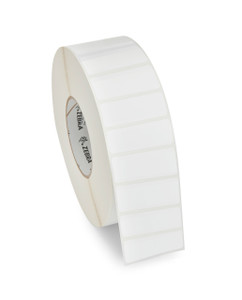

Zebra 2.09" x 0.69" Z-Perform 1500T General Purpose RFID Label | For Industrial Printers
Manufactured to ensure optimum performance in select Zebra industrial printers, these 2.09" x 0.69" thermal transfer, smooth paper labels come standard with the Avery Dennison Stealth inlay and Impinj M830 integrated circuit.
Data Sheet — Zebra 2.09" x 0.69" Z-Perform 1500T General Purpose RFID Label | For Industrial Printers
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
These blank 2.09" x 0.69" RFID labels are designed for use in select Zebra industrial RFID printers under the assumption that the customer will do the printing and encoding and just needs stock RFID labels.
Features
- General purpose RFID label with permanent adhesive.
- ARC Certified in many categories: F, I, L, O, Q, R, W5, W6, and Y2.
- Works on most non-metallic surfaces, such as plastic and corrugate.
- Case of 3 rolls - 3,500 labels per roll.
- Designed for use with Zebra industrial printers (3" ID, 8" OD).
- Thermal transfer, smooth paper label with a permanent acrylic adhesive.
- Z-Perform 1500T materials.
- Recommended for printing applications up to 14 inches per second.
- Suitable for fanfolding.
- Meets FDA 175.105 for indirect food contact requirements.
- Common applications: labeling of packaging material, retail compliance labeling, work in process, and food labeling.
Compatibility
- Zebra R110Xi4 Industrial RFID Series Printers
- Zebra ZT231 RFID Printers
- Zebra ZT410 RFID Printers
- Zebra ZT411 RFID Printers
- Zebra ZT420 RFID Printers
- Zebra ZT421 RFID Printers
- Zebra ZT610 RFID Printers
- Zebra ZT620 RFID Printers
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Gen 2 |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj M830 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | Up to 20 m (65.6 ft) - Frequency and Surface Dependent |
| Applicable Surface Materials: | Wood, Plastic, Glass, Cardboard, PVC, Rubber |
| ARC Approved Categories: | F, I, L, O, Q, R, W5, W6, Y2 |
| MECHANICAL: | |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Z-Perform 1500T |
| Recommended Ribbon: | Zebra's 6000 Wax or Zebra's 3200 Wax/Resin Ribbon |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 53 x 17.5 mm (2.09 x 0.69 in) |
| Weight: | 0.6 g |
| ENVIRONMENT: | |
| Operating Temperature: | Not Published |
