Vulcan RFID™

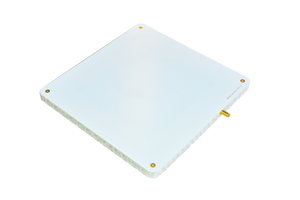

Vulcan RFID™ SP11 UHF RFID Antenna (FCC/ETSI)

SKU:
VUL-ADAN-SP11US-PRMSMA-1-100
$122.00
ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), ETSI (865.6-867.6 MHz)
Polarization:
Circular
Gain:
8.3 dBi (5.3 dBiL - EU version)
Max Read Distance:
Up to 5 m (16.4 ft)
Elevation Beamwidth:
70˚
Azimuth Beamwidth:
70˚
MECHANICAL:

Connector Type:
Edge Mount SMA Female (connects to SMA Male), Right Angle SMA Female (connects to SMA Male)
Cable:
Not Included
Mounting:
Integrated Mounting Holes
Dimensions - excluding connector:
207 x 207 x 11.6 mm (8.15 x 8.15 x 0.45 in)
Weight:
0.195 kg (0.43 lbs)
ENVIRONMENT:

IP Rating:
IP 60
Operating Temperature:
-20°C to +70°C (-4°F to +158°F)
fbt-product:
2432
fbt-product:
1665
fbt-product:
1238
atc-product:
1316
atc-product:
1666
atc-product:
2958
atc-product:
2260

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Vulcan RFID™ SP11 UHF RFID Antenna (FCC/ETSI)

The Vulcan RFID™ SP11 UHF RFID Antenna is a compact RFID UHF antenna with circular polarization. This antenna has a radiation pattern characterized by a wide beam in all directions in one hemisphere. The Vulcan RFID UHF RFID Antenna's combination of a high gain, light weight, thin form factor, and compact size (compared to other high gain antennas available on the market) make this antenna ideal for many RFID applications such as but not limited to: RFID portals, RFID tunnels, smart shelves, smart displays, smart panels, smart tables, and other smart surfaces.

Data Sheet  Vulcan RFID™ SP11 UHF RFID Antenna (FCC/ETSI)


Need help selecting the right antenna? Check out our antenna guide.

What's included?

  • Vulcan RFID™ SP11 UHF RFID Antenna Unit

Why buy this antenna?

Equipped with a very high gain and a thin form factor, the Vulcan RFID™ SP11 UHF RFID Antenna is an ideal solution for RFID portals, RFID tunnels, smart shelves, smart panels, smart tables, and smart surfaces in general applications.

Features

  • High gain.
  • Very thin form factor (compared to other high gain antennas available in the market).
  • Very light weight.
  • Cost effective.
  • Common applications: RFID portals, RFID tunnels, smart shelves, smart panels, smart tables, and smart surfaces in general.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Details

ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), ETSI (865.6-867.6 MHz)
Polarization:
Circular
Gain:
8.3 dBi (5.3 dBiL - EU version)
Max Read Distance:
Up to 5 m (16.4 ft)
Elevation Beamwidth:
70˚
Azimuth Beamwidth:
70˚
MECHANICAL:

Connector Type:
Edge Mount SMA Female (connects to SMA Male), Right Angle SMA Female (connects to SMA Male)
Cable:
Not Included
Mounting:
Integrated Mounting Holes
Dimensions - excluding connector:
207 x 207 x 11.6 mm (8.15 x 8.15 x 0.45 in)
Weight:
0.195 kg (0.43 lbs)
ENVIRONMENT:

IP Rating:
IP 60
Operating Temperature:
-20°C to +70°C (-4°F to +158°F)
