Vulcan RFID™

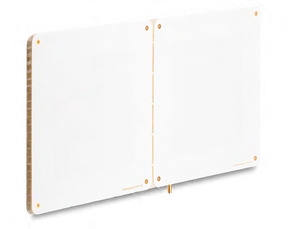

Vulcan RFID™ SP12 UHF RFID Antenna (FCC/ETSI)

SKU:
VUL-ADAN-SP12US-PRMSMA-1-100
$232.00
ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), ETSI (865-868 MHz)
Polarization:
Circular
Gain:
9.5 dBi (6.6 dBiL) EU version
Max Read Distance:
Up to 10 m (32.8 ft)
Elevation Beamwidth:
40˚
Azimuth Beamwidth:
70˚
MECHANICAL:

Connector Type:
PCB mount right angle inside antenna SMA Female (connects to SMA Male), PCB mount right angle beneath antenna SMA Female (connects to SMA Male), Flange straight SMA Female (connects to SMA Male)
Cable:
Not Included
Mounting:
Integrated Mounting Holes
Dimensions - Edge Mount - Without Enclosure::
417 x 207 x 11.6 mm (16 x 8.15 x 0.45 in)
Dimensions - Flange Right Angle - Without Enclosure::
417 x 207 x 21.7 mm (16 x 8.15 x 0.854 in)
Dimensions - Flange Straight - With Enclosure::
480 x 240 x 60 mm (18.89 x 9.45 x 2.36 in)
Weight - Without Enclosure:
0.385 kg (0.85 lbs)
Weight - With Enclosure:
2.52 kg (5.56 lbs)
ENVIRONMENT:

IP Rating:
IP 62
Operating Temperature:
-20°C to +70°C (-4°F to +158°F)
fbt-product:
1316
fbt-product:
1665
fbt-product:
1238
atc-product:
2263
atc-product:
1666
atc-product:
2958
atc-product:
2010

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Vulcan RFID™ SP12 UHF RFID Antenna (FCC/ETSI)

The Vulcan RFID™ SP12 UHF RFID Antenna is an ultra-light antenna with a very high gain, circular polarization, and a radiation pattern characterized by a 70° beamwidth in one plane and a 40° beam in the other plane. The Vulcan RFID UHF RFID Antenna's combination of a high gain, light weight, thin form factor, and compact size (compared to other high gain antennas available on the market) make this antenna ideal for many RFID applications such as but not limited to: RFID portals, RFID tunnels, smart shelves, smart displays, smart panels, smart tables, and other smart surfaces.

Data Sheet  Vulcan RFID™ SP12 UHF RFID Antenna (FCC/ETSI)


Need help selecting the right antenna? Check out our antenna guide.

What's included?

  • Vulcan RFID™ SP12 UHF RFID Antenna Unit

Why buy this antenna?

Equipped with a very high gain and a thin form factor, the Vulcan RFID™ SP12 UHF RFID Antenna is an ideal solution for RFID portals, RFID tunnels, and tracking system applications.

Features

  • High gain.
  • Very thin form factor (compared to other high gain antennas available in the market).
  • Very light weight.
  • Cost effective.
  • Common applications: RFID portals, RFID tunnels, smart shelves, smart displays, smart panels and smart tables or other surfaces.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Product Details

ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), ETSI (865-868 MHz)
Polarization:
Circular
Gain:
9.5 dBi (6.6 dBiL) EU version
Max Read Distance:
Up to 10 m (32.8 ft)
Elevation Beamwidth:
40˚
Azimuth Beamwidth:
70˚
MECHANICAL:

Connector Type:
PCB mount right angle inside antenna SMA Female (connects to SMA Male), PCB mount right angle beneath antenna SMA Female (connects to SMA Male), Flange straight SMA Female (connects to SMA Male)
Cable:
Not Included
Mounting:
Integrated Mounting Holes
Dimensions - Edge Mount - Without Enclosure::
417 x 207 x 11.6 mm (16 x 8.15 x 0.45 in)
Dimensions - Flange Right Angle - Without Enclosure::
417 x 207 x 21.7 mm (16 x 8.15 x 0.854 in)
Dimensions - Flange Straight - With Enclosure::
480 x 240 x 60 mm (18.89 x 9.45 x 2.36 in)
Weight - Without Enclosure:
0.385 kg (0.85 lbs)
Weight - With Enclosure:
2.52 kg (5.56 lbs)
ENVIRONMENT:

IP Rating:
IP 62
Operating Temperature:
-20°C to +70°C (-4°F to +158°F)
