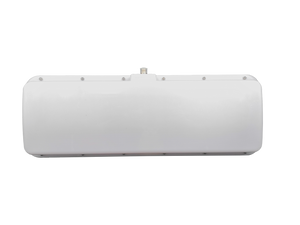

Vulcan RFID™ LINE12 High Gain Antenna (FCC)
Vulcan RFID™ LINE12 High Gain Antenna (FCC)
The Vulcan RFID™ LINE12 High Gain Antenna is a linear polarized antenna that is versatile, rugged, and highly efficient for a multitude of applications requiring maximum performance at wide read-ranges. Its IP65 rating makes the Vulcan RFID™ LINE12 antenna suitable for outdoor and industrial applications. Offering high gain and a narrow beam, this antenna is ideal for asset management, fleet management, warehouse and distribution centers, and applications where consistant read zone coverage is needed.
Data Sheet — Vulcan RFID™ LINE12 High Gain Antenna (FCC)
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- Vulcan RFID™ LINE12 High Gain Antenna (FCC) Unit
- One Year Standard Manufacturer Warranty
Why buy this antenna?
The Vulcan RFID™ LINE12 High Gain Antenna is rugged, high gain antenna suitable for outdoor and industrial applications where maximum read zone coverage is needed.
Features
- High gain antenna.
- Half Power Beam Width (HPBW) of 40° x 75°.
- Ideal for densely populated tag environments.
- Rugged IP65 rating suitable for outdoor and industrial applications.
- Common applications: asset management, fleet management, industrial portal, vehicle tolling/vehicle access control, warehouse shelving, tool tracking, and more.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
Product Type: | Antenna |
---|---|
ELECTRICAL: | |
Operating Frequency: | FCC (902-928 MHz) |
Polarization: | Linear Polarization |
Gain: | 12 dBi |
Max Read Distance: | Testing Recommended |
Elevation Beamwidth: | Not Published |
Azimuth Beamwidth: | Not Published |
MECHANICAL: | |
Connector Type: | N-Type Female (Connects to N-Type Male) |
Cable: | Not Included |
Mounting: | Four Threaded Studs |
Dimensions: | 582 x 202 x 55.5 mm (22.9 x 7.95 x 2.19 in) |
Weight: | 1.61 kg (3.55 lbs) |
ENVIRONMENT: | |
IP Rating: | IP 65 |
Operating Temperature: | -40° to +85°C (-40° to +185°F) |
