TSL 3419 RAIN RFID Reader Module | 4-Port

SKU:
3419-01

TSL

UPC:
Product Type:
Reader Module
ELECTRICAL:

Air Interface Protocol:
EPCglobal Class 1 Gen 2 (ISO 18000-63)
Operating Frequency:
Global (860–960 MHz) - see data sheet for support regions
Transmit Power:
1-31.5 dBm (1mW-1.4W) Conducted Output Configurable in 0.1 dBm steps
Max Receive Sensitivity:
Up to -94 dBm
Max Receive Distance:
Not published
Max Read Rate:
≥ 1300 tags/second
Data Interface:
USB CDC Virtual COM Port, UART - Serial Port
GPIO:
Four 3.3V I/O line
Power Source:
5-15V DC
MECHANICAL:

Antenna Ports:
Four MMCX 50 mono-static ports
Dimensions:
42 x 68 x 6.7 mm (1.65 x 2.68 x 0.26 in)
Weight:
0.034 kg (0.08 lbs)
ENVIRONMENT:

IP Rating:
Not published
Operating Temperature:
-20° to 60°C (-4° to 140°F)
APPLICATION INTERFACE:

Host API:
Java, C#, C
Demo Software:
Not published
fbt-product:
2958
fbt-product:
1665
fbt-product:
1238
atc-product:
4232
atc-product:
1642
atc-product:
1666
atc-product:
2165
View Full Description View Items Frequently Bought Together
$510.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

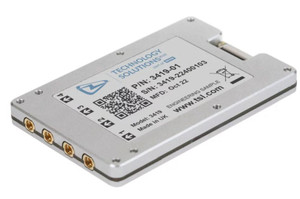

TSL 3419 RAIN RFID Reader Module | 4-Port

TSL® has drawn upon years of industry leading mobile RFID experience to design and manufacture a family of high performance, energy efficient UHF RFID modules that can be easily integrated into OEM applications such as mobile/battery powered devices or small, fixed reader applications. With a slim and compact form factor, the TSL 3419 RAIN RFID Reader Module provides flexible mounting options and support for industry standard USB and serial UART port interfaces. Equipped with the next-generation Impinj E910 reader chip, the TSL 3419 is an ultra high-sensitivity model that enables reading, writing, and authenticating of tags farther and faster with industry-leading receive sensitivity. This module offers multiple RF modes including High Speed Tag Acquisition Mode, High Sensitivity Mode, and Dense Reader Mode (DRM) ensuring optimal performance in even the most challenging environments.

NOTE: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished TSL readers.

Data Sheet  TSL 3419 RAIN RFID Reader Module | 4-Port

Data Sheet - TSL 3419 RAIN RFID Reader Module | 4-Port

Need help selecting the right reader module? Check out our reader module guide.

What's included?

  • TSL 3419 RAIN RFID Reader Module Unit
  • Four MMCX Antenna Port
  • Impinj E910 RFID Core
  • Four M2 Pre-threaded Holes
  • One Year Manufacturer's Warranty

Why buy this module?

The TSL 3419 is a high-performing UHF RFID reader module that offer worldwide support to accommodate global regulations. With four MMCx 50 Ω mono-static antenna ports and four configurable 3.3V I/O lines, this highly-configurable and flexible module provides the freedom to specify an antenna perfectly tuned to your unique application.

Features

  • Impinj E910 RFID Core.
  • RAIN RFID (EPC Class 1 Gen 2, ISO 18000-63) compliant.
  • Support for the entire 860–960 MHz UHF RFID carrier frequency range to accommodate global regulations.
  • Fast Read Rate ( ≥ 1300 tags/s).
  • Applicable for both mobile and fixed reader installations.
  • Lightweight and compact form factor.
  • Built with aluminum chassis that provides strength and excellent heat dissipation.
  • Low Power Consumption.
  • Four MMCX 50 Ω mono-static ports.
  • Up to 31.5 dBm (1.4 W) output power.
  • USB and Serial UART Port interfaces.
  • Comprehensive STORM Protocol SDK included, allowing development in C, C# and Java languages on platforms including .NET, Android, Windows and Linux.
  • Common applications: mobile handhelds/handheld accessories, kiosks/point of sale, compact fixed readers, industrial automation, and long range readers.
Product Type: Reader Module
ELECTRICAL:
Air Interface Protocol: EPCglobal Class 1 Gen 2 (ISO 18000-63)
Operating Frequency: Global (860–960 MHz) - see data sheet for support regions
Transmit Power: 1-31.5 dBm (1mW-1.4W) Conducted Output Configurable in 0.1 dBm steps
Max Receive Sensitivity: Up to -94 dBm
Max Receive Distance: Not published
Max Read Rate: ≥ 1300 tags/second
Data Interface: USB CDC Virtual COM Port, UART - Serial Port
GPIO: Four 3.3V I/O line
Power Source: 5-15V DC
MECHANICAL:
Antenna Ports: Four MMCX 50 mono-static ports
Dimensions: 42 x 68 x 6.7 mm (1.65 x 2.68 x 0.26 in)
Weight: 0.034 kg (0.08 lbs)
ENVIRONMENT:
IP Rating: Not published
Operating Temperature: -20° to 60°C (-4° to 140°F)
APPLICATION INTERFACE:
Host API: Java, C#, C
Demo Software: Not published
