TSL 3417 RAIN RFID Reader Module | Board Mount Version

SKU:
3417-BM-01

TSL

UPC:
Product Type:
Reader Module
ELECTRICAL:

Air Interface Protocol:
EPCglobal Class 1 Gen 2 (ISO 18000-63)
Operating Frequency:
Global (860–960 MHz) - see data sheet for support regions
Transmit Power:
1-31.5 dBm (1mW-1.4W) Conducted Output Configurable in 0.1 dBm steps
Max Receive Sensitivity:
Up to -88 dBm
Max Receive Distance:
Not published
Max Read Rate:
≥ 1300 tags/second
Data Interface:
USB CDC Virtual COM Port, UART - Serial Port
GPIO:
Four 3.3V I/O line
Power Source:
5-15V DC
MECHANICAL:

Antenna Ports:
Solder pads
Dimensions:
42 x 68 x 6.7 mm (1.65 x 2.68 x 0.26 in)
Weight:
0.034 kg (0.08 lbs)
ENVIRONMENT:

IP Rating:
Not published
Operating Temperature:
-20° to 60°C (-4° to 140°F)
APPLICATION INTERFACE:

Host API:
Java, C#, C
Demo Software:
Not published
fbt-product:
1665
fbt-product:
1238
fbt-product:
2958
atc-product:
4231
atc-product:
1642
atc-product:
1666
atc-product:
4229
View Full Description View Items Frequently Bought Together
$348.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

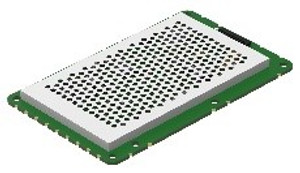

TSL 3417 RAIN RFID Reader Module | Board Mount Version

TSL® has drawn upon years of industry leading mobile RFID experience to design and manufacture a family of high performance, energy efficient UHF RFID modules that can be easily integrated into OEM applications such as mobile/battery powered devices or small, fixed reader applications. The TSL 3417 RAIN RFID Reader Module | Board Mount Version features a direct mount mounting system, solder pad antenna connections, and up to -88 dBm receive sensitivity. Equipped with the next-generation Impinj E710 reader chip, the TSL 3417 sports cutting-edge hardware and the latest anti-collision recognition algorithms, enabling read rates of ≥ 1300 tags/s. This offers multiple RF modes including High Speed Tag Acquisition Mode, High Sensitivity Mode, and Dense Reader Mode (DRM) ensuring optimal performance in even the most challenging environments.

NOTE: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished TSL readers.

Data Sheet  TSL 3417 RAIN RFID Reader Module | Board Mount Version

Data Sheet - TSL 3417 RAIN RFID Reader Module | Board Mount Version

Need help selecting the right reader module? Check out our reader module guide.

What's included?

  • TSL 3417 RAIN RFID Reader Module | Board Mount Version Unit
  • Direct Mount Mounting System
  • Solder Pads
  • Impinj E710 RFID Core
  • One Year Manufacturer's Warranty

Why buy this module?

The TSL 3417 RAIN RFID Reader Module | Board Mount Version is a highly-configurable and flexible module that is perfect for prototyping and proof-of-concept applications. This module features a direct mount mounting system where the module must be soldered directly to the PCB surface.

Features

  • Direct mount mounting system.
  • Solder pad antenna connections.
  • Impinj E710 RFID core.
  • RAIN RFID (EPC Class 1 Gen 2, ISO 18000-63) compliant.
  • Support for the entire 860–960 MHz UHF RFID carrier frequency range to accommodate global regulations.
  • Fast Read Rate ( ≥ 1300 tags/s).
  • Applicable for both mobile and fixed reader installations.
  • Lightweight and compact form factor.
  • Built with aluminum chassis that provides strength and excellent heat dissipation.
  • Low Power Consumption.
  • Up to 31.5 dBm (1.4 W) output power.
  • USB and Serial UART Port interfaces.
  • Comprehensive STORM Protocol SDK included, allowing development in C, C# and Java languages on platforms including .NET, Android, Windows and Linux.
  • Common applications: mobile handhelds/handheld accessories, kiosks/point of sale, compact fixed readers, industrial automation, and long range readers.
Product Type: Reader Module
ELECTRICAL:
Air Interface Protocol: EPCglobal Class 1 Gen 2 (ISO 18000-63)
Operating Frequency: Global (860–960 MHz) - see data sheet for support regions
Transmit Power: 1-31.5 dBm (1mW-1.4W) Conducted Output Configurable in 0.1 dBm steps
Max Receive Sensitivity: Up to -88 dBm
Max Receive Distance: Not published
Max Read Rate: ≥ 1300 tags/second
Data Interface: USB CDC Virtual COM Port, UART - Serial Port
GPIO: Four 3.3V I/O line
Power Source: 5-15V DC
MECHANICAL:
Antenna Ports: Solder pads
Dimensions: 42 x 68 x 6.7 mm (1.65 x 2.68 x 0.26 in)
Weight: 0.034 kg (0.08 lbs)
ENVIRONMENT:
IP Rating: Not published
Operating Temperature: -20° to 60°C (-4° to 140°F)
APPLICATION INTERFACE:
Host API: Java, C#, C
Demo Software: Not published
fbt-product: 1665
fbt-product: 1238
fbt-product: 2958
atc-product: 4231
atc-product: 1642
atc-product: 1666
atc-product: 4229
