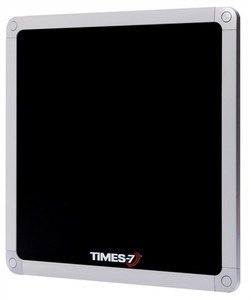

Times-7 A4030C (CP) Indoor RFID Antenna (FCC/ETSI)
Product Description
Times-7 A4030C (CP) Indoor RFID Antenna (FCC/ETSI)
Part of the SlimLine range of multi-purpose antennas, the A4030C is an ultra-low profile circularly polarized flat panel antenna. At just 280 x 280 mm (11 x 11 inch) and only 12 mm (0.5 inch) thick, the A4030C is going places that many antennas simply won't fit. With an even 60 degree beam width in both planes, the A4030C is a versatile, high performance antenna providing up to 6 m / 19.5 ft read range. The rear connector provides for ease of seamless installation, where no visible cable is important.
Data Sheet — Times-7 A4030C (CP) Indoor RFID Antenna (FCC/ETSI)
What's included?
- Times-7 A4030C (CP) Antenna Unit
- 2 Meter SMA Male to RP-TNC Male Cable
- One year standard equipment warranty
Why buy this antenna?
The Times-7 A4030C RFID antenna is built as a high performance CP multi-purpose antenna that is capable of reads up to 6 meters away. The antenna has 60 degree beamwidth in both vertical and horizontal planes and a very thin design.
Features
- Versatile and compact with superb aesthetics.
- Seamless installation using rear connector.
- Up to 6 m / 19.5 ft. read range.
- Just 12mm / 0.5 in. thick.
Specifications
ELECTRICAL:
Operating Frequency:
FCC (902-928 MHz), ETSI (864-869 MHz)
Polarization:
Circular
Gain:
6.5 dBic
Max Read Distance:
Up to 6 m (19.5 ft)
Elevation Beamwidth:
60°
Azimuth Beamwidth:
60°
MECHANICAL:
Connector Type:
SMA female (connects to SMA male)
Cable:
2 Meter SMA Male to RP-TNC Male included
Mounting:
N/A
Dimensions:
280 x 280 x 12 mm (11 x 11 x 0.5 in)
Weight:
0.75 kg (1.6 lbs)
ENVIRONMENT:
IP Rating:
IP 65
Operating Temperature:
-20° to +55°C (-4° to +131°F)
