ThingMagic M7e-MEGA UHF RAIN RFID Reader Module Developer Kit by JADAK
The M7e-MEGA Developer Kit offers as complete solution to design and test new RFID functionality in OEM solutions. This kit provides hardware for ultra high-frequency (UHF) applications such as asset tracking, inventory management, patient safety, and product authentication. The included reader module offers two antenna ports and supports the ability to transmit up to +30 dBm for demanding applications. The edge connections for signals, power, and RF allow the module to be soldered directly to a motherboard as a standard component. The on-board connector allows the module to be mated to a motherboard as an add-on option. The M7e-MEGA platform uses the same Mercury API as other JADAK ThingMagic products, allowing for easy software integration and customization based on form-fit-function SKUs. This developer kit is the perfect way to make the most of your M7e-MEGA reader module.
Note: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers.
Data Sheet — ThingMagic M7e-MEGA UHF RAIN RFID Reader Module Developer Kit by JADAK
View Data SheetNeed help selecting the right reader module? Check out our reader module guide.

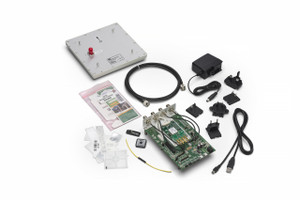

What's included?
- ThingMagic M7e-MEGA UHF RAIN RFID Reader Module Developer Kit Unit by JADAK
- Test Chassis Unit
- 9V AC Power Adapter + Plug Adapter Kit (US, UK, EU, AU)
- Antenna Unit (7.5 in 7 dBiC patch antenna)
- 6 ft RP-TNC to RP-TNC Antenna Cable
- USB cable
- Packet of Sample Tags
- Mercury API
- Full Schematics
Why buy this module?
The ThingMagic M7e-MEGA Developer Kit enables you to build a reader with the perfect balance between convenient size, flexibility of use, and raw RF power. The M7e-MEGA module has a wide RF output range of 30 dBm, an Impinj E510 RAIN RFID reader chip, a high read rate of 600 tags per second, and a tag read range of 9 meters; meanwhile, the developer kit has these features plus it gives you everything you need to connect to a PC and start reading tags. The Mercury API is loaded on your host processor so you can write software to control the module in the DevKit chassis.
View Comparison GuideFeatures
- Rapid testing of RFID integration in existing products.
- Comprehensive development kit with hardware and software.
- Impinj E510 RAIN RFID reader chip.
- Two port antenna connectors.
- Small size, barely larger than a quarter.
- Separate read and write levels, command adjustable.
- High tag read rate.
- Integration for OEMs designing for applications such as access control points, asset tracking, contactless payments, inventory management, patient safety, personal tracking, and product authentication.
Product Specs
| Product Type: | Reader Module Development Kit |
|---|---|
| Air Interface Protocol: | EPCglobal Gen 2V2 (ISO 18000-63) with DRM |
| Operating Frequency: | Global (see data sheet for more info) |
| Transmit Power: | 0 to +30 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Receive Distance: | Over 9 m (30 ft) |
| Max Read Rate: | Up to 600 tags/second |
| Data Interface: | UART 3.3V |
| GPIO: | Four 3.3V Bidirectional Ports |
| Power Source: | DC 3.3 to 5.5 V |
| Antenna Ports: | Two 50 Ohm Connection |
| Dimensions: | 46 x 26 x 4.0 mm (1.8 x 1 x 0.16 in) |
| Weight: | 0.003 kg (0.007 lbs) |
| IP Rating: | Not Published |
| Operating Temperature: | -40° to 60°C (-40° to 140°F) |
| Host API: | C#/.NET, Java, C |
| Demo Software: | Not Published |
