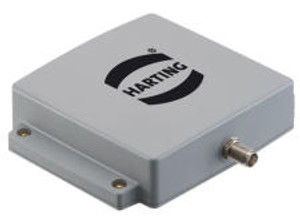

HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna (FCC/ETSI)
HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna (FCC/ETSI)
The HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna is a compact, circular polarized flat panel antenna designed to withstand ruggedized environmental applications. The rugged design of this antenna delivers a high IP 67 rated protection class rating allowing for use in outdoor environments. With a 2 m / 6.6 ft read range and a weather-resistant antenna cover, this antenna is an ideal solution for industrial environments with near-field and far-field applications.
US Data Sheet — Ha-VIS-RF-ANT-MR20-US
EU Data Sheet — Ha-VIS-RF-ANT-MR20-EU
Need help selecting the right antenna? Check out our antenna guide.
What's included?
- HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna Unit
Why buy this antenna?
Equipped with a read range of up to 2 m and an aperture angle of 100°, the HARTING Ha-VIS-RF-ANT-MR20 UHF RFID Mid-Range Antenna is a suitable solution for smart infrastructure and asset management applications.
Features
- 100° aperture angle.
- Very compact design.
- High IP 67 protection.
- TNC Female connector.
- Suitable for outside areas.
- Medium read range (0.2 m - 2 m).
- Tough, weather-resistant polymer blend antenna cover.
- Suitable for harsh environments and outdoor applications.
- Application fields: smart infrastructure and asset management.
- Ideal for industrial environments with near-field and far-field applications.
| ELECTRICAL: | |
|---|---|
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-870 MHz) |
| Polarization: | Circular |
| Gain: | 2.5 dBic (US), 4 dBic (EU) |
| Max Read Distance: | Up to 2 m (6.6 ft) - Strongly depending on reader, configured power, and tags |
| Elevation Beamwidth: | 100° |
| Azimuth Beamwidth: | 100° |
| MECHANICAL: | |
| Connector Type: | TNC female (connects to TNC male) |
| Cable: | Not Included |
| Mounting: | 4 Through-holes Diameter 4.2 mm for M4 Screws |
| Dimensions: | 156 x 126 x 25 mm (6.14 x 4.96 x 0.98 in) |
| Weight: | 0.30 kg (0.66 lbs) |
| ENVIRONMENT: | |
| IP Rating: | IP 67 |
| Operating Temperature: | –20 °C to +55 °C (–4 °F to +131 °F) |
