Product Details
HARTING Ha-VIS Control ETB 92v1 RFID Transponder Tag

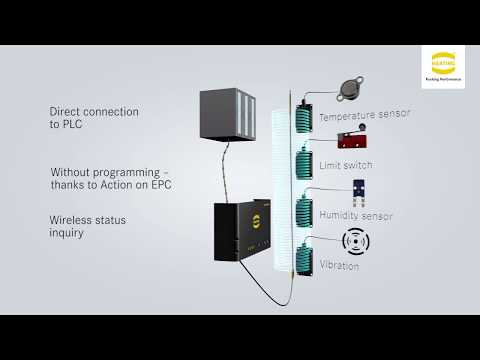

The HARTING Ha-VIS Control ETB 92v1 RFID Transponder Tag is an intelligent UHF transponder acting as a condition monitoring system. In addition to the EPC header and user memory, it communicates the status of 2 digital inputs. Due to these inputs, i.e. open/closed contacts are connected directly via a cable to the transponder.
View Data SheetWhy buy this tag?
The HARTING Ha-VIS Control ETB 92v1 is an extremely robust passive RFID transponder ideally suited for industrial conveyor systems, lifts or elevator systems, cable cars, moving parts (machinery), and intelligent vehicle applications.
Features
- Passive RFID transponder with monitoring function.
- No power supply on transponder necessary.
- Monitoring of 2 inputs.
- Dry contact control via 8 m (24 ft) cable.
- Optimized for function on metal.
- Completely Class 1 Gen 2 compatible.
- Extremely robust and chemically resistant housings.
- Easy fixing (with screws).
- High temperature resistance.
- Protection class IP 67.
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPC Class 1 Gen 2 |
| Operating Frequency: | FCC (900-930 MHz) |
| IC Type: | EM4325 |
| Memory: | EPC 224 bit, User 3072 bit |
| EPC Memory Content: | Not guaranteed unique |
| Max Read Distance On Metal: | Up to 3 m (9 ft) |
| Max Read Distance Off Metal: | Up to 1 m (3 ft) |
| Applicable Surface Materials: | Metallic or non-metallic surfaces |
| Tag Form Factor: | Hard tag |
| Tag Materials: | PPS, fortron (black) |
| Attachment Method: | Screws, rivets, glue |
| Dimensions: | 100 x 60 x 18 mm (3.9 x 2.3 x .70 in) |
| Weight: | 453 g |
| Operating Temperature: | -40° to +85°C (-40° to 185°F) |
