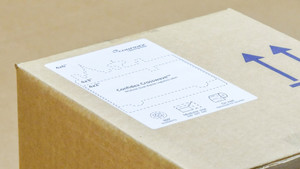

Confidex Crosswave Label Application Example | Crosswave-Sample-Pack

Confidex Crosswave Sample Pack

SKU:
CROSSWAVE-SAMPLE-PACK

atlasRFIDstore

UPC:
fbt-product:
3950
fbt-product:
1665
fbt-product:
2958
atc-product:
1313
atc-product:
1642
atc-product:
1666
atc-product:
1238

Contents of this sample pack are subject to variation based on availability.

View Full Description
$49.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

*The contents of this sample pack are subject to variation based on IC type, material, and availability. Please contact us for more information.

Confidex Crosswave Sample Pack

The Confidex Crosswave Sample pack contains a variety of Confidex Crosswave RFID tags: Confidex 4" x 6" Crosswave Classic™ UHF RFID Label (Monza 4QT), Confidex 4" x 6" Crosswave Classic™ UHF RFID Label (Monza 4E), and the Confidex Crosswave Neo™ UHF RFID Label (NXP UCODE 8). Equipped with the ability to be read from any orientation with these dual dipole inlays, this sample pack allows you flexibility and ease of use, not to mention high performance.

Confidex 4"x 6" Crosswave Classic™ UHF RFID Label (Monza 4E) - Equipped with high RF sensitivity and extremely reliable location accuracy, the Confidex Crosswave Classic™ UHF RFID provides fast location updates making it an ideal solution for logistics applications.

Confidex 4"x 6" Crosswave Classic™ UHF RFID Label (Monza 4QT) - Similar to the Monza 4E version, just with a different chip. This chip features higher TID and User Memory.

Confidex 4" x 6" Crosswave Neo™ UHF RFID Label (NXP UCODE 8) - The Crosswave Neo™ has unique dual-dipole behavior and leverages the NXP UCODE 8 IC. This label has 360-degree readability which offers reliable and fast logistics even in challenging environments.

What's included?

Why buy this sample pack?

The Confidex Crosswave Sample Pack allows you to test and pick the perfect dual-dipole tag for your application with varying IC's to choose from and multiple quantities of each type.

We can customize any pack to meet your needs. Contact us for more information.

Features

  • 18 RFID dual-dipole tags.
  • Equipped with different IC types for your unique applications.

Product Details

Confidex 4"x 6" Crosswave Classic™ UHF RFID Label:

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
Global (860-960 MHz)
IC Type:
Impinj Monza 4E
Impinj Monza 4QT
Memory:
Monza 4E: EPC 496 Bits, TID 64 Bits, User 128 Bits
Monza 4QT: EPC 128 Bits, TID 96 Bits, User 512 Bits
EPC Memory Content:
Not Guaranteed Unique
Max Read Distance:
Up to 10 m (33 ft)
Applicable Surface Materials:
Non-metallic Surfaces
MECHANICAL:

Tag Form Factor:
Label
Tag Materials:
Matte Coated Paper Face
Recommended Ribbon:
Full Resin
Attachment Method:
General Purpose Permanent Adhesive
Dimensions:
101.6 x 152.4 x 0.2 mm (4 x 6 x 0.008 in)
Weight:
3.1 g
ENVIRONMENT:

Operating Temperature:
-35° to +70°C (-31° to +158°F)
Confidex 4"x 6" Crosswave Neo™ UHF RFID Label:

ELECTRICAL:

Air Interface Protocol:
EPCglobal Gen2v2
Operating Frequency:
Global (865-928 MHz)
IC Type:
NXP UCODE 8
Memory:
EPC 128 Bits, TID 96 Bits, User 0 Bits
EPC Memory Content:
Not Guaranteed Unique
Max Read Distance:
On Plastic: Up to 12 m (39 ft)
On Cardboard: Up to 10m (33 ft)
Applicable Surface Materials:
Non-metallic Surfaces
MECHANICAL:

Tag Form Factor:
Label
Tag Materials:
Matte Coated Paper Face
Recommended Ribbon:
Full Resin
Attachment Method:
General Purpose Permanent Adhesive
Dimensions:
101.6 x 155.4 x 0.2 mm (4 x 6 x 0.01 in)
Weight:
1 g
ENVIRONMENT:

Operating Temperature:
-35° to +70°C (-31° to +158°F)
