*This product is reaching end-of-life and will soon be discontinued. Please contact us for a recommended replacement product.*

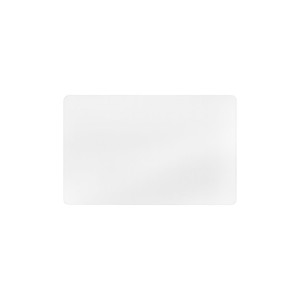

Zebra UHF RFID Cards with Mag Stripe
Zebra's passive RFID card provides advanced sensitivity for enhanced read rates and range. It offers full read/write capabilities, and you can use it worldwide with any EPC UHF operational band. The Zebra UHF RFID Cards contains Zebra's patent-pending antenna design and Impinj's state-of-the-art Monza 4QT chip.
For bulk quantities or for color/two-sided printing, please contact us.
Data Sheet — Zebra UHF RFID Cards with Mag Stripe
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
These Zebra UHF RFID cards are perfect for applications like employee ID cards, Student and faculty ID cards, access control cards, membership and loyalty cards, personalized gift cards, visitor ID cards, and government licenses.
- ISO/IEC-7810-2002 compliant.
- Zebra’s patent-pending inlay antenna design.
- Passive operation (no battery required).
- Ultrahigh-frequency technology.
- Multi-application card available with and without magnetic stripe.
|Air Interface Protocol:||EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)|
|Operating Frequency:||Global (860-960 MHz)|
|IC Type:||Impinj Monza 4QT™|
|Memory:||EPC 128 bit, User 512 bit, TID 48 bit|
|EPC Memory Content:||Not guaranteed unique|
|Max Read Distance:||Up to 15.2 m (50 ft)|
|Applicable Surface Materials:||Any|
|Tag Form Factor:||Card tag|
|Tag Materials:||PVC, PET|
|Attachment Method:||Not published|
|Dimensions:||53.98 x 85.60 mm (2.125 x 3.37 in)|
|Operating Temperature:||-40° to +85°C (-40° to +185°F)|
