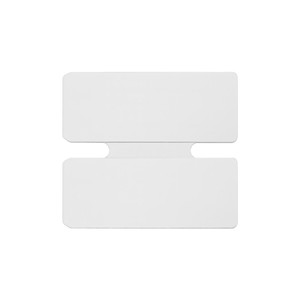

Zebra Silverline Blade II+™ RFID Tag by Confidex | M780
Zebra Silverline Blade II+™ RFID Tag by Confidex | M780
The Zebra Silverline Blade II+™ RFID Tag by Confidex delivers an immense improvement in memory capacity while maintaining impressive read range. This small and unobtrusive RFID tag sports a read range with distances up to 7 m (23 ft) on-metal and up to 3 m (10 ft) on plastic. Equipped with the new Impinj M780 chip, the Silverline Blade II+™ provides additional memory, making it great for applications where cloud infrastructure is not available . This tag proves to be up to the challenge of the most demanding RFID applications in a variety of industries. The Silverline Blade II+™ is ideal for asset tracking of chemical drums, mobile computers, printers, antennas, wheelchairs, IV pumps, and more.
Data Sheet — Zebra Silverline Blade II+™ RFID Tag by Confidex | M780
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Zebra Silverline Blade II+™ RFID Tag by Confidex is part of the next generation of Silverline labels, offering high memory without sacrificing read range, especially on metal. The use of the new Impinj M780 makes the Zebra Silverline Blade II+™ ideal for applications without a stable connection to the cloud, by storing more information within the tag itself.
Features
- IP 68 rated.
- Optimized for asset tagging.
- Printable, metal-mount label tag.
- Can be applied on a curved surface.
- Tolerates industrial washing with standard solvents.
- New and higher memory Impinj M780 IC.
- Read distances up to 7 m (23 ft) on metal.
- Ideal applications include manufacturing, automotive, IT asset tracking, healthcare, and more.
Printer Compatibility
- Zebra ZT411 On-Metal RFID Printer
- Zebra ZT410 On-Metal RFID Printer
- Other Zebra printers are not recommended or supported
- Zebra 5095 Resin Ribbon recommended
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | Impinj M780 |
| Memory: | EPC 496 bits, User 128 bits, TID 96 bits |
| EPC Memory Content: | Unique random 96 bit EPC in every label |
| Max Read Distance: | On-Metal: Up to 7 m (23 ft) On-Plastic: Up to 3 m (10 ft) On-Liquid: Up to 5 m (16 ft) |
| Applicable Surface Materials: | Any surface, optimized for metal |
| MECHANICAL: | |
| Tag Form Factor: | Hard label tag |
| Tag Materials: | Printable white PET (Thermal Transfer) |
| Recommended Ribbon: | Zebra 5095 full resin |
| Recommended Printer: | Zebra ZT411 On-Metal RFID Printer |
| Attachment Method: | High tack adhesive |
| Dimensions: | 60 x 25 x 1.4 mm (2.36 x 0.98 x 0.055 in) |
| Weight: | 0.9 g |
| ENVIRONMENT: | |
| Operating Temperature: | -35° to +85°C (-31° to +185°F) |
