Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Reader | 4-Port

SKU:
FXR90001-400000-US

Zebra

UPC:
Product Type:
Fixed Reader
ELECTRICAL:

Air Interface Protocol:
ISO 18000-6C (EPC Class 1 Gen 2 V2)
Operating Frequency:
FCC (902-928 MHz)
Transmit Power:
33 dBm
Max Receive Sensitivity:
-92 dBm
Max Read Distance:
Not published
Max Read Rate:
1,300+ tag reads per second
Data Interface:
Ethernet with USB Host & Client
GPIO:
4 inputs, 4 outputs, optically isolated
Power Source:
Power supply if selected or POE
MECHANICAL:

Antenna Ports:
4 External RP-TNC female antenna ports (connects to RP-TNC male)
Dimensions - With Flush Mount Brackets:
335 x 254 x 73.8 mm (13.2 x 10.0 x 2.9 in)
Dimensions - Without Flush Mount Brackets:
291 x 254 x 70.8 mm (11.5 x 10.0 x 2.8 in)
Weight - With Flush Mount Brackets:
3.07 kg (6.75 lbs)
Weight - Without Flush Mount Brackets:
2.86 kg (6.30 lbs)
ENVIRONMENT:

IP Rating:
IP 65 and IP 67
Operating Temperature:
-40° to +65° C (-40° to +149° F)
APPLICATION INTERFACE:

Host API:
NodeJS, Python, Android Studio SDK
Demo Software:
123RFID Desktop
fbt-product:
4637
fbt-product:
4635
fbt-product:
4636
atc-product:
3801
atc-product:
4423
atc-product:
4634
atc-product:
4457

The 5G equipped models of the FXR90 Reader MUST be used in conjunction with a compatible FXR90 4G|5G|GPS Antenna.

To connect the FXR90 Reader to a network, the FXR90 MUST be used in conjunction with a compatible Zebra M12 to RJ45 Ethernet Cable.

View Full Description View Items Frequently Bought Together
MSRP: $2,799.00
$2,265.00
(You save $534.00 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

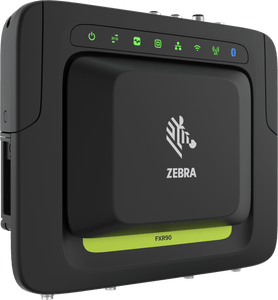

Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Reader | 4-Port

Maximize asset tracking capabilities in the harshest environments with the Zebra FXR90 Ultra-Rugged Integrated RAIN RFID readers. With an RFID antenna built in, and options for Wi-Fi 6, Bluetooth®, and 5G, the FXR90 is easy to use and simple to deploy and manage across any network. Ruggedized design and robust, industry-leading performance, such as read rates of 1,300+ tags per second, ensures FXR90 RFID readers greater visibility and real-time data wherever you need it most. The dual IP65/67 sealing and extended operating temperature range allow workers to track critical items even where dirt and moisture infiltration or extreme temperatures are common. Optimize your asset management with Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Readers, delivering the high performance, greater connectivity and easier deployment that your workflow demands and your business requires, anywhere within your facility or outside its four walls.

NOTE: In order to connect the FXR90 Reader to a network, the FXR90 MUST be used in conjunction with a compatible M12 to RJ45 Ethernet Cable. 5G equipped models of the FXR90 Reader MUST be used in conjunction with a compatible FXR90 4G|5G|GPS AntennaContact us for details.

Configuration Options

Additional configuration options are available to meet your needs. Optional Wi-Fi 6, Bluetooth v5.3, NFC Tag for Tap-to-Pair, 4G/5G Cellular Capabilities with CBRS, one physical nano SIM slot, one eSIM, and GPS are available. Contact Us today for more information.

Data Sheet— Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Reader | 4-Port

Data Sheet— Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Reader | 4-Port

Need help selecting the right reader? Check out our reader guide.

What's included?

  • Zebra FXR90 Ultra-Rugged Integrated RAIN RFID Reader | 4-Port unit (8-port version also available)
  • Flush Mounting Bracket
  • Power Supply Kit with Power Supply and Line Cords, if selected above (Please note that using a non-manufacturer approved power supply voids the warranty)

Why buy this reader?

Designed to be easily deployed in the toughest conditions, Zebra FXR90 RFID Readers are built to perform reliably in a wide range of harsh environments—both indoors and outside. With connectivity options like WiFi 6, Bluetooth 5.3, and 5G, FXR90 RFID readers can be configured to fit your specific RFID needs in any environment.

Features

  • Integrated Cross-Polarized Linear Antenna.
  • 4 External Antenna Ports.
  • WiFi 6 and Bluetooth 5.3 - if selected above.
  • 5G with CBRS - if selected above.
  • Support for PoE and PoE+.
  • Compact, streamlined layout.
  • Rugged design for tough environments.
  • VESA mount option for universal mounting.
  • Read rate of over 1,300 tags per second.
  • IoT Connector enables easy data transfer to the cloud.
  • Common applications: asset tracking, manufacturing automation, transportation, logistics, and item locating.

Recommended Power & Communication Accessories

The following power and communication options are available for the Zebra FXR90 Ultra-Rugged Fixed RAIN RFID Reader. Additional accessories are available to meet your needs. Contact us for details.

Power Accessories

Communication Accessories

Recommended Professional Services

At atlasRFIDstore, we offer a full range of professional services to ensure that your RFID hardware runs at it's optimal capacity. Designed specifically for RFID readers, the following professional services will reduce the amount of time it takes to get your reader ready for use.

Contact Us today for more information.

Video

Product Type: Fixed Reader
ELECTRICAL:
Air Interface Protocol: ISO 18000-6C (EPC Class 1 Gen 2 V2)
Operating Frequency: FCC (902-928 MHz)
Transmit Power: 33 dBm
Max Receive Sensitivity: -92 dBm
Max Read Distance: Not published
Max Read Rate: 1,300+ tag reads per second
Data Interface: Ethernet with USB Host & Client
GPIO: 4 inputs, 4 outputs, optically isolated
Power Source: Power supply if selected or POE
MECHANICAL:
Antenna Ports: 4 External RP-TNC female antenna ports (connects to RP-TNC male)
Dimensions - With Flush Mount Brackets: 335 x 254 x 73.8 mm (13.2 x 10.0 x 2.9 in)
Dimensions - Without Flush Mount Brackets: 291 x 254 x 70.8 mm (11.5 x 10.0 x 2.8 in)
Weight - With Flush Mount Brackets: 3.07 kg (6.75 lbs)
Weight - Without Flush Mount Brackets: 2.86 kg (6.30 lbs)
ENVIRONMENT:
IP Rating: IP 65 and IP 67
Operating Temperature: -40° to +65° C (-40° to +149° F)
APPLICATION INTERFACE:
Host API: NodeJS, Python, Android Studio SDK
Demo Software: 123RFID Desktop
