Product Details
*This product is reaching end-of-life and will soon be discontinued. Please contact us for a recommended replacement product.*

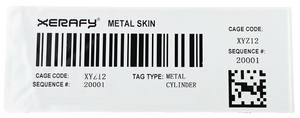

Xerafy Metal Skin Mercury RFID Label | NXP UCODE 9
Xerafy's Metal Skin Mercury RFID Labels are the largest labels in the Metal Skin series. The extensive printable area on the front of the label is optimized for on-site printing and encoding, making it an ideal solution for inventory management and asset tracking systems. Equipped with the NXP UCODE 9 IC, these labels have 96 bits of EPC memory and 96 bits of TID memory. The Metal Skin Mercury supports RF identification, with the ability to be identified from up to 8 m (26 ft) away while on metal and up to 6 m (19 ft) away while on non-metal surfaces such as plastic. The Metal Skin Mercury is flexible and can be applied to curved surfaces. With an IP 68 rating, this RFID label is waterproof and dustproof.
View Data SheetNeed help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Xerafy Metal Skin Mercury RFID Label combines a printable, visible label with a durable, flexible, and waterproof RFID tag. This RFID label helps assets stay visible throughout the entire supply chain, whether or not RFID readers are present.
View Xerafy Comparison GuideFeatures
- Versatile on-and-off metal tag.
- Flexible label can be applied to curved surfaces.
- Printable face for human readability.
- Waterproof, IP 68 rated.
- Industrial adhesive enables easy mounting to metal, plastic, and other materials.
- Common applications: global supply chain, logistics, datacenter servers, and e-commerce.
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| IC Type: | NXP UCODE 9 |
| Memory: | EPC 96 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, Synchronized |
| Max Read Distance - On Metal: | Up to 8 m (26.25 ft) |
| Max Read Distance - Off Metal: | Up to 6 m (19.69 ft) |
| Applicable Surface Materials: | Metallic and Non-Metallic Surfaces |
| Tag Form Factor: | Label Tag |
| Tag Materials: | White Thermal Transfer Face Stock |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Industrial Adhesive |
| Dimensions: | 101.6 x 38 x 0.76 mm (4 x 1.5 x 0.03 in) |
| Weight: | 4.4 g |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
