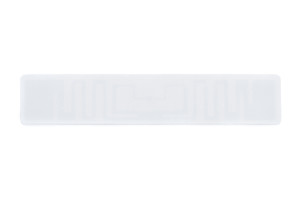

Vulcan RFID Label 2.95" x 0.59" - with ARC Certified BoingTech BT-0573 Inlay

SKU:
VUL-FIRE-UC8-WWINLY-ARC

Vulcan RFID

UPC:
Product Type:
Tag
ELECTRICAL:

Air Interface Protocol:
ISO 18000-6C
Operating Frequency:
Global (860-960 MHz)
IC Type:
NXP UCODE 8
Memory:
EPC 128 Bits, TID 96 Bits, User 0 Bits
EPC Memory Content:
Unique
Max Read Distance:
Testing Recommended
Applicable Surface Materials:
Glass, Plastic, Wood, Cardboard
ARC Approved Categories:
F, I, L
MECHANICAL:

Tag Form Factor:
White Wet Label Tag, No Perforation
Tag Materials:
Printable White Film (Thermal Transfer)
Attachment Method:
General Purpose Permanent Acrylic Based Adhesive
Dimensions:
75 x 15 mm (2.95 x 0.59 in)
Weight:
1 g
ENVIRONMENT:

Operating Temperature:
-40° to +85°C (-40° to +185°F)
fbt-product:
1316
fbt-product:
3475
fbt-product:
1665
atc-product:
2943
atc-product:
2263
atc-product:
2958
atc-product:
3568
View Full Description View Items Frequently Bought Together

Contact Us for Availability

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

Vulcan RFID Label 2.95" x 0.59" - with ARC Certified BoingTech BT-0573 Inlay (NXP UCODE 8)

These blank Vulcan RFID Labels are a recommended solution for product retail suppliers looking for a tag that complies with the current RFID tag mandates from Walmart and Nordstrom. The Vulcan RFID Label with ARC Certified BoingTech BT-0573 Inlay features the high-performance NXP UCODE 8 IC, which provides excellent read performance for operations in retail with applications such as apparel hang tags, supply chain management, and shipping services. Other typical applications include but are not limited to corrugated cases, pallet placard labels, and asset management. With a PET substrate rather than paper, this inlay exhibits a heightened durability allowing it to last longer. From tracking along the supply chain to loss prevention, the Vulcan RFID Label - with ARC Certified BoingTech BT-0573 UC8 Inlay is an optimal label featuring an enhanced read sensitivity with 128 bits of EPC memory. The integrated BT-0573 inlay is on the approved inlay list by Auburn University's RFID Lab ARC Program when used in retail applications and complies with categories F, I, and L. Retailers and brand owners can deploy these Vulcan RFID labels globally, as they comply with frequency regulations set up in the US (FCC), EU (ETSI), and Asia.

 Vulcan RFID ARC Certified Labels

IC Type & Memory

Form Factor Dimensions Product Code ARC Certifications
 Impinj M730
 EPC 128 Bits, TID 96 Bits
Paper Label Tag
74 x 15 mm
(2.9 x 0.59 in)
 VUL-EOS-430-M730-ARC  F, I, L, O, Q, R, W5, W6, Y2
54 x 34 mm
(2.126 x 1.34 in)
 VUL-EOS-300-M730-ARC  F, I, L, O, Q, R, W5, W6, Y2
 White Wet Label Tag 44 x 18 mm
(1.73 x 0.71 in)
VUL-EOS-241-M730-ARC  F, I, O, Q, W5, W6
47 x 23 mm
(1.85 x 0.91 in)
VUL-EOS-261-M730-ARC  F, O, Q, R, W5, W6, Y2
75 x 13 mm
(2.95 x 0.51 in)
VUL-EOS-450-M730-ARC  F, I, L, O, Q, R, W5, W6, Y2, Z
 NXP UCODE 8
 EPC 128 Bits, TID 96 Bits
75 x 15 mm
(2.95 x 0.59 in)
 VUL-FIRE-UC8-WWINLY-ARC
 F, I, L
 NXP UCODE 9
 EPC 96 Bits, TID 96 Bits
97 x 27 mm
(3.82 x 1.06 in)
VUL-EOS-500-U9-ARC P

Data Sheet  Vulcan RFID Label 2.95" x 0.59" - with ARC Certified BoingTech BT-0573 Inlay (NXP UCODE 8)


*Data sheet includes retired ARC specs. Contact us for details.*

Why buy this tag?

With a PET substrate rather than paper, this inlay exhibits a heightened durability allowing it to last longer. Suitable for use in Walmart general merchandise tagging applications, these blank 2.95" x 0.59" RFID labels are designed for use in printers under the assumption that the customer will do the printing and encoding. To assist customers with the printing and encoding of these blank RFID labels, Atlas offers a comprehensive Walmart Supplier Setup Service which guides customers through printing and encoding these RFID labels with ease.

Alternatively, Atlas offers the convenient service of printing and encoding these RFID labels before shipping them to you, allowing you to focus on other aspects of your operation. Contact us today for more information.

Features

  • Worldwide operation in all RFID UHF bands (860-960 MHz).
  • ISO/IEC 18000-6C compliance.
  • Thermal transfer, smooth film label without perforation between labels.
  • 3 in (76.2 mm) core.
  • Common applications: labeling of packaging material, compliance labeling, and retail, point of sale, and work in process.
  • Ideal items to be tagged: electronics, home goods, sporting goods, toys, and more.

Compatibility

Need help selecting the right tag? Check out our tag guide.

Product Type: Tag
ELECTRICAL:
Air Interface Protocol: ISO 18000-6C
Operating Frequency: Global (860-960 MHz)
IC Type: NXP UCODE 8
Memory: EPC 128 Bits, TID 96 Bits, User 0 Bits
EPC Memory Content: Unique
Max Read Distance: Testing Recommended
Applicable Surface Materials: Glass, Plastic, Wood, Cardboard
ARC Approved Categories: F, I, L
MECHANICAL:
Tag Form Factor: White Wet Label Tag, No Perforation
Tag Materials: Printable White Film (Thermal Transfer)
Attachment Method: General Purpose Permanent Acrylic Based Adhesive
Dimensions: 75 x 15 mm (2.95 x 0.59 in)
Weight: 1 g
ENVIRONMENT:
Operating Temperature: -40° to +85°C (-40° to +185°F)
