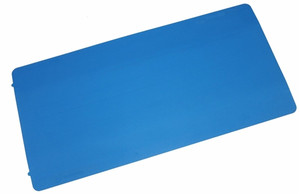

Times-7 A5530 (Linear) Outdoor RFID Antenna (FCC/ETSI)

SKU:
70890

Times-7

UPC:
633131662139
Product Type:
Antenna
ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), ETSI (865-867 MHz)
Polarization:
Linear
Gain:
10 dBi
Max Read Distance:
Not Published
Elevation Beamwidth:
25°
Azimuth Beamwidth:
70°
MECHANICAL:

Connector Type:
SMA female side fly lead, 300 mm/1 ft (connects to SMA male)
Cable:
Not Included
Mounting:
Not published
Dimensions:
1220 x 600 x 12 mm (48 x 24 x 0.5 in)
Weight:
8.4 kg (18.5 lbs)
ENVIRONMENT:

IP Rating:
IP 66
Operating Temperature:
0° to +50°C (32° to +122°F)
View Full Description View Items Frequently Bought Together

Contact Us for Availability

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Times-7 A5530 (Linear) Outdoor RFID Antenna (FCC/ETSI)

Part of Times-7’s exclusively unique range of ground antennas the A5530 is a high performance ground mat antenna optimised for applications involving moving products, assets and people. Offering unmatched performance in event and race timing, the A5530 is ideal for RFID deployments where an ultra low profile, robust and weather resistant antenna is required. At just 12 mm / 0.5 in. thick, the durable A5530 has superb aesthetics, IP rating, and load bearing capabilities. With increased versatility, flexibility and performance over traditional side antennas, the unique A5530 ground mat antenna is in a class of its own.

Data Sheet  Times-7 A5530 (Linear) Outdoor RFID Antenna (FCC/ETSI)


Need help selecting the right antenna? Check out our antenna guide.

What's included?

  • Times-7 A5530 (Linear) Outdoor RFID Antenna Unit
  • SMA female side fly lead (300 mm/1 ft)
  • One year standard equipment warranty

Why buy this antenna?

The Times-7 A5530 (Linear) RFID antenna is designed as a high performance ground antenna with pleasing aesthetics and a semi-outdoor IP rating of 66.

Features

  • Ultra-low profile ground mat antenna.
  • Just 12 mm / 0.5 in. thick.
  • Robust design and superb aesthetics.
  • Ideal for event and race timing applications.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

Video

Product Type: Antenna
ELECTRICAL:
Operating Frequency: FCC (902-928 MHz), ETSI (865-867 MHz)
Polarization: Linear
Gain: 10 dBi
Max Read Distance: Not Published
Elevation Beamwidth: 25°
Azimuth Beamwidth: 70°
MECHANICAL:
Connector Type: SMA female side fly lead, 300 mm/1 ft (connects to SMA male)
Cable: Not Included
Mounting: Not published
Dimensions: 1220 x 600 x 12 mm (48 x 24 x 0.5 in)
Weight: 8.4 kg (18.5 lbs)
ENVIRONMENT:
IP Rating: IP 66
Operating Temperature: 0° to +50°C (32° to +122°F)
