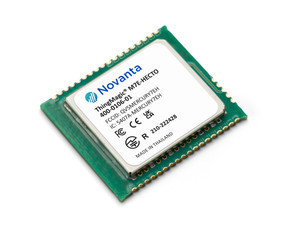

The ThingMagic M7e-HECTO is a small, power-optimized UHF RAIN RFID module. Featuring the Impinj E310 RAIN RFID reader chip, the module has very low power consumption and is ideal for battery-operated, low cost, small form-factor portable readers. ThingMagic HECTO’s wide RF output range (0 dBm to +27 dBm) is important for the read/write requirements for RFID-enabled printers and tag commissioning stations. It features a surface mount package designed for the efficiency of SMT manufacturing, driving down the total cost for embedding RFID in volume applications, including handheld devices, consumables authentication, device configuration and access control. The M7e-HECTO reader module saves space, battery power, and money; it is small enough to fit just about anywhere.
NOTE: This product is a reader module – NOT a finished RFID reader – and is meant for OEM and developers to embed into products or to be used in the creation of a new finished reader. If you are interested in an existing finished reader product, check out our line of finished ThingMagic readers.
Data Sheet — ThingMagic M7e-HECTO UHF RAIN RFID Reader Module by JADAK
Need help selecting the right reader module? Check out our reader module guide.
What's included?
- ThingMagic M7e-HECTO UHF RAIN RFID Reader Module Unit by JADAK Unit
Why buy this module?
The ThingMagic M7e-HETCO embedded RFID module has a wide RF output range of 27 dBm, an Impinj E310 RAIN RFID reader chip, a high read rate of 300 tags per second, and a tag read range of 4.5 meters. It does all of this without sacrificing any flexibility or power as it is extremely portable and is designed to be used in high volume applications. Slightly greater in size, its dimensions are 22 L x 26 W x 3 H mm. It is drop-in compatible with the M6e-Nano with the same footprint and pinout.
Features
- Impinj E310 RAIN RFID reader chip.
- Small size, barely larger than a quarter.
- Separate read and write levels, command adjustable.
- Single board-edge antenna connection.
- High tag read rate of up to 300 tags per second.
- Applications: mobile devices, tag commissioning stations, battery-operated devices, smartphone accessories, medical equipment, kiosks, and vending machines.
| ELECTRICAL: | |
|---|---|
| Air Interface Protocol: | EPCglobal Gen 2V2 (ISO 18000-63) |
| Operating Frequency: | Global (see data sheet for more info) |
| Transmit Power: | 0 to +27 dBm |
| Max Receive Sensitivity: | Not Published |
| Max Receive Distance: | Over 4.5 m (15 ft) |
| Max Read Rate: | Up to 300 tags/second |
| Data Interface: | UART 3.3V |
| GPIO: | Four 3.3V Bidirectional Ports |
| Power Source: | DC 3.3 to 5.25 V |
| MECHANICAL: | |
| Antenna Ports: | Single 50 Ohm connection |
| Dimensions: | 22 x 26 x 3.0 mm (0.866 x 1.0 x 0.12 in) |
| Weight: | 0.003 kg (0.007 lbs) |
| ENVIRONMENT: | |
| IP Rating: | Not Published |
| Operating Temperature: | -40° to 60°C (-40° to 140°F) |
| APPLICATION INTERFACE: | |
| Host API: | C#/.NET, Java, C |
| Demo Software: | Not Published |
