Laird S9025PL (LHCP) Outdoor RFID Antenna (FCC)
$203.31
- UPC:
- 633131662610
Laird | SKU: S9025PLNF
Accessories & Related Products
Key Features
- Length: 7.6 m (25 ft)
- Connectors: RP-TNC Male to N-Type Male
- Cable Type: 240 Series Coaxial
Key Features
- Length: 10.67 m (35 ft)
- Connectors: RP-TNC Male to N-Type Male
- Cable Type: 400 Series Coaxial
Key Features
- Type: Articulating Wall/Pole Mounting Bracket
- Compatible With: 5" x 5" RFID Mini-Antennas
- Features: White finish, full articulation, hardware included
Key Features
- Type: Articulating Wall/Pole Mounting Bracket
- Compatible With: 5" x 5" RFID Mini-Antennas
- Features: Black finish, full articulation, hardware included
Key Features
- Autopilot: Optimizes reader operation for environment.
- 4 Antenna Ports, expandable to 32 with Antenna Hub.
- RF Sensitivity: -84 dBm for greater accuracy and range.
Key Features
- Expands antenna ports to 32 for R420, 16 for R220, 8 for R120
- Includes Impinj Speedway Antenna Hub and GPIO Adapter
- Requires separate cable purchase and firmware update for R220
Key Features
- Gain: 5.5 dBic Left Hand Circular Polarization
- Size: 132 mm x 132 mm (5.2" x 5.2") Outdoor Panel Antenna
- IP Rating: IP 67 for outdoor and harsh environments
Key Features
- Diverse Form Factors: Wet inlays, wire tags, hard tags, etc.
- Includes Industry-Leading ICs: Monza R6-P, NXP UCODE 8, Impinj M730, M830
- Variety of Sizes: As small as 1.27 cm (0.5 in) up to 10.16 x 5.08 cm (4 x 2 in)
Product Details
*Subject to availability. Please see Vulcan RFID S9025PL (LHCP) Outdoor RFID Antenna (FCC) for an alternative product.

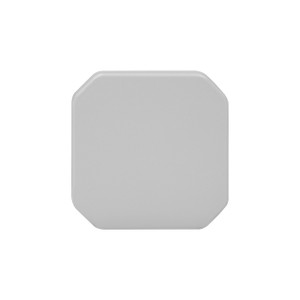

Laird S9025PL (LHCP) Outdoor RFID Antenna (FCC)
The Laird S9025P is the latest addition to the high-performance RFID antenna lineup and is the only UHF RFID antenna available to the market that offers no-compromise performance in a small package. At only 5.2” square the antenna offers a gain specification of 5.5 dBic and axial ratio better than 2 dB. In effect the antenna is providing the performance one would expect of a much larger antenna. The antenna is not only mechanically robust but is less likely to be exposed to excessive damage by virtue of its reduced size.
View Data SheetNeed help selecting the right antenna? Check out our antenna guide.
What's included?
- Laird S9025PL (LHCP) Outdoor RFID Antenna (FCC)
Why buy this antenna?
The Laird S9025PR RFID Antenna offers exceptional read range for its size. It also sports an IP rating of 67 which makes it suitable for harsh environments.
Features
- Circularly polarized.
- Low VSWR and axial ratio.
- Rugged, ultra heavy duty construction.
- IP 67 rated.
- Weather and UV resistant radome.
- High performance in a small package.
- Wide range of connector and cable options.
- Left hand CP version.
Information
We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.
Product Specs
| Product Type: | Antenna |
|---|---|
| Operating Frequency: | FCC (902-928 MHz) |
| Polarization: | Left hand circular |
| Gain: | 5.5 dBic |
| Max Read Distance: | Not published |
| Elevation Beamwidth: | 100° |
| Azimuth Beamwidth: | 100° |
| Connector Type: | N-Type female (connects to N-Type male) |
| Cable: | Not included |
| Mounting: | Threaded stud |
| Dimensions: | 132 x 132 x 18 mm (5.2 x 5.2 x 0.71 in) |
| Weight: | 0.36 kg (0.8 lbs) |
| IP Rating: | IP 67 |
| Operating Temperature: | -30° to +70°C (-22° to +158°F) |
