Laird Bistatic PRL90209 (CP) RFID Antenna (FCC)

SKU:: PRL90209-FNF
UPC:: 692193898207
ELECTRICAL:
Operating Frequency:: FCC (902-928 MHz)
Polarization:: Circular Polarization
Gain:: 9.0 dBic
Elevation Beamwidth:: 70°
Azimuth Beamwidth:: 70°
MECHANICAL:
Connector Type:: N-Type female (connects to N-Type male)
Cable:: Not Included
Mounting:: 4 Threaded Studs
Dimensions:: 259 x 575 x 33.5 mm (10.1 x 22.6 x 1.3 in)
Weight:: 1.9 kg (4.2 lbs)
ENVIRONMENT:
IP Rating:: IP 67
Operating Temperature:: -25° to +70°C (-13° to +158°F)
fbt-product:: 2838
fbt-product:: 2432
fbt-product:: 1238
atc-product:: 1665
atc-product:: 1647
atc-product:: 2958
atc-product:: 3622

View Full Description

MSRP: $358.14

$318.00

(You save $40.14 )

Current Stock:

Quantity

Adding to cart… The item has been added

Save to List

Need a Quote?

Frequently Bought Together

Total Price:
Add to Cart

Please choose options for all selected products

This Item: Laird Bistatic PRL90209 (CP) RFID Antenna (FCC)
MSRP: $358.14

Was:

Now: $318.00

(You save $40.14 )

Choose Options

Antenna Cable: Recommended None 12 ft Cable (195 Series, RP-TNC Male to N-Type Male) [$63] 25 ft Cable (240 Series, RP-TNC Male to N-Type Male) [$98] 35 ft Cable (400 Series, RP-TNC Male to N-Type Male) [$152]

Specs

Description

Lard Bistatic PRL90209 (CP) RFID Antenna (FCC)

The Laird PRL90209 antenna is a circularly polarized panel antenna that provides reception and transmission of signals in the 902-928 MHz frequency band. Laird’s industry-renowned design methodology achieves maximum efficiency and performance across the entire frequency band. Both VSWR and axial ratios are excellent and allow the user to achieve the maximum performance for an antenna of this type. The antenna is housed in a heavy duty radome enclosure that can be directly wall mounted. The antenna is offered with an integrated fixed connector with a variety of connector types.

Data Sheet — Laird Bistatic PRL90209 (CP) RFID Antenna (FCC)

Need help selecting the right antenna? Check out our antenna guide.

What's included?

Laird PRL90209 RFID Antenna Unit

Why buy this antenna?

The Laird PRL90209 circularly polarized RFID antenna can act as two monostatic antennas, or one bistatic antenna.

Features

Low profile.
Extremely low VSWR and axial ratio.
Weather and UV resistant radome.
Wide range of connector options.
Left hand and right hand CP versions.
IP67 enclosure.

Information

We can supply you with ANY length custom cable with ANY type of connectors. If you don't see the cable you need, please contact us so we can assist you.

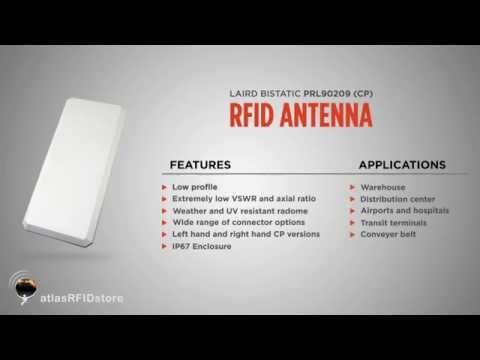

Video

ELECTRICAL:
Operating Frequency:	FCC (902-928 MHz)
Polarization:	Circular Polarization
Gain:	9.0 dBic
Elevation Beamwidth:	70°
Azimuth Beamwidth:	70°
MECHANICAL:
Connector Type:	N-Type female (connects to N-Type male)
Cable:	Not Included
Mounting:	4 Threaded Studs
Dimensions:	259 x 575 x 33.5 mm (10.1 x 22.6 x 1.3 in)
Weight:	1.9 kg (4.2 lbs)
ENVIRONMENT:
IP Rating:	IP 67
Operating Temperature:	-25° to +70°C (-13° to +158°F)
