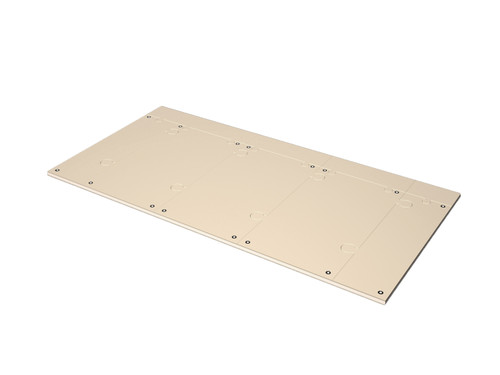

Keonn AdvanMat-300 Modular RFID Floor Mat | ADMT-P-A30-P13US-300/ADMT-P-A30-P13EU-300

Keonn AdvanMat-300 Modular RFID Floor Mat | Antenna Module

SKU:: ADMT-P-A30-P13US-300
UPC:
Product Type:: Antenna
ELECTRICAL:
Operating Frequency:: FCC (902-928 MHz), ETSI (865-868 MHz)
Max Read Distance:: Up to 3 m (9.8 ft)
MECHANICAL:
Dimensions:: 600 x 300 x 16 mm (23.6 x 11.8 x 0.6 in)
Weight:: 1.6 kg (3.5 lbs)
IP Rating:: Not Published
Operating Temperature:: -20°C to +55°C (-4°F to +131°F)
Polarization:: Circular
Gain:: 6 dBi
Beamwidth:: 40° / 90°
Connector Type:: SMA Female
Cable:: Included
Mounting Options:: Floor (Flush Mount)
key-feature:: Load Capacity: Rated to withstand 500 kg
key-feature:: Detection Range: Up to 3 m (9.8 ft) vertical read distance
key-feature:: Modular Design: Combine modules for custom widths
blog-post-widget-tags:: Passive UHF RFID,Readers & Antennas,RFID Equipment

To close of the right side of this modular antenna, see the Right Ending Module.

To close of the left side of this modular antenna, see the Left Ending Module.

To precisely extend the antenna footprint, see the 15 cm Separation Module.

To broadly extend the antenna footprint, see the 30 cm Separation Module.

View Full Description View Items Frequently Bought Together

Current Stock:

Save to List

Specs

Description

Keonn AdvanMat-300 Modular RFID Floor Mat | Antenna Module

Track people and products passing through doorways, corridors, and store entrances without visible hardware. The Keonn AdvanMat-300 Modular RFID Floor Mat embeds high-performance UHF RFID antennas inside a durable floor mat rated to withstand 500 kg, creating an invisible detection zone right at ground level. Each antenna module features circular polarization with a curtain-shaped beam pattern (40° x 90° beamwidth), delivering up to 3 m (9.8 ft) of vertical detection range, ideal for reading RFID-tagged items carried by people walking overhead.

The modular design lets you combine antenna modules, separation modules, and ending modules to match the exact width of any entrance or corridor. Simply drill the modules to the floor and cover them with any non-metallic flooring material for a completely concealed installation. Pair the AdvanMat-300 with a Keonn AdvanGuard alarm unit for a complete RFID loss prevention system that stays entirely hidden from customers.

Configuration Options

AdvanSafe-300
Product	Function	Build Requirements
Keonn AdvanMat-300 Modular RFID Floor Mat \| Antenna Module	Core Antenna Unit	Required Central Unit
Keonn AdvanMat-300 Modular RFID Floor Mat \| Right Ending Module	Completes Right Side of Antenna	One Unit Required
Keonn AdvanMat-300 Modular RFID Floor Mat \| Left Ending Module	Completes Left Side of Antenna	One Unit Required
Keonn AdvanMat-300 Modular RFID Floor Mat \| 15 cm Separation Module	Extends Antenna Coverage by 15 cm (5.9 in)	Up to Two Total Separation Modules Per Antenna Module
Keonn AdvanMat-300 Modular RFID Floor Mat \| 30 cm Separation Module	Extends Antenna Coverage by 30 cm (11.8 in)	Up to Two Total Separation Modules Per Antenna Module

Data Sheet — Keonn AdvanMat-300 Modular RFID Floor Mat

Get expert help selecting the right reader antenna? Check out our antenna guide or chat with a specialist.

What's included?

Keonn AdvanMat-300 Modular RFID Floor Mat | Antenna Module
Mounting Hardware

Why buy this antenna?

The AdvanMat-300 gives you a completely invisible RFID antenna system that hides beneath your existing flooring, eliminating visible hardware at entrances while still delivering up to 3 m of vertical detection range. Its modular design lets you combine modules to cover any entrance width, and its 500 kg load rating means it handles foot traffic without any concerns.

Features

Antenna Specs: Circular polarization; 6 dBi gain; 40° x 90° beamwidth; SMA female connectors
Detection Range: Up to 3 m (9.8 ft) vertical read distance from floor level
Load Capacity: Rated to withstand 500 kg of weight; designed for pedestrian traffic
Modular Design: Combine antenna, separation, and ending modules for custom widths
Concealed Installation: Mounts flush to floor; cover with any non-metallic flooring material
Antenna Module Size: 600 x 300 mm (23.6 x 11.8 in); height: 16 mm (0.6 in)
Frequency Support: EU version 865-868 MHz (ETSI); US version 902-928 MHz (FCC)
Operating Range: -20°C to +55°C (-4°F to +131°F)
Ideal For: Loss prevention systems, people tracking at exhibitions, and item tracking at doorways and corridors

Recommended Accessories

The following accessories are available for the Keonn AdvanMat-300 Modular RFID Floor Mat.

Shop Now

Looking to order Keonn AdvanMat-300 accessories not listed online? Get in touch to place your order.

Product Type:	Antenna
Operating Frequency:	FCC (902-928 MHz), ETSI (865-868 MHz)
Max Read Distance:	Up to 3 m (9.8 ft)
Dimensions:	600 x 300 x 16 mm (23.6 x 11.8 x 0.6 in)
Weight:	1.6 kg (3.5 lbs)
IP Rating:	Not Published
Operating Temperature:	-20°C to +55°C (-4°F to +131°F)
Polarization:	Circular
Gain:	6 dBi
Beamwidth:	40° / 90°
Connector Type:	SMA Female
Cable:	Included
Mounting Options:	Floor (Flush Mount)
