Keonn AdvanMux-16 UHF RFID Multiplexer (16-Port)

SKU:
ADMX-16-110

Keonn

UPC:
708088779237
Product Type:
Fixed Reader Accessory
ELECTRICAL:

Operating Frequency:
Global (860-950 MHz)
MECHANICAL:

Number of Ports:
16
RF Connectors:
1 input and 16 output SMA 50 ohm female connectors
Control and Power Connector:
2 input/output RJ45 connectors
Digital Inputs:
0 V/5 V TTL/3 V TTL or open collector. Note: Reader outputs must sink 2 mA (maximum).
Power Supply:
RJ45 IN connector pin 4 and/or pin 5: 5 V (-2 %) to 48 V (+5 %) (regulated on board)
Dimensions (With Enclosure):
145 x 75 x 25 mm (5.7 x 3 x 1 in)
Dimensions (Without Enclosure):
137 x 75 x 17 mm (5.4 x 3 x 0.7 in)
Weight (With Enclosure):
0.240 kg (0.529 lbs)
Weight (Without Enclosure):
0.107 kg (0.236 lbs)
ENVIRONMENT:

Operating Temperature:
-30 °C to 55 °C (-22 °F to 131 °F)
fbt-product:
2923
fbt-product:
1987
fbt-product:
1238
atc-product:
2543
atc-product:
1666
atc-product:
2958
atc-product:
2908
View Full Description View Items Frequently Bought Together
$299.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

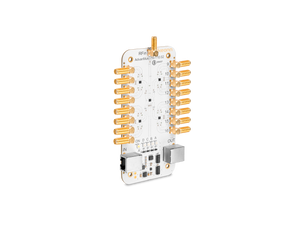

Keonn AdvanMux-16 UHF RFID Multiplexer (16-Port)

The Keonn AdvanMux-16 is a high-performance, sixteen-port multiplexer that expands the number of antennas by 16 per port. The AdvanMux-16 is connected to the I/O port of most reader models, and it is controlled by sending simple commands to the reader. This facilitates the control of AdvanMux-16 and its synchronization with the reader. Furthermore, any port of AdvanMux-16 can be selected at any time. The AdvanMux-16 can be controlled both by standard +5 V and open collector digital outputs. The input RF connector and the 16 output RF connectors are SMA Female on this device. Additionally, the AdvanMux-16 can be powered from +5 V DC to + 48 V DC, which can be obtained from a power supply or by the available voltage in some reader's I/O ports. The AdvanMux-16 is easy to connect to practically every RFID reader on the market, including Keonn AdvanReaders, Impinj, Sirit, Motorola, ThingMagic Mercury6, and others.

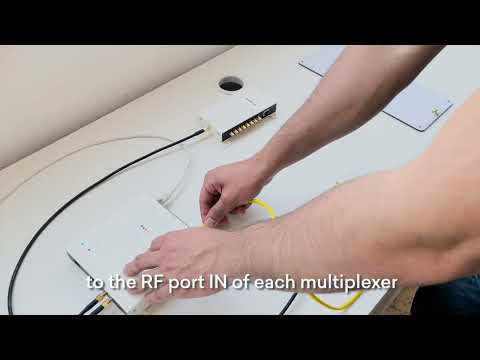

Connectivity: The AdvanMux-16 connects directly to the following Keonn readers through a conventional Ethernet cable: AdvanReader-70 and AdvanReader-160. For other reader models, a reader-specific cable adapter or the AdvanGPIO connection board can be ordered that connect the digital I/O port of the reader to one of the two RJ45 control ports of AdvanMux-16 multiplexer. The cable adapter can be easily extended to the required length using regular Ethernet 8-wire cables. Two RJ45 control connectors are available at each AdvanMux-16 so that one multiplexer can control and power another multiplexer by a simple Ethernet 8-wire cable connection.

Data Sheet  Keonn AdvanMux-16 UHF RFID Multiplexer (16-Port)


What's included?

  • Keonn AdvanMux-16 UHF RFID Multiplexer (16-Port)

Why buy this multiplexer?

The Keonn AdvanMux-16 is a high performance, 16-port UHF RFID multiplexer that expands the number of antennas connected to each port of an RFID reader by a factor of 16.

Features

  • High-performance.
  • Low insertion loss.
  • Very fast and easy connection.
  • Powered from + 5 V DC to +48 V DC.
  • Easy selection of ports by sending proper commands to the reader.
  • Reduces the cost of RFID applications with many antennas.
  • Compatible with most RFID reader models on the market.
  • Controlled both by standard +5 V and open collector digital outputs.
  • Expands the number of antennas connected to the same reader by a factor of 16.
  • 4 red LED diodes showing the digital-in status and 1 white LED showing the power on status.
  • Easy control of several multiplexers by interconnecting them with standard Ethernet cables.
  • Common applications: RFID systems that require more than 4 antennas, RFID systems in general, smart shelves, smart cabinets, smart surfaces, and portals.

Compatibility

The Keonn AdvanMux-16 UHF RFID Multiplexer is compatible with the following Keonn readers:

The AdvanMux-16 is also compatible with most RFID reader models on the market, including Impinj, Sirit, Motorola, ThingMagic Mercury6, and others.

Connection Requirements

  • Connection to the Keonn AdvanReader-70 and the Keonn AdvanReader-160: requires only a conventional Ethernet cable.
  • Connection to the Impinj R220, the Impinj R420, and the ThingMagic Mercury 6: requires a cable adapter (available upon request) and a conventional Ethernet cable (UTP cable).
  • Connection to other readers (compatibility with most readers): requires AdvanGPIO connection board (available upon request) and for some reader models PoE injector (available upon request).

Note: The Keonn AdvanMux-16 UHF RFID Multiplexer is not a replacement for the Impinj Antenna Hub. If you want to use this AdvanMux multiplexer with an Impinj reader, your software must send GPO commands to the Impinj reader in order to control the AdvanMux operation.

Information

Note: The Keonn AdvanGPIO RFID Connection Board is required when connecting this multiplexer to a reader that does not have a 5V output in the GPIO, and therefore, the multiplexer requires an external power supply. The Keonn Advan GPIO RFID Connection Board is optional when connecting this multiplexer to a reader with a 5V output in the GPIO.

Product Type: Fixed Reader Accessory
ELECTRICAL:
Operating Frequency: Global (860-950 MHz)
MECHANICAL:
Number of Ports: 16
RF Connectors: 1 input and 16 output SMA 50 ohm female connectors
Control and Power Connector: 2 input/output RJ45 connectors
Digital Inputs: 0 V/5 V TTL/3 V TTL or open collector. Note: Reader outputs must sink 2 mA (maximum).
Power Supply: RJ45 IN connector pin 4 and/or pin 5: 5 V (-2 %) to 48 V (+5 %) (regulated on board)
Dimensions (With Enclosure): 145 x 75 x 25 mm (5.7 x 3 x 1 in)
Dimensions (Without Enclosure): 137 x 75 x 17 mm (5.4 x 3 x 0.7 in)
Weight (With Enclosure): 0.240 kg (0.529 lbs)
Weight (Without Enclosure): 0.107 kg (0.236 lbs)
ENVIRONMENT:
Operating Temperature: -30 °C to 55 °C (-22 °F to 131 °F)
fbt-product: 2923
fbt-product: 1987
fbt-product: 1238
atc-product: 2543
atc-product: 1666
atc-product: 2958
atc-product: 2908

Customer Reviews
