Product Details

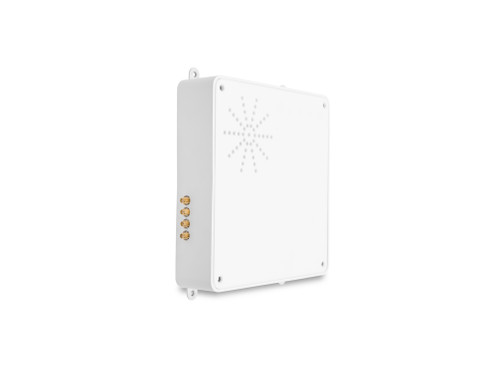

Keonn AdvanGuard RFID Alarm Unit
Reduce retail shrinkage without overhauling your existing setup. The Keonn AdvanGuard RFID Alarm Unit is a compact RFID UHF alarm system that connects to up to four external antennas, detects tagged items in the coverage zone, verifies whether those items have been paid for, and triggers acoustic and visual alarms when unpaid merchandise is detected. With four verification modes including EAS bit checking, EPC pattern matching, POS database lookup, and bulk theft detection, the AdvanGuard provides flexible, reliable RFID loss prevention with configurable filters to minimize false alarms.
Pairing the AdvanGuard with a Keonn AdvanMat RFID floor mat creates a complete loss prevention system for store entrances, backdoors, and corridors. The unit runs on Power over Ethernet for simple, single-cable installation and can optionally connect to AdvanCloud for real-time alarm notifications, theft analytics, and remote device monitoring. Whether you need to protect a retail store, library, or warehouse, the AdvanGuard delivers the data you need to understand and reduce theft.
View Data SheetGet expert help selecting the right reader. Check out our reader guide or chat with a specialist.
What's included?
- Keonn AdvanGuard Alarm Unit
- Mounting Hardware
Why buy this reader?
The AdvanGuard gives you a plug-and-play RFID alarm unit that connects to up to four external antennas via SMA, so you can build a loss prevention setup tailored to your space without being locked into a single form factor. With optional AdvanCloud integration, every alarm event becomes actionable data you can use to identify high-theft products and peak theft times.
Features
- Reader Specs: EPC Class1 Gen2; 865-868 MHz and 902-928 MHz; up to 31.5 dBm transmit power
- Antenna Connectivity: Four 50 Ohm SMA connectors for mono-static RFID antennas
- Verification Modes: EAS bit, EPC pattern, POS database lookup, and bulk theft detection
- Alarm Outputs: Four LEDs for visual alerts plus a 2 W loudspeaker for acoustic alarms
- False Alarm Reduction: Configurable software filters to minimize unnecessary alarm triggers
- Power & Connectivity: Power over Ethernet (PoE Type I and Type II); under 15 W max
- Cloud-Connected Analytics: Optional AdvanCloud for real-time alerts, theft data, and remote monitoring
- Compact Design: 220 x 220 x 50 mm (8.7 x 8.7 x 2.0 in); 1.53 kg (3.4 lbs); wall mountable
- Operating Range: -20°C to +55°C (-4°F to +131°F); aluminum and methacrylate housing
- Ideal For: Retail store loss prevention, library security, warehouse monitoring, and backdoor tracking
Recommended Accessories
The following accessories are available for the Keonn AdvanGuard RFID Alarm Unit.
Shop Now
Looking to order Keonn AdvanGuard accessories not listed online? Get in touch to place your order.
Product Specs
| Product Type: | Fixed Reader |
|---|---|
| Air Interface Protocol: | EPC Class1 Gen2 |
| Operating Frequency: | 865-868 MHz, 902-928 MHz |
| Transmit Power: | Up to 31.5 dBm (Maximum Power May Need to be Reduced to Meet Regulatory Limits) |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Not Published |
| Max Read Rate: | Not Published |
| Data Interface: | Ethernet |
| GPIO: | Not Published |
| Power Source: | PoE (Type I and Type II) |
| Antenna Ports: | 4 SMA Connectors (50 Ohm) |
| Dimensions: | 220 x 220 x 50 mm (8.7 x 8.7 x 2.0 in) With Wall Mount: 220 x 270 x 53 mm (8.7 x 10.6 x 2.1 in) |
| Weight: | 1.53 kg (3.4 lbs) With Wall Mount: 1.67 kg (3.7 lbs) |
| IP Rating: | Not Published |
| Operating Temperature: | -20°C to +55°C (-4°F to +131°F) |
| Host API: | Not Published |
| Demo Software: | Not Published |
