Avery Dennison Smartrac MiniWeb Global RFID Paper Tag | M730

SKU:
3008052

SMARTRAC

UPC:
ELECTRICAL:

Air Interface Protocol:
EPCglobal Gen2v2 (ISO 18000-63)
Operating Frequency:
Global (860-960 MHz)
IC Type:
Impinj M730
Memory:
EPC 128 Bits, User 0 Bits, TID 96 Bits
EPC Memory Content:
Unique, randomized number
Max Read Distance:
Testing recommended
Applicable Surface Materials:
Plastic, cardboard, glass, paper
ARC Approved Categories:
K, I, N, Q
MECHANICAL:

Tag Form Factor:
Paper tag
Tag Materials:
Mid-gloss paper
Attachment Method:
RA-5 adhesive
Dimensions:
45 x 18 mm (1.8 x 0.70 in)
Weight:
1 g
ENVIRONMENT:

Operating Temperature:
-40° to +85°C (-40° to +185°F)
fbt-product:
1642
fbt-product:
3693
fbt-product:
1659
atc-product:
3436
atc-product:
3570
atc-product:
2958
atc-product:
3872

Need a quantity to that is not listed?

Contact us for a quote or alternative product.

View Full Description
$0.05
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

*This product must be purchased at the Minimum Order Quantity (MOQ). The MOQ for this product is 100,000 tags. Contact us for details.*

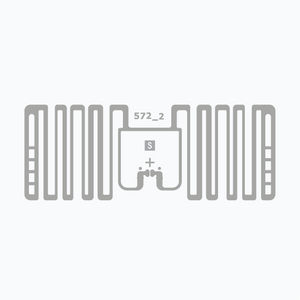

Avery Dennison Smartrac MiniWeb Global RFID Paper Tag | M730

Avery Dennison Smartrac MiniWeb Global RFID Paper Tags (M730) excel in minimum footprint and top performance on difficult-to-tag and low-detuning materials such as cardboard and plastic, and in other demanding, close-coupling environments. These tags feature 128 bit-EPC memory and a privacy mode, which enables loss prevention and protects consumer privacy by making a tag invisible to RAIN readers. Compatible with global GS1 UHF Gen2v2 standards, these tags are included on the approved inlay list by the ARC Program at the RFID Lab at Auburn University, and comply with categories K, I, N, and Q.

Data Sheet  Avery Dennison Smartrac MiniWeb Global RFID Paper Tag | M730

Data Sheet — Avery Dennison Smartrac MiniWeb Global RFID Paper Tag | M730

Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

Featuring the Impinj M730 IC, Smartrac MiniWeb RFID Paper Tags are the smallest retail-centric inlays currently available on the market that have passed ARC category K, I, N, and Q requirements for both the ETSI and the FCC frequency band. Category I indicates that this product is suitable for applications that require superior RF performance.

Features

  • Designed for global retail, industry, and supply-chain applications.
  • Suitable for applications that require superior RF performance.
  • Compliant with ISO 9001:2015 Quality Management and ISO 14001:2015 Environmental Management.
  • Impinj M730 IC tag chip.
  • Manufactured to the highest quality standard with significant ARC accreditation for quality as confirmed by Auburn University.
  • Common applications: home essentials, inventory and logistics, and supply chain management.
ELECTRICAL:
Air Interface Protocol: EPCglobal Gen2v2 (ISO 18000-63)
Operating Frequency: Global (860-960 MHz)
IC Type: Impinj M730
Memory: EPC 128 Bits, User 0 Bits, TID 96 Bits
EPC Memory Content: Unique, randomized number
Max Read Distance: Testing recommended
Applicable Surface Materials: Plastic, cardboard, glass, paper
ARC Approved Categories: K, I, N, Q
MECHANICAL:
Tag Form Factor: Paper tag
Tag Materials: Mid-gloss paper
Attachment Method: RA-5 adhesive
Dimensions: 45 x 18 mm (1.8 x 0.70 in)
Weight: 1 g
ENVIRONMENT:
Operating Temperature: -40° to +85°C (-40° to +185°F)
fbt-product: 1642
fbt-product: 3693
fbt-product: 1659
atc-product: 3436
atc-product: 3570
atc-product: 2958
atc-product: 3872
