Description
*Subject to availability. HID, a worldwide leader in trusted identity solutions, acquired Omni-ID and this product code will soon be discontinued. Visit HID IQ OM LR600 MR6-P UHF RFID Tag for a recommended replacement product.*

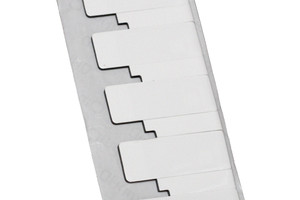

Omni-ID Flex 600 RFID Tag (Monza 4QT)
Omni-ID Flex 600 is a low profile, small form factor RFID tag designed specifically for attachment to office equipment. With its superior RF performance, this tag excels in portal applications expanding the read range to up to 9 meters. In addition, the Flex 600 tag is well suited to indoor applications where a low cost option is needed.
Data Sheet — Omni-ID Flex 600 RFID Tag (Monza 4QT)
Need help selecting the right tag? Check out our tag guide.
Why buy this tag?
With a small footprint and consistent RF performance, the Omni-ID Flex 600 RFID Tag is ideally suited to applications such as office equipment, light outdoor use and RTI, and portals.
Features
- Flexible.
- Highly cost effective.
- Small low profile form factors.
- More rugged than on-metal labels.
- Ideal solution for office equipment and portal setups.
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz) |
| IC Type: | Impinj Monza 4QT |
| Memory: | EPC 128 bits, User 512 bits, TID 48 bits |
| EPC Memory Content: | Unique, randomized number |
| Max Read Distance (Fixed Reader): | Up to 6 m (19.7 ft) - On metal, Up to 3 m (9.8 ft) - Off metal |
| Max Read Distance (Handheld Reader): | Up to 3 m (9.8 ft) - On metal, Up to 1.5 m (4.9 ft) - Off metal |
| Applicable Surface Materials: | Optimized for metal |
| MECHANICAL: | |
| Tag Form Factor: | Label tag |
| Tag Materials: | White synthetic label |
| Attachment Method: | Film adhesive |
| Dimensions: | 55.8 x 20 x 2.5 mm (2.20 x 0.79 x 0.1 in) |
| Weight: | 1.1 g |
| ENVIRONMENT: | |
| Operating Temperature: | –40 ° to +85 °C (–40 ° to +185 °F) |
