Zebra Technologies

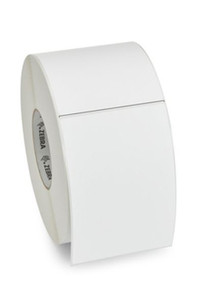

Zebra RFID Label (4"x 6") - for the Zebra R110Xi4, ZE500R, ZT400R, & ZT600R Series RFID Printers

SKU:
10026645
$227.00
ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63)
Operating Frequency:
Global (865-928 MHz)
IC Type:
NXP UCODE 8
Memory:
EPC 128 Bits, TID 96 Bits, User 0 Bits
EPC Memory Content:
Not guaranteed unique
Max Read Distance:
Up to 20 m (65.6 ft)- frequency and surface dependent
Applicable Surface Materials:
Non-metallic surfaces including plastic, cardboard, glass, PVC, and rubber
MECHANICAL:

Tag Form Factor:
Label tag
Tag Materials:
Z-Perform 1500T
Attachment Method:
Permanent adhesive
Dimensions:
101.6 x 152.4 mm (4 x 6 in)
Weight:
2.8 g
ENVIRONMENT:

Operating Temperature:
Not published
fbt-product:
2354
fbt-product:
1365
fbt-product:
3475
atc-product:
2947
atc-product:
1665
atc-product:
3733
atc-product:
2958

Product is reaching end-of-life. Contact us for a recommended replacement product.

View full description

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

*Subject to availability. This product is reaching end-of-life and will soon be discontinued. Contact us for a recommended replacement product.*

Zebra RFID Label (4"x 6") - for the Zebra R110Xi4, ZE500R, ZT400R, & ZT600R Series RFID Printers

Offering an economical choice for 4" wide labeling applications, these 4"x 6" blank paper labels come standard with the Zebra ZBR4000 inlay and NXP UCODE 8 integrated circuit.

Data Sheet  Zebra RFID Label (4"x 6") - for the Zebra R110Xi4, ZE500R, ZT400R, & ZT600R Series RFID Printers


Need help selecting the right tag? Check out our tag guide.

Why buy this tag?

Designed specifically for customers in need of blank labels for "at home" printing, these 4"x 6" labels perform well when placed on or near challenging materials such as pallets and freights.

Features

  • Thermal transfer RFID label with permanent adhesive.
  • Z-Perform 1500T material.
  • Optimized to be read from nearly any angle.
  • Performs well when placed on or near challenging materials (i.e, pallets, freight).
  • Best in class read accuracy with overhead readers like Zebra ATR7000.
  • 3" ID, 8" OD.
  • Pairs well Zebra's 6000 wax or 3200 wax/resin ribbon.
  • Typical applications include labeling of case, pallet, freight, and assets.

Compatibility

  • Zebra R110Xi4 Series RFID Printers
  • Zebra ZE500R Series RFID Printers
  • Zebra ZT410 Series RFID Printers
  • Zebra ZT420 Series RFID Printers
  • Zebra ZT610R Series RFID Printers
  • Zebra ZT620R Series RFID Printers

Product Details

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2v2 (ISO/IEC 18000-63)
Operating Frequency:
Global (865-928 MHz)
IC Type:
NXP UCODE 8
Memory:
EPC 128 Bits, TID 96 Bits, User 0 Bits
EPC Memory Content:
Not guaranteed unique
Max Read Distance:
Up to 20 m (65.6 ft)- frequency and surface dependent
Applicable Surface Materials:
Non-metallic surfaces including plastic, cardboard, glass, PVC, and rubber
MECHANICAL:

Tag Form Factor:
Label tag
Tag Materials:
Z-Perform 1500T
Attachment Method:
Permanent adhesive
Dimensions:
101.6 x 152.4 mm (4 x 6 in)
Weight:
2.8 g
ENVIRONMENT:

Operating Temperature:
Not published
