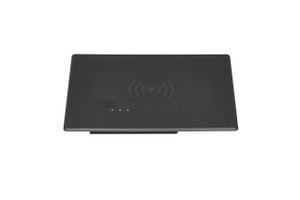

Zebra FXP20 Point of Sale Fixed RFID Reader

SKU:
FXP20042-404031-US

Zebra

UPC:
Product Type:
Fixed Reader
ELECTRICAL:

Air Interface Protocol:
ISO 18000-63 (EPC Class 1 Gen 2 V2)
Operating Frequency:
FCC (902-928 MHz)
Transmit Power:
-10 to 27 dBm
Max Receive Sensitivity:
-78 dBm
Max Read Distance:
Not Published
Max Read Rate:
Not Published
Data Interface:
USB Host Type-B
GPIO:
1 Input, 1 Output
Power Source:
12V DC, 2A Included Power Supply
MECHANICAL:

Antenna Ports:
3 External SMA Female Antenna Ports (Connects to SMA Male), Integrated Circularly Polarized Antenna
Dimensions:
273.05 x 184.15 x 50.8 mm (10.75 x 7.25 x 2 in)
Weight:
0.44 kg (0.97 lbs)
ENVIRONMENT:

IP Rating:
Not Published
Operating Temperature:
-20° to +55° C (-4° to +131° F)
APPLICATION INTERFACE:

Host API:
Not Published
Demo Software:
123RFID
fbt-product:
4978
fbt-product:
4964
fbt-product:
1238
atc-product:
4962
atc-product:
1665
atc-product:
2958
View Full Description View Items Frequently Bought Together
$895.00
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Zebra FXP20 Point of Sale Fixed RFID Reader

The Zebra FXP20 Point of Sale Fixed RFID Reader is a fixed RFID reader designed specifically for retail environments. The FXP20 incorporates both an antenna and a reader into one compact, consolidated device that is easy to deploy and configure at the point of sale. Adjustable visual and auditory signals provide instant feedback for successful scans, making it ideal for both staffed checkouts and self-checkouts, as well as inventory control and loss detection for retail operations. The FXP20 functions as a simple pad reader on any available work surface, while an included, optional adapter plate enables the unit to sit flush within a flat counter. The FXP20 integrates quickly and easily into checkout counters and other retail control points. The FXP20 is equipped with 3 external antenna ports, enabling a single FXP20 to read across multiple checkout stations through external antennas. After connecting its USB cable to the existing point-of-sale system, Zebra’s RFID tools, APIs and SDKs help walk users through any necessary configuration steps with easy-to-understand menus and built-in tutorials.

Configuration Options

Additional configuration options are available to meet your needs. Contact us today for more information.

Data Sheet — Zebra FXP20 Point of Sale Fixed RFID Reader

Data Sheet — Zebra FXP20 Point of Sale Fixed RFID Reader

Need help selecting the right reader? Check out our reader guide.

What's included?

Why buy this reader?

The Zebra FXP20 is a compact, all-in-one RFID solution that integrates easily with pre-existing point of sale systems. With features such as LED indicators, adjustable buzzer, and built-in tutorials, the FXP20 is ideal for both staffed checkouts and self-checkouts

Features

  • Compact, all-in-one point of sale RFID solution.
  • Filters out stray tag reads for an accurate checkout experience.
  • Adapts easily to a variety of retail workflows.
  • Included adapter plate enables the reader to sit flush within a flat counter.
  • Universal POS interface supports both Linux and Windows environments.
  • Zebra's RFID tools, APIs and SDKs help walk users through configuration.
  • Ideal for staffed checkout, self-checkout, inventory control, and loss detection.

Zebra OneCare Support with Comprehensive Coverage

Zebra OneCare Essential delivers the fully featured comprehensive coverage you need to maximize uptime and value of your Zebra device. This service sets the industry bar for service and support, with features that include coverage for accidental damage and normal wear and tear, technical support during your local business hours, access to software updates, and a 3-day turnaround time on repairs.

NOTE: This service is available for purchase within 30 days of your equipment purchase. Purchase of any Zebra OneCare Support Service voids the included standard one-year warranty, resulting in a coverage of three (3) years total. Contact us today for more detailed information.

Zebra OneCare Support with Comprehensive Coverage

Product Type: Fixed Reader
ELECTRICAL:
Air Interface Protocol: ISO 18000-63 (EPC Class 1 Gen 2 V2)
Operating Frequency: FCC (902-928 MHz)
Transmit Power: -10 to 27 dBm
Max Receive Sensitivity: -78 dBm
Max Read Distance: Not Published
Max Read Rate: Not Published
Data Interface: USB Host Type-B
GPIO: 1 Input, 1 Output
Power Source: 12V DC, 2A Included Power Supply
MECHANICAL:
Antenna Ports: 3 External SMA Female Antenna Ports (Connects to SMA Male), Integrated Circularly Polarized Antenna
Dimensions: 273.05 x 184.15 x 50.8 mm (10.75 x 7.25 x 2 in)
Weight: 0.44 kg (0.97 lbs)
ENVIRONMENT:
IP Rating: Not Published
Operating Temperature: -20° to +55° C (-4° to +131° F)
APPLICATION INTERFACE:
Host API: Not Published
Demo Software: 123RFID
