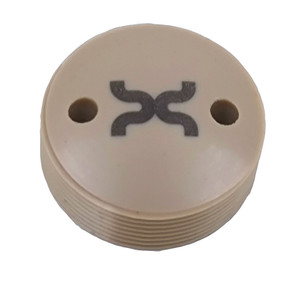

Xerafy Xplorer Screw RFID Tag | NXP UCODE 9
When you need to track and manage metal assets in the harshest industrial environments, traditional RFID tags simply can't survive the extreme conditions. The Xerafy XPLORER Screw RFID tag is specifically engineered to be embedded directly into metal surfaces, delivering superior read performance where other tags fail. This rugged industrial RFID tag withstands temperatures up to 220°C (428°F), pressures up to 22,000 psi (150 MPa), and maintains IP68/IP69K protection against water, dust, and chemical exposure.
Designed for permanent installation with a simple screw-in mounting system, the XPLORER Screw provides up to 5 m (16.4 ft) read range when embedded in metal - making it ideal for tracking critical assets in oil and gas, manufacturing, construction, and offshore applications. With 50-year data retention and EPC Class 1 Gen 2 compatibility, this metal-mount RFID tag ensures reliable asset identification and traceability throughout the entire lifecycle of your equipment.
Data Sheet — Xerafy Xplorer Screw RFID Tag | NXP UCODE 9
Get expert help selecting the right tag. Check out our tag guide or chat with a specialist.
Why buy this tag?
The XPLORER Screw stands apart as the only RFID tag designed specifically for permanent embedding in metal assets, delivering exceptional 5-meter read range where traditional tags fail completely. Its unique combination of extreme temperature tolerance up to 220°C and 22,000 psi pressure resistance makes it the definitive solution for tracking critical equipment in the most demanding industrial environments.
Features
- RFID Specifications: EPC Class 1 Gen 2, 902-928 MHz (US)/865-868 MHz (EU)
- Embeddable Design: Specifically engineered for permanent installation in metal surfaces
- Extended Read Range: Up to 5 m (16.4 ft) fixed reader, 3 m (9.8 ft) handheld
- Extreme Temperature Resistance: Operational -40°C to +85°C (-40°F to +185°F), survival to +220°C (+428°F)
- High Pressure Rating: Withstands up to 22,000 psi (150 MPa) liquid pressure
- Rugged Protection: IP68/IP69K waterproof and dust-tight with shock resistance
- Screw-in Installation: Easy mounting with M24 x 1 mm threading system
- Compact Dimensions: ø 24 x 10.01 mm (ø 0.94 x 0.39 in), weight 6.60 g (0.23 oz)
- Chemical Resistance: Tested against sulfuric acid and sodium hydroxide solutions
- Long Data Retention: Up to 50 years chip memory retention under normal conditions
- Industry Compliance: Multiple certifications including ATEX, RoHS, CE, FCC, and ISO standards
- Ideal For: Workover rigs, OCTG tubulars, offshore wind farms, manufacturing autoclave, construction equipment
| Product Type: | Tag |
|---|---|
| ELECTRICAL: | |
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| IC Type: | NXP UCODE 9 |
| Memory: | EPC 96 bits, User 0 bits, TID 96 bits |
| EPC Memory Content: | Unique, Synchronized |
| Max Read Distance - Handheld: | Up to 9.84 ft (3 m) |
| Max Read Distance - Fixed: | Up to 16.40 ft (5 m) |
| Applicable Surface Materials: | Metallic Surfaces |
| MECHANICAL: | |
| Tag Form Factor: | Hard Tag |
| Tag Materials: | High Performance Engineered Polymer |
| Attachment Method: | Snap In, Embedded |
| Dimensions: | ø 24 x 10.01 mm (ø 0.94 x 0.39 in) |
| Weight: | 6.60 g |
| ENVIRONMENT: | |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
