Product Details
*This product is reaching end-of-life and will soon be discontinued. Please contact us for a recommended replacement product.*

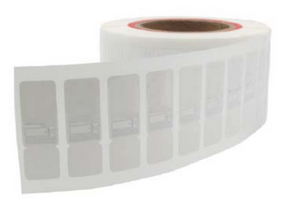

Xerafy Metal Skin Platinum 60 Flag RFID Label | NXP UCODE 8
Xerafy's Metal Skin Platinum RFID Labels offer the best size-to-performance ratio in the Metal Skin series. The Metal Skin Platinum 60 Flag is made of a thin, durable material that is optimized for on-demand printing. The combination of flexibility and industrial adhesive enables the Metal Skin Platinum to securely and easily bond to a wide variety of surfaces. The Metal Skin Platinum 60 Flag supports RF Identification, and can be read from up to 7 m (23 ft) away while on liquid-filled containers. Equipped with the NXP UCODE 8 IC, these labels have 128 bits of EPC memory and 96 bits of TID memory. With an IP 68 rating, this RFID label is waterproof and dustproof.
View Data SheetNeed help selecting the right tag? Check out our tag guide.
Why buy this tag?
The Xerafy Metal Skin Platinum 60 Flag RFID Label provides the longest read range on liquid-filled containers out of all Metal Skin Platinum RFID labels. The Metal Skin Platinum 60 Flag is ideal for cosmetics, wine bottles, and pharmaceutical containers.
View Xerafy Comparison GuideFeatures
- Superior performance on liquid-filled containers.
- Flag structure enables easy attachment in challenging environments.
- Flexible label can be applied to curved surfaces.
- Printable face for human readability.
- Waterproof, IP 68 rated.
- Industrial adhesive enables easy mounting to liquid-filled containers.
- Common applications: liquid-filled container management, cosmetics, wine management, and pharmaceutical.
Printer Compatibility
- SATO CL4NX Series Thermal UHF RFID Printers
- SATO CL4NX Plus Series Thermal UHF RFID Printers
- Zebra ZT410 RFID Printers
- Zebra ZT411 RFID Printers
- Zebra ZT421 RFID Printers
- TSC Printronix T6000e UHF RFID Industrial Printers | 4-Inch Print Width
- TSC Printronix T6000e UHF RFID Industrial Printers | 6-Inch Print Width
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) |
| Operating Frequency: | Global (860-960 MHz) |
| IC Type: | NXP UCODE 8 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, Synchronized |
| Max Read Distance - On Liquid-Filled Containers: | Up to 7 m (22.97 ft) |
| Applicable Surface Materials: | Liquid-Filled Containers |
| Tag Form Factor: | Label Tag |
| Tag Materials: | White Thermal Transfer Face Stock |
| Recommended Ribbon: | Not Published |
| Attachment Method: | Industrial Adhesive |
| Dimensions: | 58.5 x 21 x 1 mm (2.30 x 0.83 x 0.04 in) |
| Weight: | 0.5 g |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
