Vulcan RFID™ Race Timing Antenna Kit- 15 ft Cable

SKU:
VR-RTAK-FCC-15

Vulcan RFID™

UPC:
Product Type:
Antenna
Antenna Specifications:

ELECTRICAL:

Operating Frequency:
FCC (902-928 MHz), Global (865-960 MHz)
Polarization:
Right hand circular
Gain (FCC):
9.0 dBic
Gain (Global):
8.0 dBic
Max Read Distance:
Not published
Elevation Beamwidth (FCC):
63°
Elevation Beamwidth (Global):
65°
Azimuth Beamwidth (FCC):
63°
Azimuth Beamwidth (Global):
65°
MECHANICAL:

Connector Type:
RP-TNC female (connects to RP-TNC male)
Cable:
4.57 m (15 ft) Antenna Cable (LMR-195, RP-TNC Male to RP-TNC Male)
Mounting:
4 threaded stud
Dimensions:
305 x 305 x 25 mm (12 x 12 x 0.98 in)
Weight:
1.2 kg (2.6 lbs)
ENVIRONMENT:

IP Rating:
IP 67
Operating Temperature:
-55° to +71°C (-67° to +159.8°F)
Tripod Specifications:

Adjustable Height Range:
1803 mm (71 in )
Tube Diameter:
0.03 mm (1.38 in)
Leg Diamater:
0.03 mm (1.38 in)
Base Spread:
0-812.8 mm (0-32 in)
Material:
Steel Construction with Nylon Clutch and Base
Color:
Black
Weight Capacity:
100 lbs
fbt-product:
1316
fbt-product:
1665
fbt-product:
1711
atc-product:
2263
atc-product:
1924
atc-product:
2958
atc-product:
1701
View Full Description View Items Frequently Bought Together
MSRP: $299.00
$264.00
(You save $35.00 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

  • Choose Options
Specs

Description

Vulcan RFID™ Race Timing Antenna Kit - 15 ft

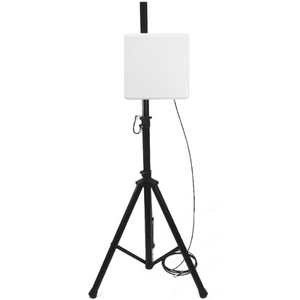

The Vulcan RFID™ Race Timing Antenna Kit comes with everything you need to set up a panel antenna on race day. A tripod, high-gain antenna, cable, and mounting bracket come in this kit helping to simplify your pre-race planning and setup.

Need help selecting the right antenna? Check out our antenna guide.

What's included?

  • One high-gain circularly polarized panel antenna
  • One rugged mounting bracket
  • 15 foot antenna cable (LMR-195, RP-TNC Male to RP-TNC Male)
  • Heavy duty adjustable tripod

Why buy this race timing kit?

The Vulcan RFID™ Race Timing Antenna Kit is simple to set-up giving race directors a smoother race day experience and make sure nothing is overlooked by giving race directors an entire antenna setup all in one package.

Features

  • High-gain antenna for accurate reads.
  • Steel Construction with Nylon Clutch and Base.
  • Tripod color: black.
  • Tripod weight capacity: 100 lbs.
  • Adjustable tripod height range: 71 inches.
  • Tripod base spread: 0-32 inches.
  • Tripod tube diameter: 1.38 inches.
  • Tripod leg diameter: 1.38 inches.
Product Type: Antenna
Antenna Specifications:
ELECTRICAL:
Operating Frequency: FCC (902-928 MHz), Global (865-960 MHz)
Polarization: Right hand circular
Gain (FCC): 9.0 dBic
Gain (Global): 8.0 dBic
Max Read Distance: Not published
Elevation Beamwidth (FCC): 63°
Elevation Beamwidth (Global): 65°
Azimuth Beamwidth (FCC): 63°
Azimuth Beamwidth (Global): 65°
MECHANICAL:
Connector Type: RP-TNC female (connects to RP-TNC male)
Cable: 4.57 m (15 ft) Antenna Cable (LMR-195, RP-TNC Male to RP-TNC Male)
Mounting: 4 threaded stud
Dimensions: 305 x 305 x 25 mm (12 x 12 x 0.98 in)
Weight: 1.2 kg (2.6 lbs)
ENVIRONMENT:
IP Rating: IP 67
Operating Temperature: -55° to +71°C (-67° to +159.8°F)
Tripod Specifications:
Adjustable Height Range: 1803 mm (71 in )
Tube Diameter: 0.03 mm (1.38 in)
Leg Diamater: 0.03 mm (1.38 in)
Base Spread: 0-812.8 mm (0-32 in)
Material: Steel Construction with Nylon Clutch and Base
Color: Black
Weight Capacity: 100 lbs
fbt-product: 1316
fbt-product: 1665
fbt-product: 1711
atc-product: 2263
atc-product: 1924
atc-product: 2958
atc-product: 1701
