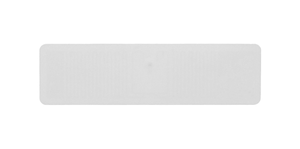

The Vulcan RFID Flame UHF RFID Label features the high-speed, efficient, and fast Impinj M830 IC designed to meet the needs of challenging RFID tagging applications. Combined with a small form factor and Impinj's Autotune V3, this label is ideal for operations that use apparel hang tags, cosmetics, furniture, and home goods. The Vulcan RFID Flame is the smaller counterpart to the Vulcan RFID Fire, but offers excellent performance, exhibiting an improved read range over its M730 predecessor and other labels of a similar size. Compared to an inlay, this label is outfitted with a polypropylene facestock, exhibiting heightened durability, extending tag longevity, and making it the optimal tag for retail, cosmetics, and staging.
| Tag Variations | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IC Type & Memory | Form Factor | Product Code | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Monza 4i EPC 256 Bits, User 480 Bits, TID 96 Bits |
Label | VUL-FLAME-M4I-LBLPP | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M730 EPC 128 Bits, TID 96 Bits |
Label | VUL-FLAME-M730-LBLPP | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| M830 EPC 128 Bits, TID 96 Bits |
Label | VUL-FLAME-M830-LBLPP | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Need help selecting the right tag? Check out our tag guide.
With a polypropylene facestock rather than paper, the Vulcan RFID Flame M830 UHF RFID Label exhibits a heighted durability allowing it to last longer. It has a small and efficient form factor, making it ideally suited for a variety of applications such as apparel hang tags, cosmetics tracking, and home goods tracking.
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | ISO 18000-6C |
| Operating Frequency: | Global (860–960 MHz) |
| IC Type: | Impinj M830 |
| Memory: | EPC 128 Bits, User 0 Bits, TID 96 Bits |
| EPC Memory Content: | Unique, Auto-Serialized |
| Max Read Distance: | 35 ft on Cardboard |
| Applicable Surface Materials: | Glass, Plastic, Wood, Cardboard |
| Tag Form Factor: | Label |
| Tag Materials: | Matte White Polypropylene |
| Recommended Ribbon: | Resin |
| Attachment Method: | Permanent Acrylic-Based Adhesive |
| Dimensions: | 47.50 x 13.38 x 0.21 mm (1.870 x 0.526 x 0.008 in) |
| Weight: | 1 g |
| Operating Temperature: | -40° to +85°C (-40° to +185°F) |
