Description

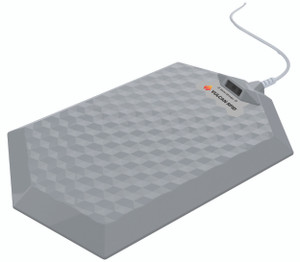

Vulcan RFID Electra USB Reader with 2D Imager
The Vulcan RFID Electra Reader is a high-accuracy UHF RFID and 2D barcode scanner designed for seamless workstation integration. Its defined read zone and dual-scan capability ensure fast, precise data capture every time, making it ideal for point-of-sale counters, hospital check-ins, library desks, and scan-and-go stations.
Its compact, flat design fits neatly into tight workspaces, and a single USB connection provides both power and data for effortless plug-and-play setup. Keyboard wedge emulation allows tag and barcode information to be automatically entered into any system without additional software.
The Electra is fully compatible with Vulcan RFID Read, Write, & Verify Software, ThingMagic’s Mercury API, and Universal Reader Assistant (URA), enabling rapid solution development and easy integration into existing systems. Its flexibility and precision make it a powerful workstation reader for asset management, retail operations, and high-volume data capture environments.
Note: Depending on order volume, the Vulcan RFID Electra can be designed with a custom faceplate, connector type, or color to align with your brand or application. Contact us for details.
Data Sheet — Vulcan RFID Electra USB Reader with 2D Imager
Quick Start Guide — Vulcan RFID Electra USB Reader with 2D Imager
Get expert help selecting the right reader. Check out our reader guide or chat with a specialist.
What's Included?
- Vulcan RFID Electra USB Reader with 2D Imager Unit
- 2 m USB Cable
- One-Year Standard Manufacturer Warranty
Why buy this reader?
The Vulcan RFID Electra is a versatile workstation reader that combines UHF RFID and 2D barcode scanning in a single, compact desktop device. Engineered for high-traffic environments, it delivers fast, accurate, dual-mode data capture right at the workstation. Its defined read zone, plug-and-play setup, and keyboard wedge emulation allow seamless integration into existing systems, turning any counter or desktop into an efficient, error-free data capture station.
Features
- All-in-One Workstation Reader: Integrated RFID desktop reader with barcode module
- Compact Desktop Design: Sits flat on desktops and counters to minimize obstruction
- Simple Connectivity: Communication and power via USB Type-A cable for HID keyboard or virtual COM port emulation
- Precise Read Zone: Built-in near-field antenna creates a defined read zone
- Effortless System Integration: Seamless integration with RFID solutions for effortless implementation
- Cross-Platform Compatibility: Compatible with Windows, Mac, and Linux
- Developer-Friendly API: Software development supported in C, .NET (C#), and Java
- Optimized for POS: Well-suited for point-of-sale applications
- Standard-Based Tag Reading: Converts the RFID tag through the GS1 standard label for checkout
- Versatile applications: Perfect for asset management, hospitals, uniform management, scan-and-go stations, and retail point of sales
Recommended Professional Services
At atlasRFIDstore, we offer a full range of professional services to ensure that your RFID hardware runs at it's optimal capacity. Designed specifically for RFID readers, the following professional services will reduce the amount of time it takes to get your reader ready for use.
| Product Type: | Fixed Reader |
|---|---|
| Air Interface Protocol: | EPCGlobal Gen2 (ISO 18000-6C) EPCGlobal Gen2 V2 (ISO 18000-63) - Transparent Mode |
| Operating Frequency: | FCC (902-928 MHz) |
| Transit Power: | 0 to 27 dBm in 0.5 dBm Steps |
| Max Receive Sensitivity: | Not Published |
| Max Read Distance: | Up to 0.49 m (1.6 ft) |
| Max Read Rate: | Not Published |
| Data Interface: | USB HID Keyboard, USB Serial CDC |
| GPIO: | Not Published |
| Power Source: | USB Cable (Included) |
| Image Sensor: | 640 * 480 CMOS |
| Sensor Resolution: | 3mil |
| Scan Angle: | Roll: 360°, Pitch: ±60°, Skew:±60º |
| Field of View: | Horizontal 42°, Vertical 31.6° |
| 1D Decode Capabilities: | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN128, RSS, ITF-14, ITF6, Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Plessey, MSI Plessey, Code 11,Code 93 |
| 2D Decode Capabilities: | PDF417, QR Code, Data Matrix, Micro QR |
| Minimum Symbol Contrast: | 25% |
| Antenna Ports: | None/Internal Antenna |
| Dimensions: | 270 x 175 x 15 mm (10.63 x 6.89 x 0.59 in) |
| Weight: | 0.45 kg (1 lb) |
| Color: | Grey |
| IP RATING: | Indoor Use |
| Operating Temperature: | -10° to +65°C (+14° to +149°F) |
| Host API: | C, .NET (C#), Java |
