Product Details
*This label is subject to variation based on IC type and availability. Please contact us for lead time and if you have specific IC requirements or questions.

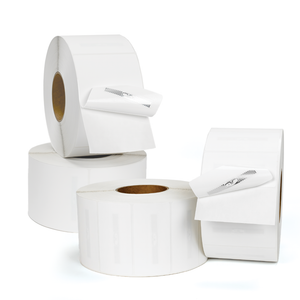

TSC 1.73" x 0.71" RFID Label - with ARC Certified Tageos EOS-241 Inlay | Case of 1 Roll - 4,500 Labels per Roll
The TSC 1.73" x 0.71" RFID Label is designed for retail and complies with ARC categories F, I, O, Q, W5, and W6. This label is equipped with the Tageos EOS-241 Inlay with either the NXP UCODE 9 or the Impinj M730 IC.
View Data Sheet*Data sheet includes retired ARC specs. Contact us for details.*
Why buy this tag?
The TSC 1.73" x 0.71" RFID Label is an affordable solution for RFID tagging in a retail environment. This tag complies with the Walmart RFID ARC specifications and feature an easy-to-use permanent adhesive.
Features
- Case of 1 roll, 4,500 labels per roll.
- Thermal transfer RFID label with permanent adhesive.
- 1.73" x 0.71" RFID label.
- Works on most non-metallic surfaces.
- 76.2 mm (3 in) core.
- ARC certified in categories F, I, O, Q, W5, and W6.
- Typical applications include retail, distribution centers, manufacturing, transportation, and logistics
Compatibility
- TSC Printronix T4000 UHF RFID Industrial Printers
- TSC Printronix T6000e UHF RFID Industrial Printers | 4-Inch Print Width
- TSC Printronix T5000 UHF RFID Industrial Printers
Need help selecting the right tag? Check out our tag guide.
Product Specs
| Product Type: | Tag |
|---|---|
| Air Interface Protocol: | EPCglobal UHF Class 1 Gen 2 (ISO/IEC 18000-6C) |
| Operating Frequency: | Global (865-928 MHz) |
| IC Type: | NXP UCODE 9 or Impinj M730 - Subject to Availability |
| Memory: | EPC 96/128 Bit, TID 96 Bit, User 0 Bit |
| EPC Memory Content: | Not Published |
| Max Read Distance: | Testing Recommended |
| Applicable Surface Materials: | Non-Metallic Surfaces |
| ARC Approved Categories: | F, I, O, Q, W5, W6 |
| Tag Form Factor: | Label Tag |
| Tag Materials: | Premium Thermal Transfer Stock |
| Recommended Ribbon: | TSC Printronix 8550-PWR Premium Wax-Resin Ribbon |
| Attachment Method: | Permanent Adhesive |
| Dimensions: | 44 x 18 mm (1.73 x 0.71 in) |
| Weight: | 0.5 g |
| Operating Temperature: | Not published |
| google-product-taxonomy: | Office Supplies > General Office Supplies > Labels & Tags |
