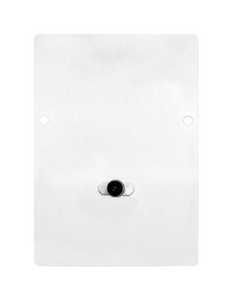

Laird 900 MHz Microsphere Antenna

SKU:
CAF95956

Laird

UPC:
Product Type:
Antenna
ELECTRICAL:

Operating Frequency:
Global (880-960 MHz)
Polarization:
Linear
Gain:
3 dBi
Max Read Distance:
Not published
Elevation Beamwidth:
60°
Azimuth Beamwidth:
360°
MECHANICAL:

Connector Type:
SMA female (connects to SMA male)
Cable:
Not included
Mounting:
Nylon screws included for mounting
Dimensions:
109 x 79 x 2.5 mm (4.29 x 2.79 x .98 in)
Weight:
0.05 kg (0.10 lbs)
ENVIRONMENT:

IP Rating:
Not published
Operating Temperature:
-40° to +70°C (-40° to +158°F)
fbt-product:
1316
fbt-product:
1665
fbt-product:
1238
atc-product:
2263
atc-product:
3288
atc-product:
2958
View Full Description View Items Frequently Bought Together
MSRP: $138.21
$113.00
(You save $25.21 )
Adding to cart… The item has been added

Need a Quote?

Frequently Bought Together

Please choose options for all selected products

Specs

Description

Laird 900 MHz MicroSphere Antenna

The Laird 900 MHz MicroSphere Antenna is a credit card sized linearly polarized RFID Antenna operating at 880-960 MHz for use in both the FCC and ETSI ranges. This antenna provides excellent gain at 3 dBil in a super small 3.1 x 4.3 inch package with a fixed SMA-Female Connector on the rear. Laird Technologies’ in-building wireless antennas are particularly applicable in environments where aesthetics and wide angle coverage are necessary for successful wireless deployment. Their surprisingly small size allow the antennas to be hidden almost anywhere, providing an invisible solution for most applications. The field pattern is toroidal, providing omni-directional coverage in any plane around the long axis of the antenna, and two lobes in any plane parallel to the long axis.

Data Sheet  Laird 900 MHz MicroSphere Antenna


What's included?

  • Laird 900 MHz MicroSphere Antenna Unit
  • Nylon Screws For Mounting

Why buy this antenna?

The Laird 900 MHz MicroSphere Antenna has an surprisingly small form factor, while providing omnidirectional coverage in any plane around the long axis.

Features

  • Field pattern is toroidal.
  • Suited for a variety of applications.
  • Small size allows it to be hidden almost anywhere.
  • Wide frequency range 880-960 MHz for FCC focused band.
  • 3 dBi Gain with Linear polarization.
  • Small size - can be hidden almost anywhere.
Product Type: Antenna
ELECTRICAL:
Operating Frequency: Global (880-960 MHz)
Polarization: Linear
Gain: 3 dBi
Max Read Distance: Not published
Elevation Beamwidth: 60°
Azimuth Beamwidth: 360°
MECHANICAL:
Connector Type: SMA female (connects to SMA male)
Cable: Not included
Mounting: Nylon screws included for mounting
Dimensions: 109 x 79 x 2.5 mm (4.29 x 2.79 x .98 in)
Weight: 0.05 kg (0.10 lbs)
ENVIRONMENT:
IP Rating: Not published
Operating Temperature: -40° to +70°C (-40° to +158°F)
