Kathrein Wide Range 30° RFID Antenna (FCC/ETSI)
Contact Us for Pricing
- UPC:
Kathrein | SKU: 52010087
Contact Us for Lead Time
All Sales Final
Accessories & Related Products
Key Features
- Length: 3.66 m (12 ft)
- Connectors: RP-TNC Male to N-Type Male
- Cable Type: 195 Series Coaxial
Key Features
- Length: 7.6 m (25 ft)
- Connectors: RP-TNC Male to N-Type Male
- Cable Type: 240 Series Coaxial
Key Features
- Length: 10.67 m (35 ft)
- Connectors: RP-TNC Male to N-Type Male
- Cable Type: 400 Series Coaxial
Key Features
- Diverse Form Factors: Wet inlays, wire tags, hard tags, etc.
- Includes Industry-Leading ICs: Monza R6-P, NXP UCODE 8, Impinj M730, M830
- Variety of Sizes: As small as 1.27 cm (0.5 in) up to 10.16 x 5.08 cm (4 x 2 in)
Product Details

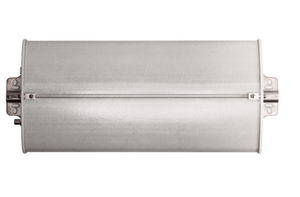

Kathrein Wide Range 30° RFID Antenna (FCC/ETSI)
The Kathrein Wide Range 30° RFID Antenna is equipped with a high gain and low axial ratio for optimum performance. This Wide Range 30° Antenna comes in both Linear and Circular polarized versions, making them ideal for logistics, vehicle identification (AVI), vehicle detection, industrial automation, and electronic article surveillance applications.
View US Data Sheet View EU Data Sheet View US Data Sheet View EU Data SheetNeed help selecting the right antenna? Check out our antenna guide.
What's included?
- Kathrein Wide Range 30° RFID Antenna Unit
Why buy this antenna?
The Kathrein Wide Range 30° RFID Antenna offers different far field half-power beam widths in the azimuth and elevation planes making it an ideal solution for portal applications, bulk and single tag applications, and toll collection applications.
Features
- Low axial ratio for optimum performance.
- High selection field.
- Compact design for ruggedized environmental applications.
- Suitable for bulk and single tag applications.
- High IP 65 degree of protection.
- Suitable for outdoor use.
Information
The circular ETSI Kathrein Wide Range 30° RFID Antenna is compatible for use in India with an operating frequency of 865-867 MHz.
Product Specs
| Product Type: | Antenna |
|---|---|
| Operating Frequency: | FCC (902-928 MHz), ETSI (865-868 MHz) |
| Additional Operating Frequency: | Circular Polarized Antenna, IN (865-867 MHz) |
| Polarization: | Linear or Circular |
| Gain: | 11.0 dBi (Linear), 8.0 dBic (Circular-FCC), 11.5 dBic (Circular-ETSI) |
| Max Read Distance: | Linear Polarized Up to 10 m (32.81 ft), Circular Polarized Up to 18 m (59.06 ft) |
| Elevation Beamwidth: | 30˚ |
| Azimuth Beamwidth: | 70˚ |
| Connector Type: | N-Type female (connects to N-Type male) |
| Cable: | Not Included |
| Mounting: | Not Included |
| Dimensions: | 557 x 270 x 58.5 mm (21.9 x 10.6 x 2.3 in) |
| Weight: | 3.7 kg (8.16 lbs) |
| IP Rating: | IP 65 |
| Operating Temperature: | -20˚C to 55˚C (-4˚F to 131˚F) |
