Kathrein

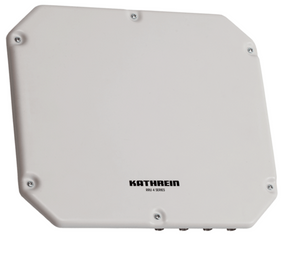

Kathrein RRU4 Series UHF RFID Reader

SKU:
52010181
$2,186.00
Minimum Purchase:
1 unit
Maximum Purchase:
7 units
ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
US (902-928 MHz), EU (865-868 Mhz)
Additional Operating Frequency:
IN (865-867 MHz)
Transmit Power:
+36 dBm (US), +33 dBm (EU)
Max Receive Power:
-80 dBm
Max Read Distance:
Up to 59.06 ft (18 m)
Max Read Rate:
Not Published
Data Interface:
Ethernet 10/100
GPIO:
4 Digital Inputs; 4 Digital Outputs
Power Source:
Power Adaptor and Cord
MECHANICAL:

Antenna Ports:
Four (4) RP-TNC female (connects to RP-TNC male)
Dimensions:
9.2 x 10.6 x 2.7 in (234 x 270 x 68 mm)
Weight:
6.17 lbs (2798.7 g)
ENVIRONMENT:

IP Rating:
IP 65
Operating Temperature:
-20° to +55° C
APPLICATION INTERFACE:

Host API:
.NET, Linux X86, AMD64, ARMv4T, ARMv7A, JAVA (Beta)
Demo Software:
ReaderStart

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Kathrein RRU4 Series UHF RFID Reader

The Kathrein RRU4 Series UHF RFID Reader is a unit with an Ethernet communication interface and © KRAI  for use in the frequency range from 865 to 868 MHz and 902 to 928 MHz for the EPC Gen2 standard (ISO 18000-6C). With the Linux running on the embedded PC based on the Q7 standard, powerful computing power is available. The user can set up and run his own complex applications. Thus, the device is ideal for applications with time-critical filters in high to very-high tag populations.

US Data Sheet  RRU4-ELC-U6


EU Data Sheet RRU4-ELC-E6


What's included?

  • Kathrein RRU4 Series UHF RFID Reader Unit

Note: A Power Supply is NOT included. If you need assistance sourcing a compatible Power Supply, please contact us.

Why buy this reader?

The Kathrein RRU4 Series UHF RFID Reader allows the user to set up and run his or her complex application with powerful computing power.

Features

  • Dense Reader Mode available.
  • Output power adjustable from 6 dBm up to 33 dBm in 0.25 dB steps.
  • Calibrated output power from 17 dBm up to 33 dBm (50 mW - 2 W).
  • © KRAI Interface.
  • Tag Phase - und RSSI - Function for efficient tag movement.
  • Suitable solution for industrial automation, logistics, security, toll collection, and vehicle detection applications.

What is Kathrein RFID Antenna Interface (© KRAI)?

The Kathrein © KRAI system includes proprietary Kathrein readers and antennas that allow for the use of up to 4 antennas simultaneously in any combination with a Kathrein © KRAI enabled RFID reader. Kathrein © KRAI Smart Shelf Antennas have two ports to allow for the chaining of antennas together. A maximum of 8 Smart Shelf Antennas can be cascaded at a single antenna port allowing for selective access to up to 32 individual antennas and the reading result to be linked to the antenna recognition and be output. This functionality is great for smart shelf deployments, or any application that requires a large number of antennas.

The phase control elements integrated into the Kathrein Wide Range 70° © KRAI Antenna enables static or dynamic adjustments of antenna characteristics. Due to this, four different polarizations can be selected: RHCP, LHCP, horizontal linear, and vertical linear. One can choose between static polarization and automatic switch-over. Using this combination, it is possible to automatically control a large number of extended functions in an entire RFID system.

NOTE: Kathrein Wide Range 70° Antennas cannot be cascaded. Kathrein © KRAI Antennas can be operated ONLY in conjunction with © KRAI enabled readers.

Information

The ETSI Kathrein RRU4 Series UHF RFID Reader is compatible for use in India with an operating frequency of 865-867 MHz.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
US (902-928 MHz), EU (865-868 Mhz)
Additional Operating Frequency:
IN (865-867 MHz)
Transmit Power:
+36 dBm (US), +33 dBm (EU)
Max Receive Power:
-80 dBm
Max Read Distance:
Up to 59.06 ft (18 m)
Max Read Rate:
Not Published
Data Interface:
Ethernet 10/100
GPIO:
4 Digital Inputs; 4 Digital Outputs
Power Source:
Power Adaptor and Cord
MECHANICAL:

Antenna Ports:
Four (4) RP-TNC female (connects to RP-TNC male)
Dimensions:
9.2 x 10.6 x 2.7 in (234 x 270 x 68 mm)
Weight:
6.17 lbs (2798.7 g)
ENVIRONMENT:

IP Rating:
IP 65
Operating Temperature:
-20° to +55° C
APPLICATION INTERFACE:

Host API:
.NET, Linux X86, AMD64, ARMv4T, ARMv7A, JAVA (Beta)
Demo Software:
ReaderStart
