Kathrein

Kathrein M-ARU Series Integrated UHF RFID Reader

SKU:
52010198 + IPJ-A2051-USA + 52010364

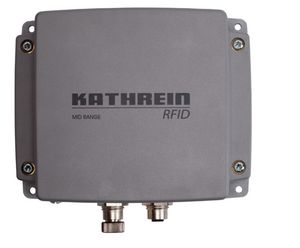

Kathrein M-ARU Series Integrated Reader | 52010198 + IPJ-A2051-USA + 52010364

Contact Us for Pricing

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
ETSI (865-868 MHz)
Transmit Power:
+24.25 dBm
Max Receive Sensitivity:
-60 dBm
Max Read Distance:
Up to 1.5 m (4.9 ft)
Max Read Rate:
Not Published
Data Interface:
Ethernet, 10/100, MBit/s, RS-232 115200 or 230400, 8N1
GPIO:
3 Inputs, 3 Outputs
Power Source (POE):
Mode A: Endspan
Power Source (External DC Power):
24 V DC Power Supply
MECHANICAL:

Antenna Ports:
Not published
Dimensions:
156 x 139.3 x 63 mm (6.1 x 5.5 x 2.5 in)
Weight:
1.1 kg (2.43 lbs)
ENVIRONMENT:

IP Rating:
IP 65
Operating Temperature:
-20° to +55° C (-4° to +131° F)
APPLICATION INTERFACE:

Host API:
.NET, Linux X86, AMD64, ARMv4T, ARMv7A, Java (Beta)
Demo Software:
ReaderStart

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Kathrein M-ARU Series Integrated UHF RFID Reader

The Kathrein M-ARU-ETH-E6 Series Integrated Reader is equipped with a highly integrated RFID UHF sensor based on the Kathrein Mid-Range Antenna Series and the Kathrein industrial reader platform. The device has a Power-over-Ethernet and a serial communication interface plus digital GPIOs (inputs/outputs). The supply voltage optionally can be served over Power-over-Ethernet or local. Both active and passive RFID transponders can be used with this device for reading and writing.

Data Sheet — M-ARU-ETH-E6


Need help selecting the right reader? Check out our reader guide.

What's included?

  • Kathrein M-ARU Series Integrated UHF RFID Reader Unit
  • Power Adaptor
  • Power Cord
  • Serial Com Connecting Cable if selected above,  4.92 ft (1.5 m)
  • PoE Connecting Cable if selected above, 4.92 ft (1.5 m)

Why buy this reader?

The Kathrein M-ARU Series Integrated UHF RFID Reader is a rugged, integrated reader/antenna used for applications such as forklift reading, industrial automation, and warehouse systems.

Features

  • Rugged, IP 65.
  • Dense Reader Mode.
  • Configurable emitted output power from 17 dBm up to 24.25 dBm.
  • Integrated Mid-Range 100° RFID antenna - 100°/100° circular.
  • Power over Ethernet.

Information

If connecting over PoE/Ethernet, the M-ARU Reader requires the Kathrein M-ARU Series Integrated Reader Connecting Cable (PoE), product number 52010209.

If connecting over Serial Com, the M-ARU Reader requires the Kathrein M-ARU Series Integrated Reader Connecting Cable (Serial Com), product number 52010189.

When using the inputs/outputs of  M-ARU, the Kathrein M-ARU Series Integrated Reader Connecting (Serial Com), product number 52010189, is required when using either PoE/Ethernet or Serial Com.

Product Details

ELECTRICAL:

Air Interface Protocol:
EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C)
Operating Frequency:
ETSI (865-868 MHz)
Transmit Power:
+24.25 dBm
Max Receive Sensitivity:
-60 dBm
Max Read Distance:
Up to 1.5 m (4.9 ft)
Max Read Rate:
Not Published
Data Interface:
Ethernet, 10/100, MBit/s, RS-232 115200 or 230400, 8N1
GPIO:
3 Inputs, 3 Outputs
Power Source (POE):
Mode A: Endspan
Power Source (External DC Power):
24 V DC Power Supply
MECHANICAL:

Antenna Ports:
Not published
Dimensions:
156 x 139.3 x 63 mm (6.1 x 5.5 x 2.5 in)
Weight:
1.1 kg (2.43 lbs)
ENVIRONMENT:

IP Rating:
IP 65
Operating Temperature:
-20° to +55° C (-4° to +131° F)
APPLICATION INTERFACE:

Host API:
.NET, Linux X86, AMD64, ARMv4T, ARMv7A, Java (Beta)
Demo Software:
ReaderStart
